Tractor · 1975Unverified

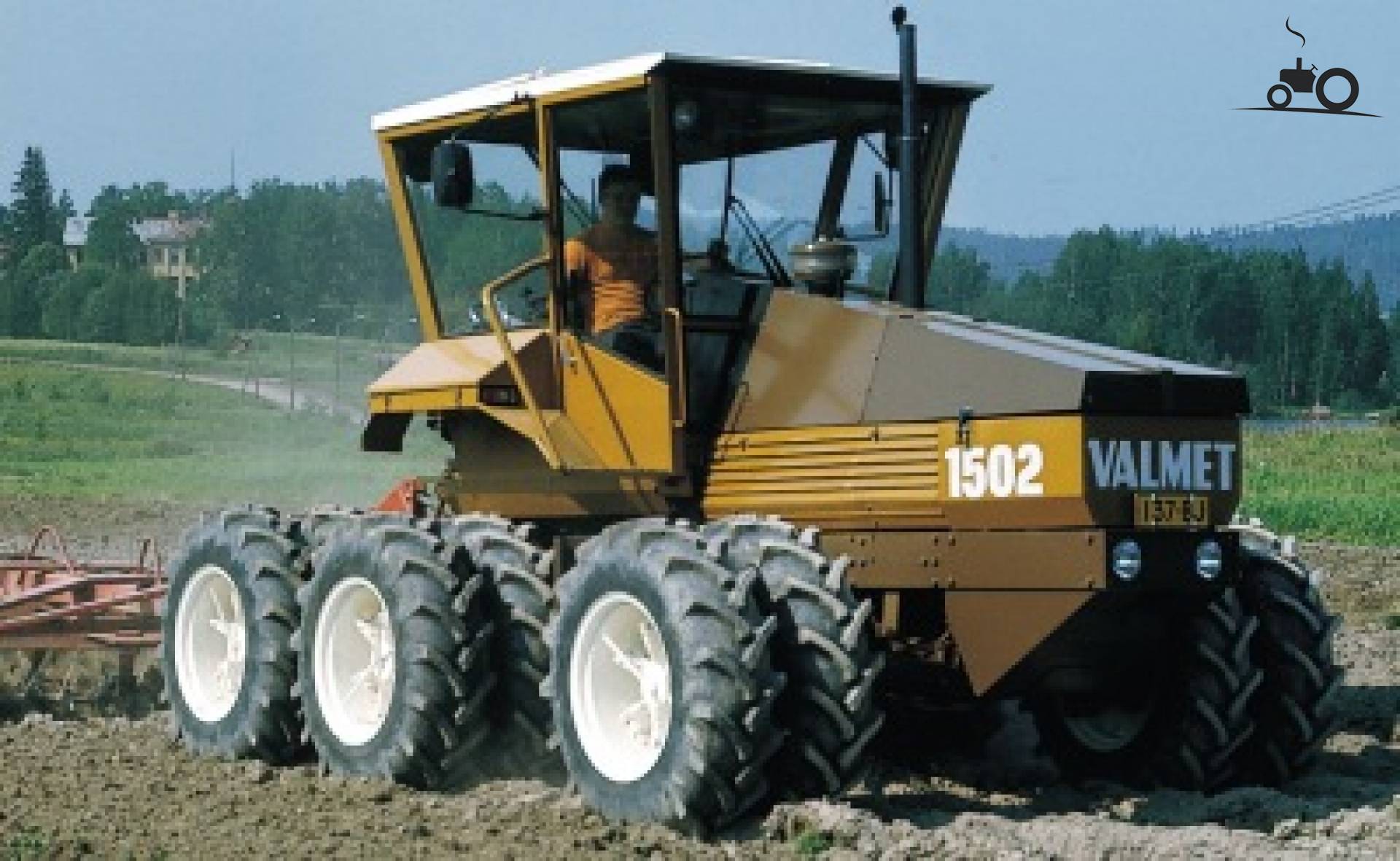

Valmet 1502
Valmet 1502 — Four-wheel Drive (4WD) tractor · 136 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Weight
15210 to 16470 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Four-wheel Drive (4WD) tractorReference
Drive4x2 2WDReference
Drive6x4 4WD (after 1979)Reference
Power steeringReference
Cab standard.Reference
Engine
Valmet 6.6L 6-cyl dieselReference
Fuel tank180.0 LReference
Engine101.4 kWReference
Valmet 611 CSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power101.4 kWReference
Rated RPM2300Reference
Torque549.2 NmReference
Torque RPM1650Reference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.1 lpmReference
Rear lift3499 kgReference
Rear PTO Type540,1000Reference
Dimensions
Wheelbase251 cmReference
Weight15210 to 16470 poundsReference
Front tire18-22.5Reference
Rear tire18-22.5Reference
Ag front18-22.5Reference
Ag front13.6-24 (4WD)Reference
Ag rear18-22.5Reference
Ag rear13.6-24 (4WD)Reference
Length532 cmReference
Height298 cmReference
Weight7470 kgReference
Weight6899 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
