Tractor · 1986Unverified
Valmet 2005

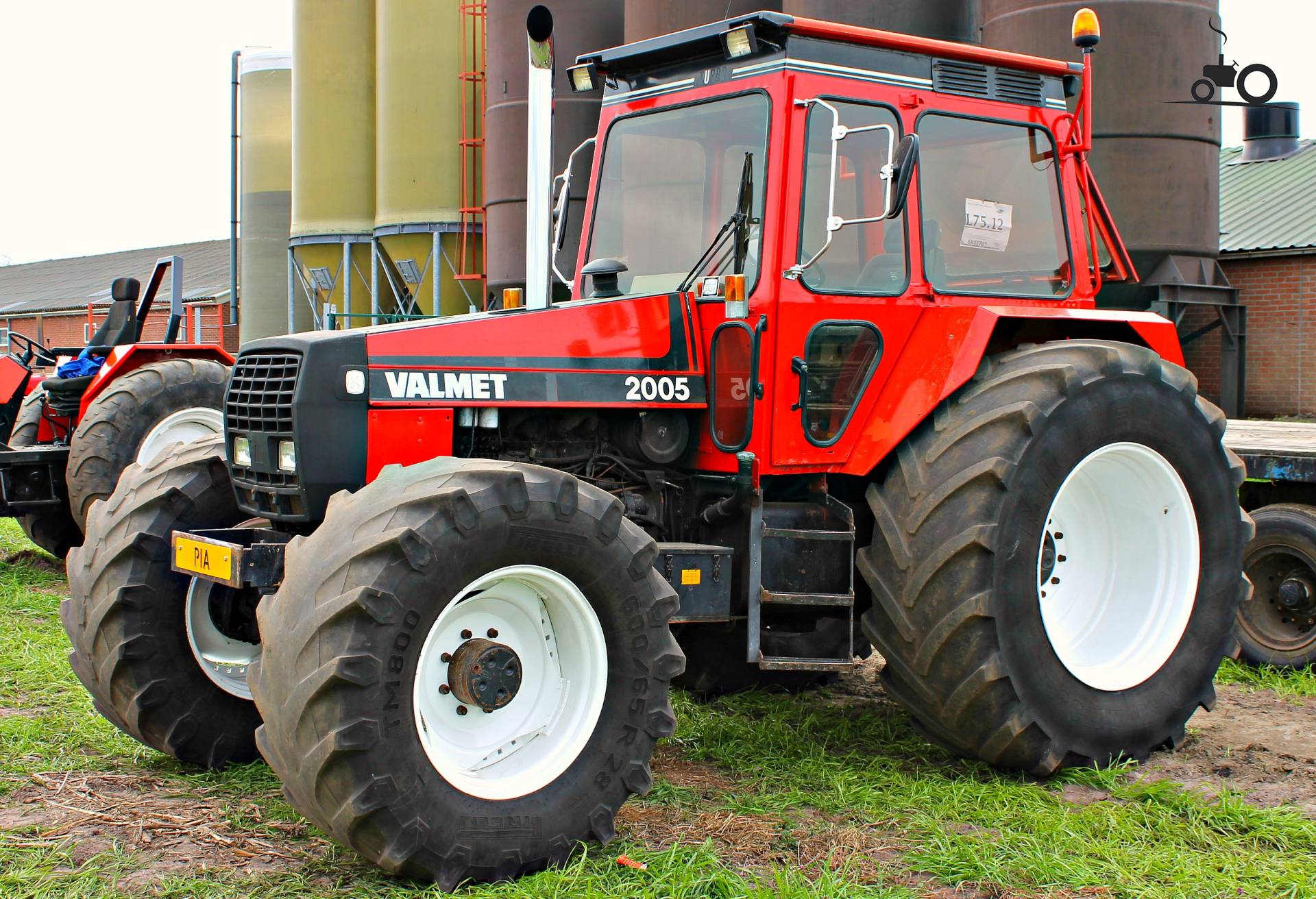

Valmet 2005 — Row-Crop tractor · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
6649 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Volvo 5.5L 6-cyl dieselReference
Fuel tank210.0 LReference
Engine104.4 kWReference
Volvo TD60BReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke98 x 120 mmReference
Power104.4 kWReference
Compression16:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Clutch355.6mm dry discReference
Four gears (1-4) plus reverse (R) in two ranges (low/high) with two-speed pushbutton power shift.Reference
PTO & Hydraulics
Pump flow43.0 lpmReference
Rear TypeIIReference
Rear lift4998 kgReference
Rear PTOindependentReference
Clutchhydraulic dry discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase284 cmReference
Weight6649 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length468 cmReference
Height (cab)302 cmReference
Height (exhaust)337 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
