Tractor · 1985Unverified

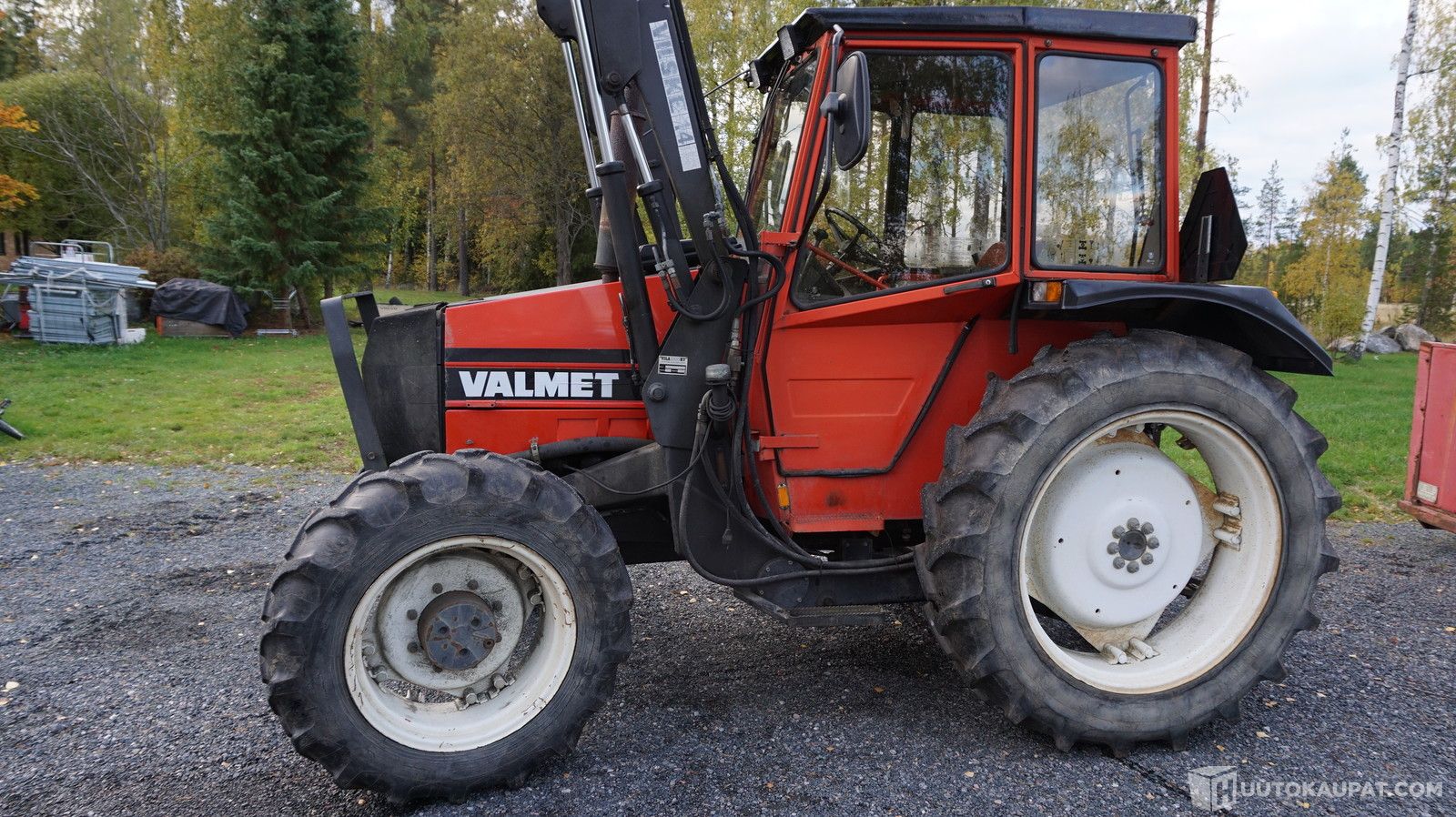

Valmet 305
Valmet 305 — 05 Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
6063 to 6548 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Valmet 2.7L 3-cyl dieselReference
Fuel tank73.1 LReference
Engine39.5 kWReference
Valmet TD27DS3Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power39.5 kWReference
Air cleanerdryReference
Pre-heatingintake air heaterReference
Compression18:1Reference
Rated RPM2350Reference
Torque195.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
8-speedReference
8-speed creeperReference
Gears8 forward and 4 reverseReference
Clutch280mm dry discReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TypecreeperReference
Creeper range provides an addition four gears forward and reverse.Reference
PTO & Hydraulics
Pump flow39.0 lpmReference
Rear lift1900 kgReference
Rear lift2500 kgReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase225 cmReference
Weight6063 to 6548 poundsReference
Front tire10.00-16Reference
2WD Rear tire14.9-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 14.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 13.9-36Reference
2WD Length371 cmReference
4WD Length385 cmReference
2WD Width198 cmReference
4WD Width195 cmReference
2WD Clearance (front axle)50 cmReference
4WD Clearance (front axle)40 cmReference
2WD2750 kgReference
4WD2970 kgReference
2WD Max front axle3000 kgReference
4WD Max front axle2049 kgReference
Max rear axle3800 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Valmet 305 Height
2WD Cab256 cmReference
4WD Cab256 cmReference
2WD Exhaust261 cmReference
4WD Exhaust264 cmReference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
