Tractor · 1968Unverified

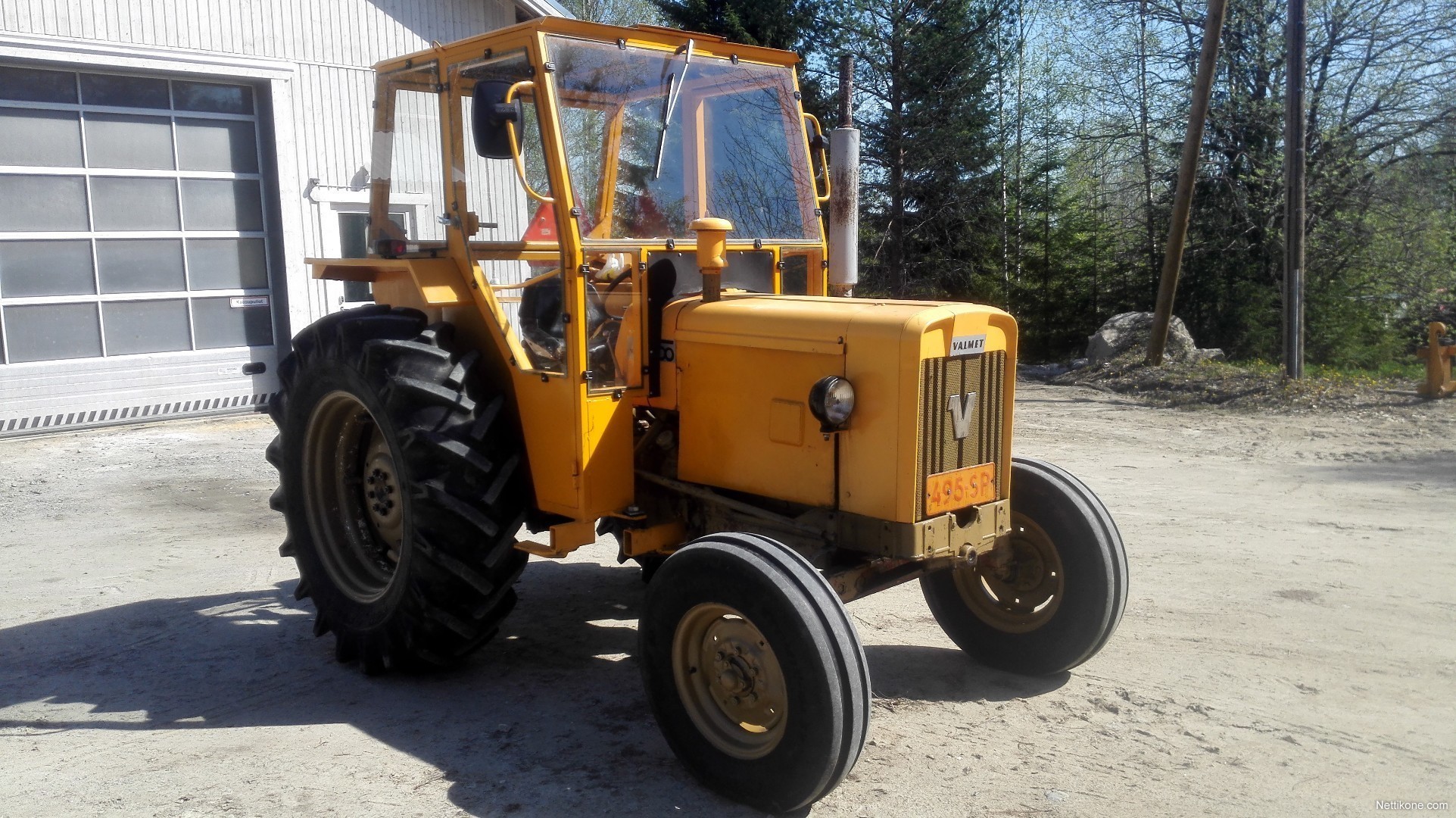

Valmet 500
Valmet 500 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2077 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Two-wheel driveReference
Dry disc brakesReference
Engine
Valmet 2.7L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine40.3 kWReference
Valmet 310BReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power40.3 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2300Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.4 LReference
Oil change150 hReference
Coolant capacity10.0 LReference
Transmission
6-speed synchromeshReference
TypesynchromeshReference
Gears6 forward and 2 reverseReference
Clutch280mm mechanical dry discReference
Oil capacity12.5 LReference
Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow26.1 lpmReference
Rear TypeIIReference
Rear lift1450 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1720Reference
Dimensions
Wheelbase191 cmReference
Weight2077 kgReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Length318 cmReference
Width186 cmReference
Height (exhaust)228 cmReference
Ballasted weight3261 kgReference
Ground clearance41 cmReference
Capacities
Diameter22 cmReference
Width16 cmReference
RPM1443Reference
Speed1019.86 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
