Tractor · 1971Unverified

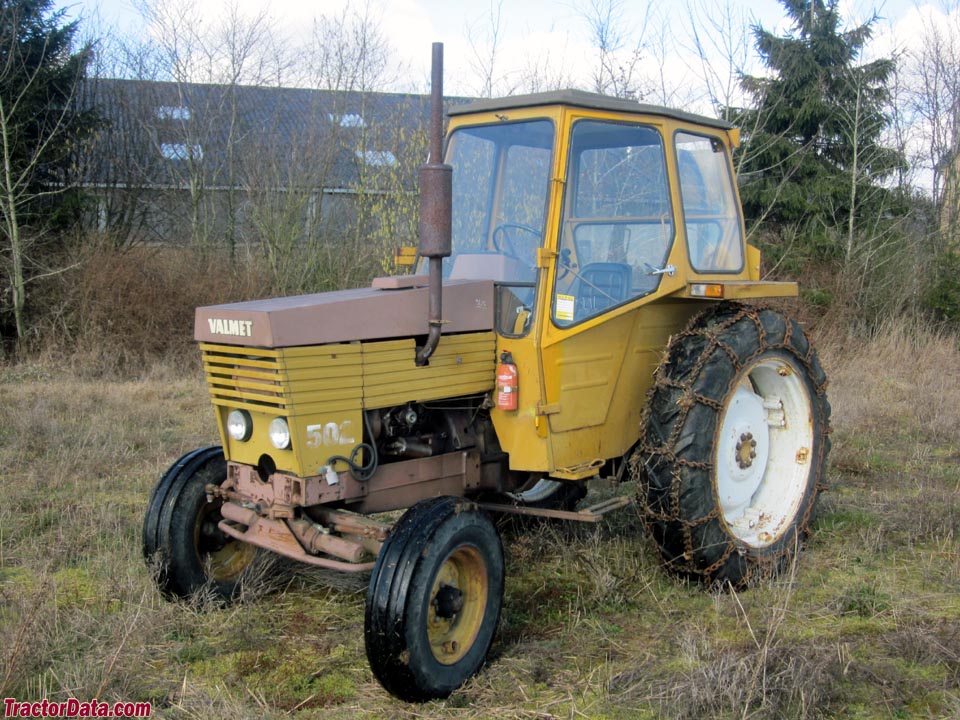

Valmet 502
Valmet 502 — 02 Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2494 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two-wheel driveReference
Power steeringReference
Mechanical disc brakesReference
Cab standard with heater.Reference
Engine
Valmet 2.7L 3-cyl dieselReference
Engine40.3 kWReference
Valmet 310 BReference
dieselReference
3-cylinder 6-valveReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power40.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity6.4 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch280mm dry discReference
Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference
Capacities
Fuel65.1 LReference
PTO & Hydraulics
Hydraulic system20.1 LReference
Capacity20.1 LReference
Pump flow42.0 lpmReference
Rear lift1500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1720Reference
Dimensions
Wheelbase211 cmReference
Weight2494 kgReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference
Optional tires (ag)Front: 10-16. Rear: 12.4-32Reference
Length343 cmReference
Width189 cmReference
Height (cab)246 cmReference
Height (exhaust)262 cmReference
Ground clearance50 cmReference
Front tread139/150/160/169 cmReference
Rear tread151/165/180/191 cmReference
Valmet 502 attachments
front-end loaderReference
