Tractor · 1982Unverified

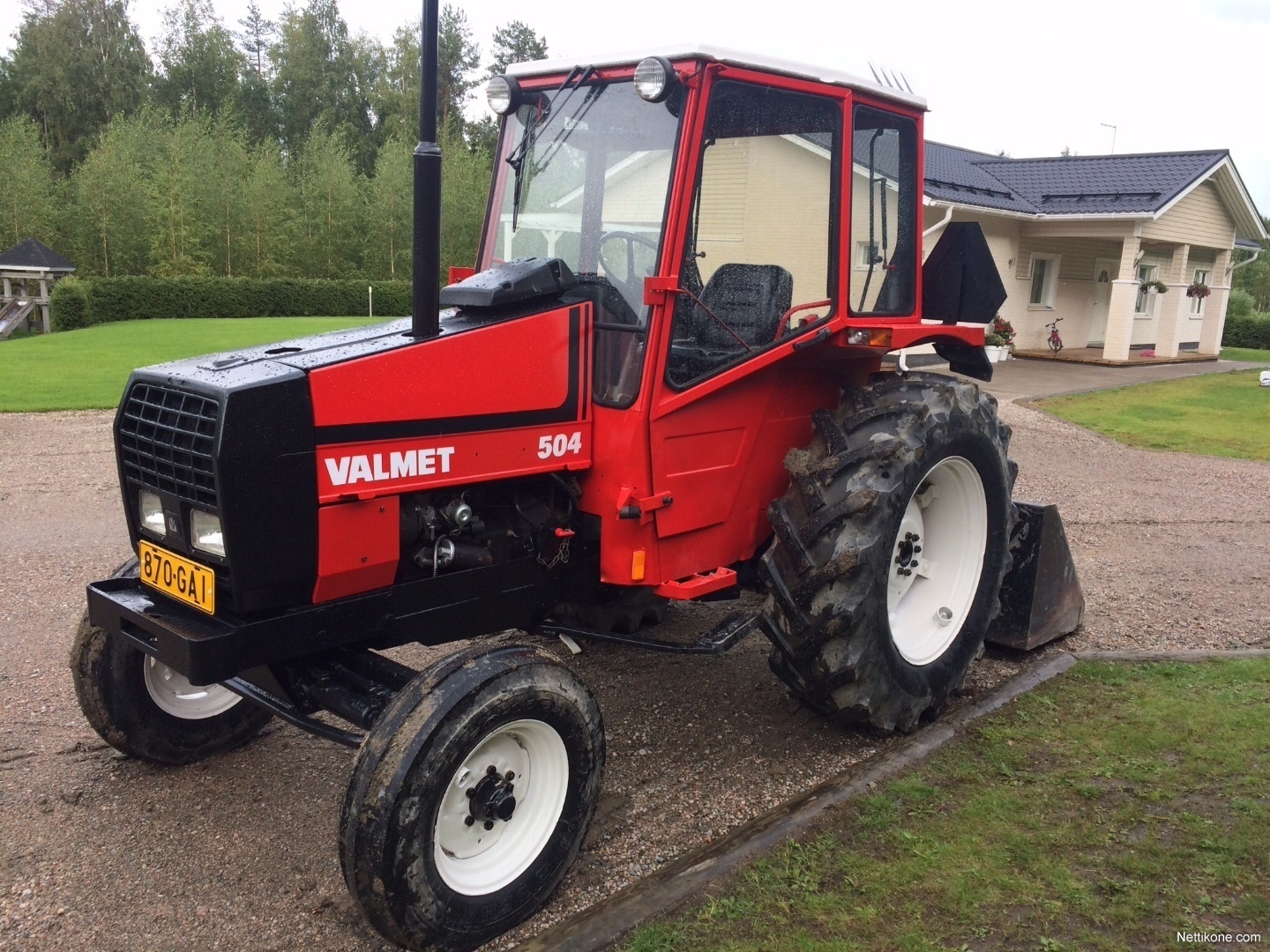

Valmet 504
Valmet 504 — 04 Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2689 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
SisuDiesel 2.7L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine36.5 kWReference
SisuDiesel D27BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power36.5 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity10.0 LReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Pump flow27.0 lpmReference
Rear lift1900 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase211 cmReference
Weight2689 kgReference
Front tire7.50-16Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 7.50-16. Rear: 14.9-30Reference
Optional tires (ag)Front: 7.50-16. Rear: 12.4-32Reference
Optional tires (ag)Front: 8.25-16. Rear: 14.9-30Reference
Length361 cmReference
Width188 cmReference
Height249 cmReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps34Reference
Charging volts13.5Reference
Battery volts12Reference
Battery AH130Reference
Speeds
With 14.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
