Tractor · 1990Unverified

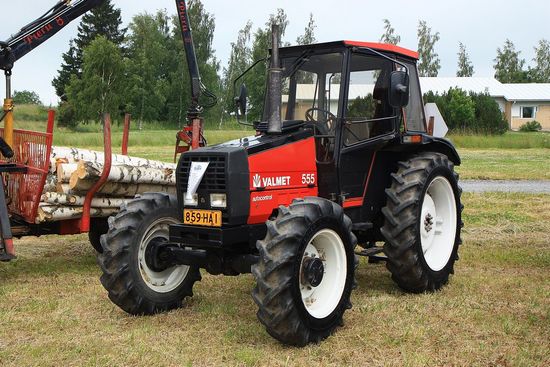

Valmet 555
Valmet 555 — 55 Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
3099 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Valmet 3.3L 3-cyl dieselReference
Fuel tank73.1 LReference
Engine53.7 kWReference
Valmet TD33DS555Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power53.7 kWReference
Air cleanerdryReference
Pre-heatingintake air heaterReference
Compression16:1Reference
Rated RPM2350Reference
Torque260.1 NmReference
Torque RPM1450Reference
Starter volts12Reference
Transmission
8-speed synchromeshReference
12-speed creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch280mm dry discReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TypecreeperReference
Gears12 forward and 8 reverseReference
Creeper range provides an additional four gears forward and reverse.Reference
PTO & Hydraulics
Pump flow39.0 lpmReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1890Reference
Dimensions
Wheelbase225 cmReference
Weight3099 kgReference
Front tire12.4R24Reference
Rear tire18.4R30Reference
Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
Optional tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Optional tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
Optional tires (ag)Front: 11.2R24. Rear: 13.6R36Reference
Optional tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Optional tires (ag)Front: 12.4R24. Rear: 16.9R34Reference
Optional tires (ag)Front: 12.4R24. Rear: 13.6R38Reference
Length387 cmReference
Width216 cmReference
Height (cab)252 cmReference
Clearance (front axle)42 cmReference
3099 kgReference
Max front axle2049 kgReference
Max rear axle3800 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
