Tractor · 1978Unverified

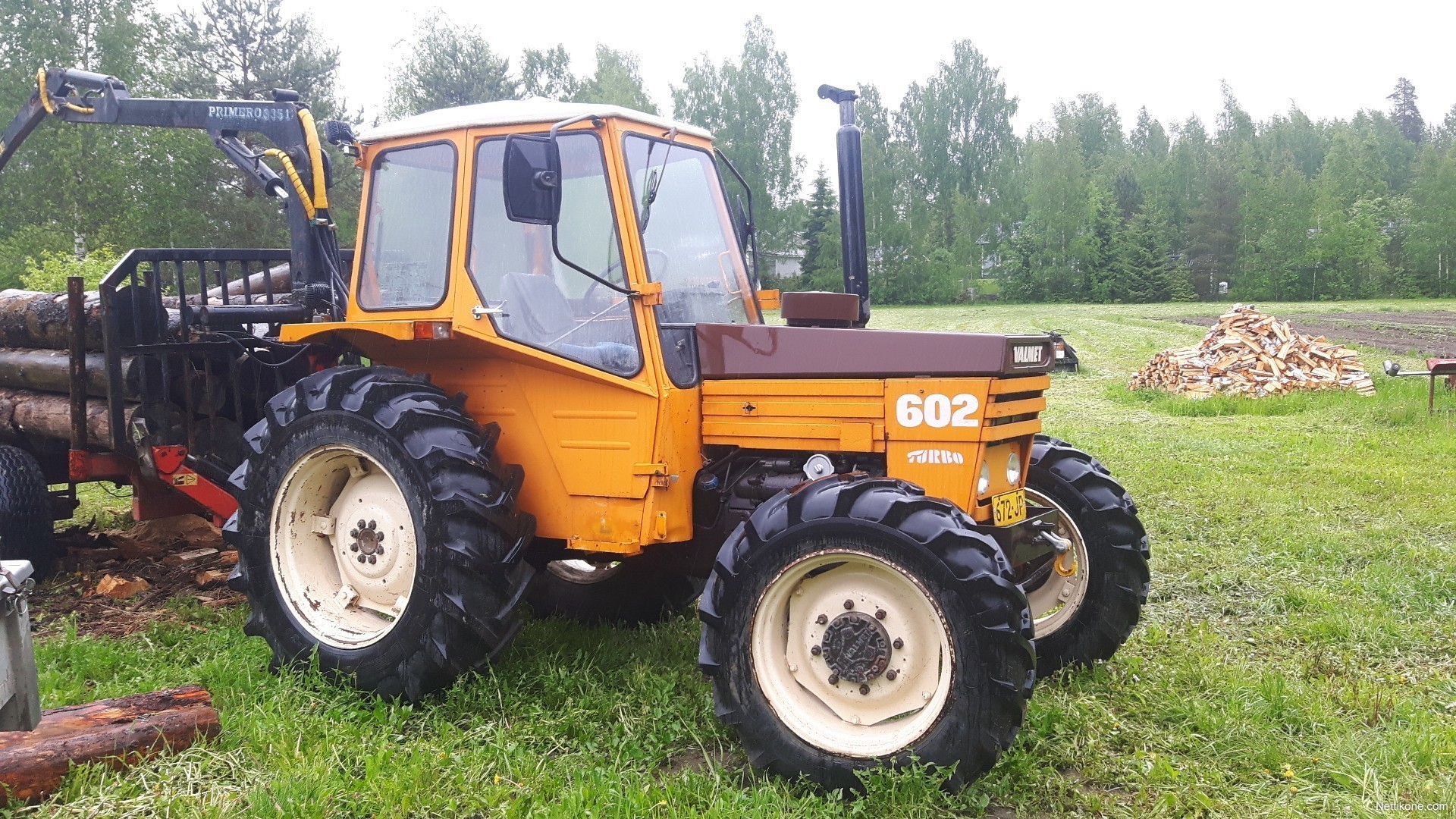

Valmet 602
Valmet 602 — Utility tractor · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2750 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Mechanical disc brakesReference
Cab standard with heater.Reference
Engine
Valmet 3.3L 3-cyl dieselReference
Engine43.0 kWReference
Valmet 311 CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power43.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque210.2 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
6-speed syncrhonizedReference
TypesyncrhonizedReference
Gears6 forward and 2 reverseReference
Clutch280mm dry discReference
PTO & Hydraulics
PTO (claimed)40.0 kWReference
Hydraulic system20.1 LReference
Capacity20.1 LReference
Pressure210.0 barReference
Valves1 to 3Reference
Pump flow26.9 lpmReference
Controlposition and draft controlReference
Rear lift1900 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1720Reference
Capacities
Fuel65.1 LReference
Dimensions
Wheelbase211 cmReference
Weight2750 kgReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
Ag front7.50-16Reference
Ag front11.2-24 (4WD)Reference
Ag rear13.6-36Reference
Length345 cmReference
Height (cab)249 cmReference
Height (exhaust)262 cmReference
Ground clearance44 cmReference
Valmet 602 attachments
front-end loaderReference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
