Tractor · 1982Unverified

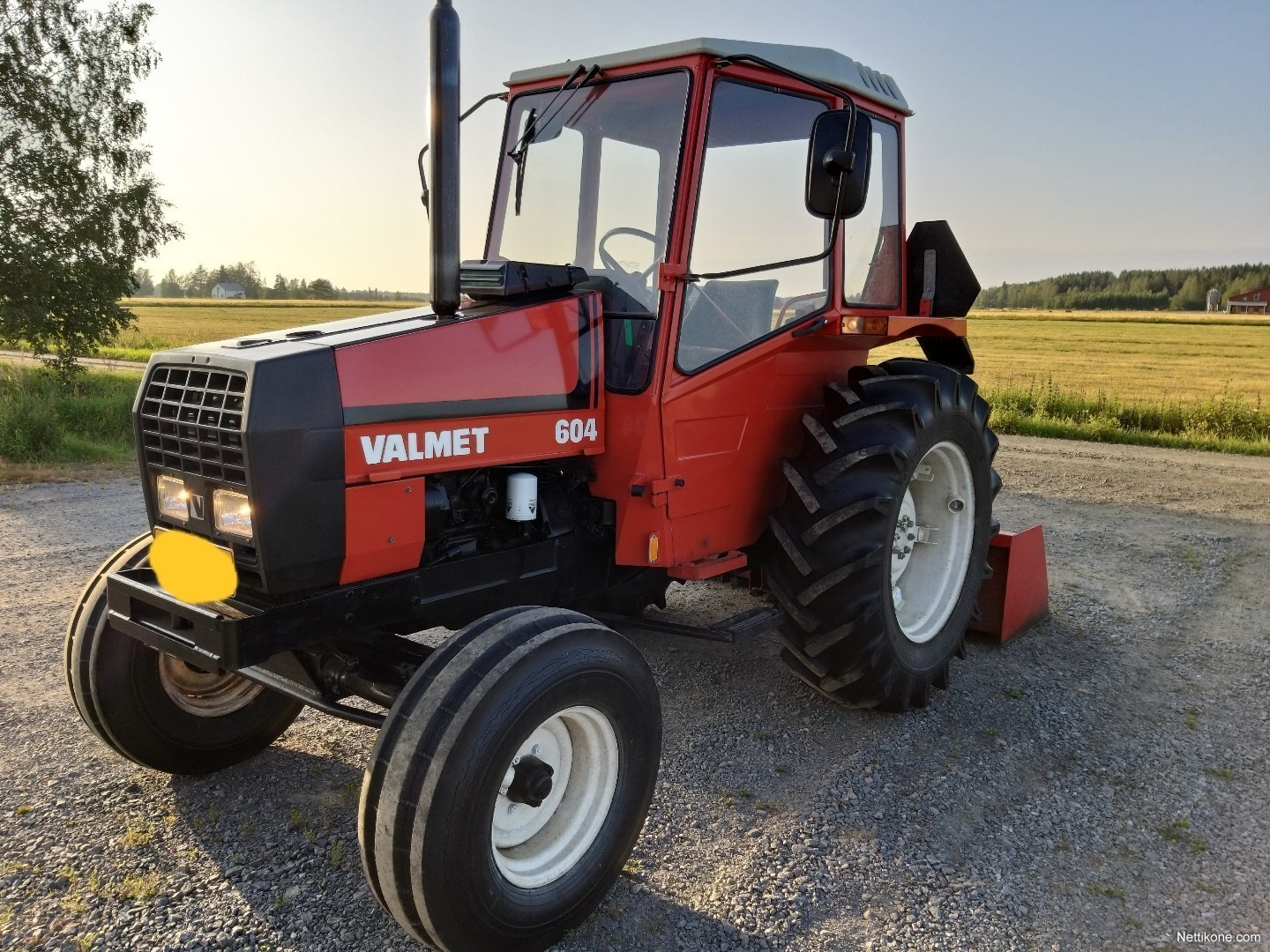

Valmet 604
Valmet 604 — 04 Series · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
6173 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
Valmet 3.3L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine45.5 kWReference
Valmet T33CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power45.5 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity10.0 LReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Pump flow26.9 lpmReference
Pump flow38.6 lpmReference
Rear lift1900 kgReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase217 cmReference
Weight6173 to 6393 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 10.5-18. Rear: 14.9-24Reference
2WD Length361 cmReference
4WD Length370 cmReference
Width199 cmReference
Height254 cmReference
2WD Weight2800 kgReference
4WD Weight2899 kgReference
2WD Ground clearance46 cmReference
4WD Ground clearance40 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps34Reference
Charging volts13.5Reference
Battery volts12Reference
Battery AH130Reference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
