Tractor · 1982Unverified

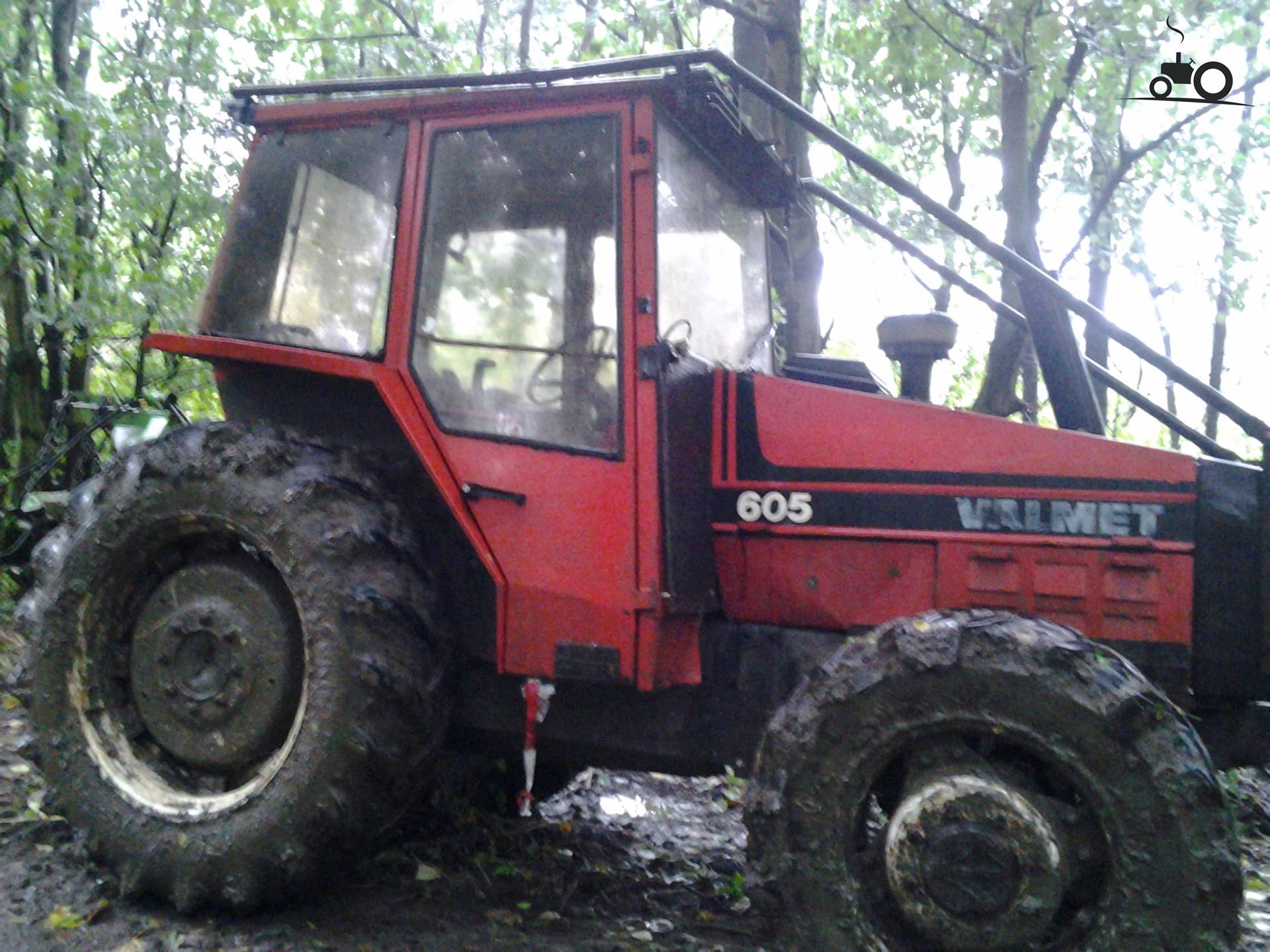

Valmet 605
Valmet 605 — 05 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
7804 to 8488 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Optional air-conditioning.Reference
Engine
Valmet 3.3L 3-cyl dieselReference
Fuel tank180.0 LReference
Engine55.9 kWReference
Valmet TD33DS6Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power55.9 kWReference
Fuel systemdirect injectionReference
Pre-heatingintake air heaterReference
Compression16:1Reference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity16.0 LReference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch310mm dry discReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
A push-button two-speed powershift added to the basic transmission.Reference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow48.1 lpmReference
Rear lift4487 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase235 cmReference
4WD Wheelbase230 cmReference
Weight7804 to 8488 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Length438 cmReference
Width212 cmReference
Height266 cmReference
2WD Weight3539 kgReference
4WD Weight3850 kgReference
Ground clearance43 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
