Tractor · 1991Unverified

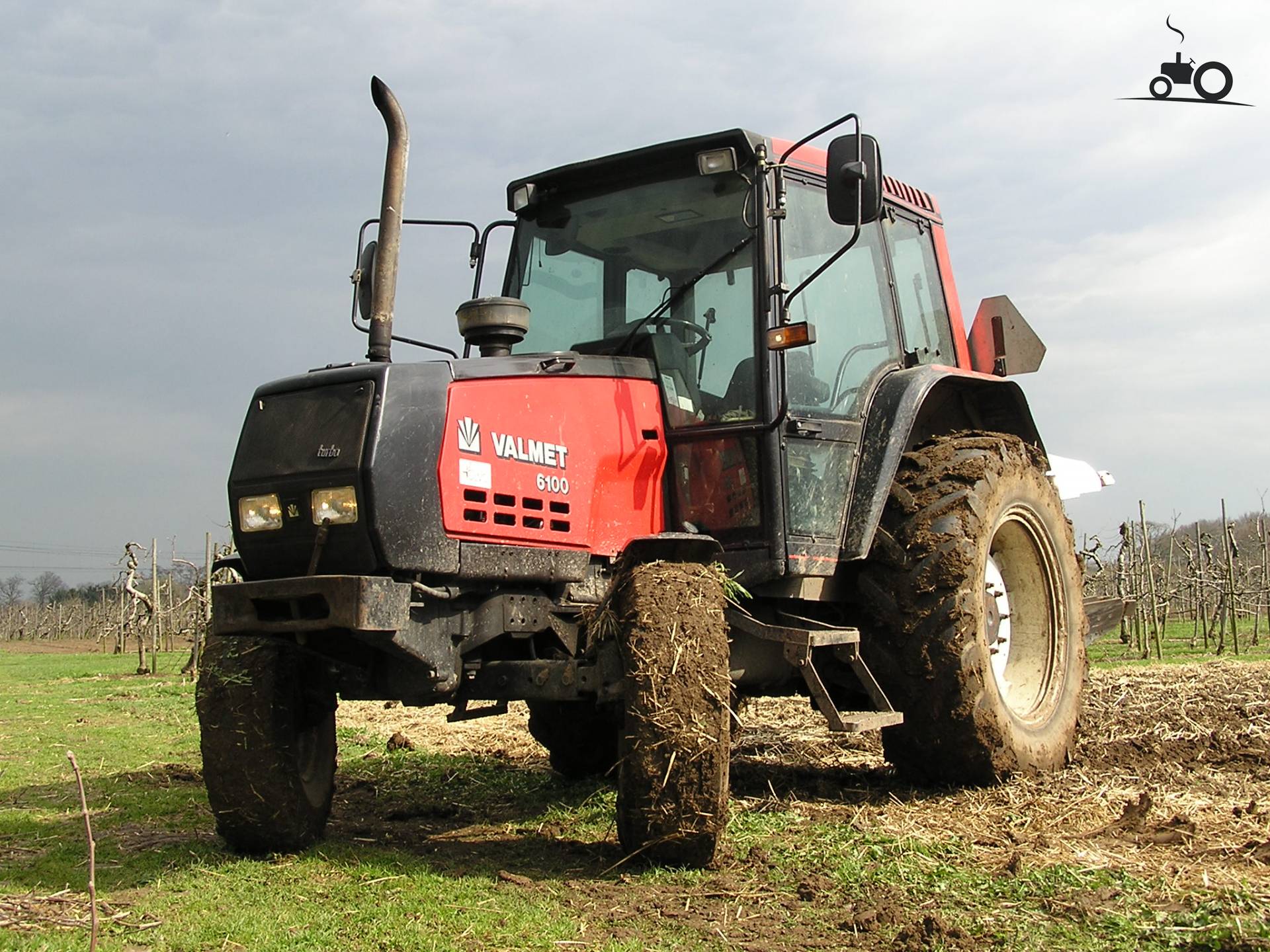

Valmet 6100
Valmet 6100 — Mezzo Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
3999 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning.Reference
Engine
SisuDiesel 3.3L 3-cyl dieselReference
Fuel tank165.0 LReference
Engine58.0 kWReference
SisuDiesel 320DSReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power58.0 kWReference
Compression16.5:1Reference
Rated RPM2300Reference
Torque310.0 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncro shuttleReference
24-speed two-speed power shiftReference
36-speed three-speed power shiftReference
Typesyncro shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with shuttle.Reference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
TransmissionDelta PowershiftReference
Typethree-speed power shiftReference
Gears36 forward and reverseReference
Four gears in three ranges with three-speed power shift and shuttle.Reference
PTO & Hydraulics
Pump flow70.0 lpmReference
Rear TypeIIReference
Rear lift4399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1874Reference
Engine RPM1000@2080Reference
Dimensions
Wheelbase230 cmReference
Weight3999 kgReference
Front tire10.00-16Reference
Rear tire16.9R34Reference
Ag front10.00-16Reference
Ag front13.6R24 (4WD)Reference
Ag rear16.9R34Reference
Length429 cmReference
Height (cab)269 cmReference
Height (exhaust)272 cmReference
Clearance (front axle)42 cmReference
Clearance (rear axle)41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH150Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
