Tractor · 1996Unverified

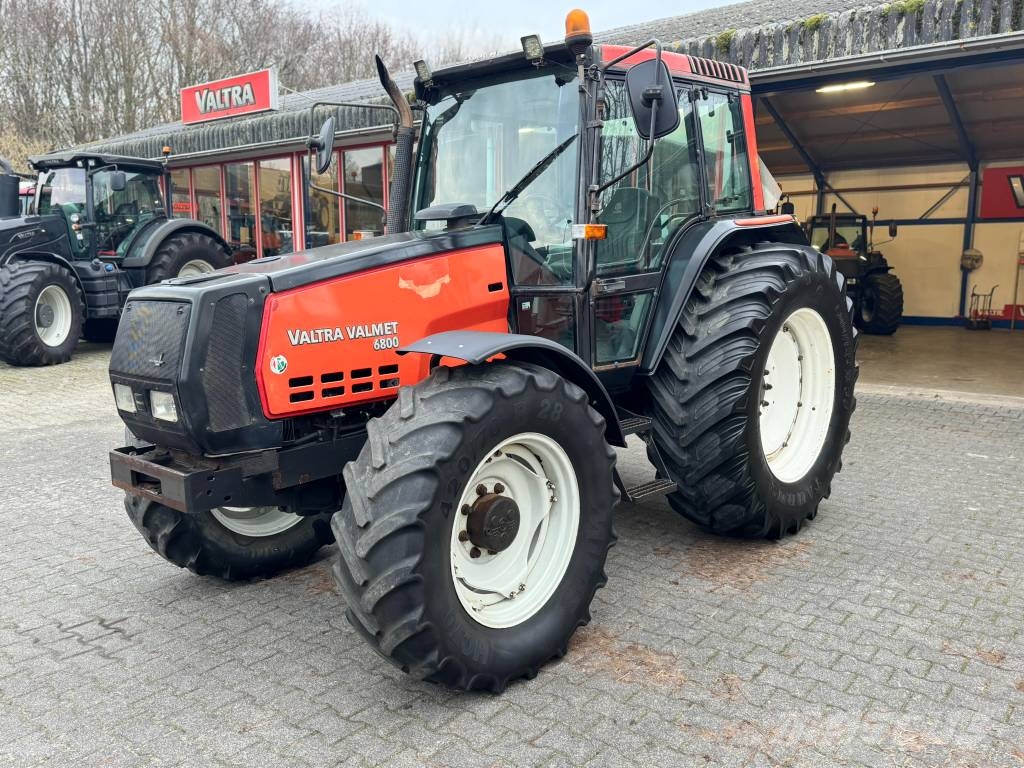

Valmet 6800
Valmet 6800 — Mezzo Series · 114 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
114 hp
Weight
4409 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning.Reference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine85.0 kWReference
SisuDiesel 420 DWIReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power85.0 kWReference
Compression16.5:1Reference
Rated RPM2225Reference
Torque440.0 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed three-speed power shiftReference
TransmissionDelta PowershiftReference
Typethree-speed power shiftReference
Gears36 forward and reverseReference
Four gears in three ranges with three-speed power shift and shuttle.Reference
PTO & Hydraulics
Pump flow73.1 lpmReference
Rear TypeIII/IIReference
Rear lift6999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1874Reference
Engine RPM1000@2080Reference
Dimensions
Wheelbase232 cmReference
Weight4409 kgReference
Front tire13.6R24Reference
Rear tire18.4R38Reference
Ag front13.6R24Reference
Ag rear18.4R38Reference
Length442 cmReference
Width217 cmReference
Height277 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
