Tractor · 1972Unverified

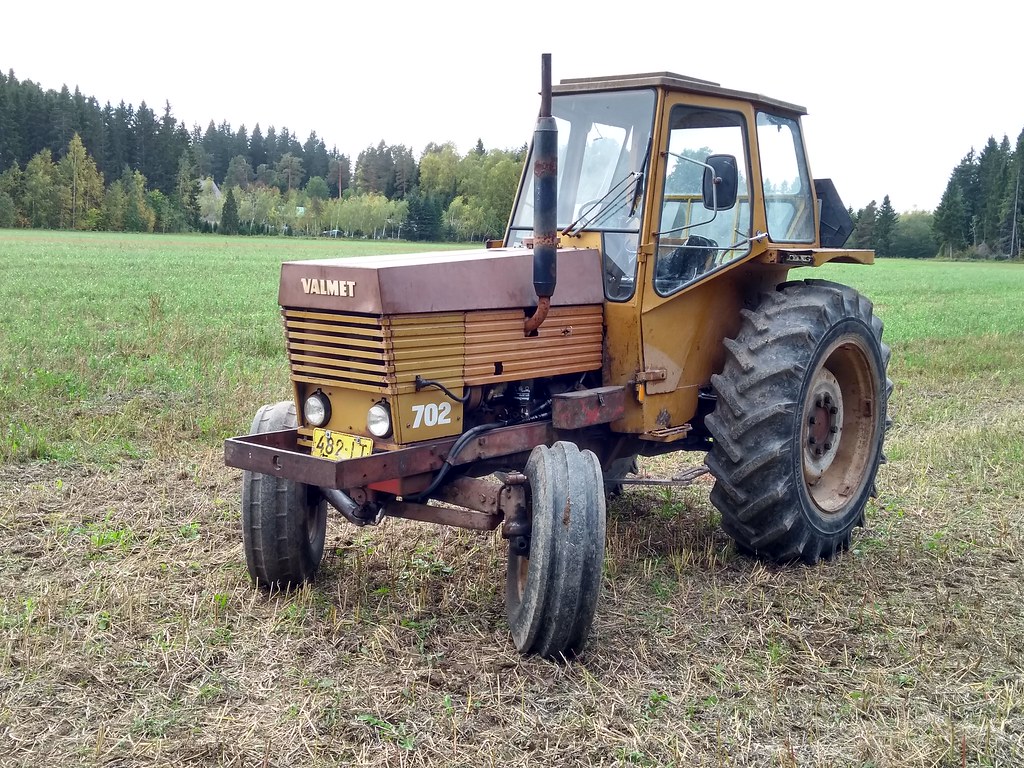

Valmet 702
Valmet 702 — 02 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3375 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with heater.Reference
Variants
7028-speedReference
70316-speedReference
Engine
Valmet 4.2L 4-cyl dieselReference
Fuel tank68.1 LReference
Engine55.9 kWReference
Valmet 411 B 72Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke108 x 114 mmReference
Power55.9 kWReference
Rated RPM2200Reference
Torque261.8 NmReference
Torque RPM1200Reference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speedReference
TypesynchromeshReference
Gears8 forward and 2 reverseReference
Clutch310mm dry discReference
Four gears (1-4) plus reverse (R) in two ranges (low/high).Reference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pump flow26.1 lpmReference
Rear lift2120 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase224 cmReference
Weight3375 kgReference
Front tire7.50-18Reference
Rear tire13.6-38Reference
Ag front7.50-18Reference
Ag front13.6-28 (4WD)Reference
Ag rear13.6-38Reference
Ag rear18.4-34 (4WD)Reference
Height264 cmReference
Valmet 702 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
