Tractor · 1980Unverified

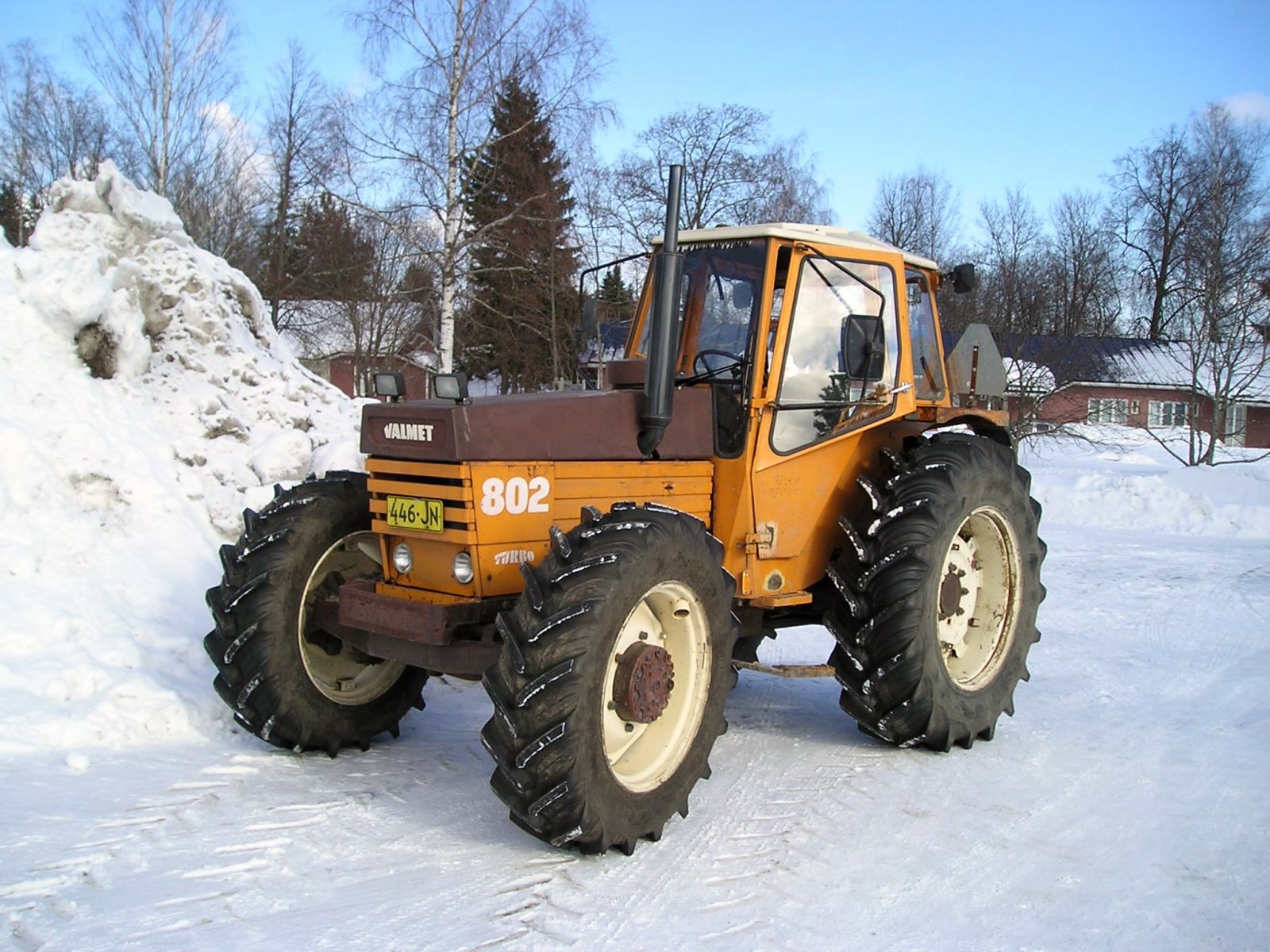

Valmet 802
Valmet 802 — 02 Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
7804 to 8730 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Disc brakesReference
Cab standard with heater.Reference
Variants
8028-speedReference
80316-speedReference
Engine
Valmet 4.4L 4-cyl dieselReference
Engine60.0 kWReference
Valmet 411 CSReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power60.0 kWReference
Rated RPM2200Reference
Torque306.0 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity16.0 LReference
Transmission
8-speed synchromeshReference
TypesynchromeshReference
Gears8 forward and 2 reverseReference
Clutch310mm discReference
Four gears (1-4) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)57.0 kWReference
Hydraulic system23.1 LReference
Capacity23.1 LReference
Pressure210.0 barReference
Pump flow34.8 lpmReference
Rear lift2899 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1556Reference
Capacities
Fuel90.1 LReference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase244 cmReference
Weight7804 to 8730 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 13.6-28. Rear: 18.4-34Reference
2WD Length384 cmReference
4WD Length415 cmReference
2WD Width197 cmReference
4WD Width211 cmReference
2WD Weight3539 kgReference
4WD Weight3959 kgReference
2WD Ground clearance48 cmReference
4WD Ground clearance46 cmReference
Valmet 802 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH130Reference
Valmet 802 Height
2WD Cab249 cmReference
4WD Cab262 cmReference
2WD Exhaust264 cmReference
4WD Exhaust270 cmReference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
