Tractor · 1982Unverified

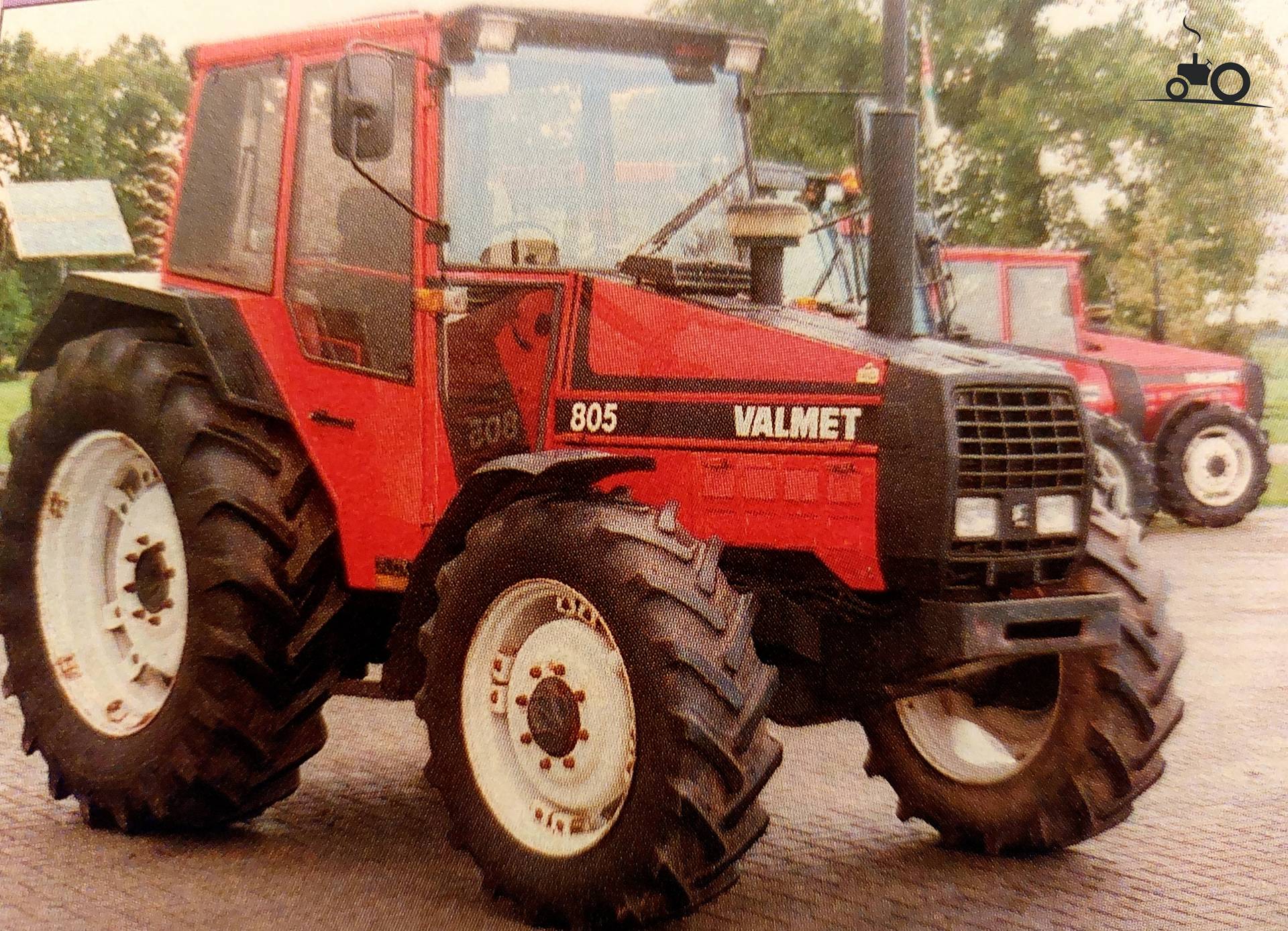

Valmet 805
Valmet 805 — 05 Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
8333 to 9105 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Optional air-conditioning.Reference
Engine
Valmet 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine70.8 kWReference
Valmet TD44DS8Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Pre-heatingintake air heaterReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch330mm dry discReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
A push-button two-speed powershift added to the basic transmission.Reference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow48.1 lpmReference
Rear lift4487 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase232 cmReference
Weight8333 to 9105 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Length451 cmReference
Width214 cmReference
Height270 cmReference
2WD Weight3779 kgReference
4WD Weight4130 kgReference
Ground clearance47 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 16.9R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
