Tractor · 1993Unverified

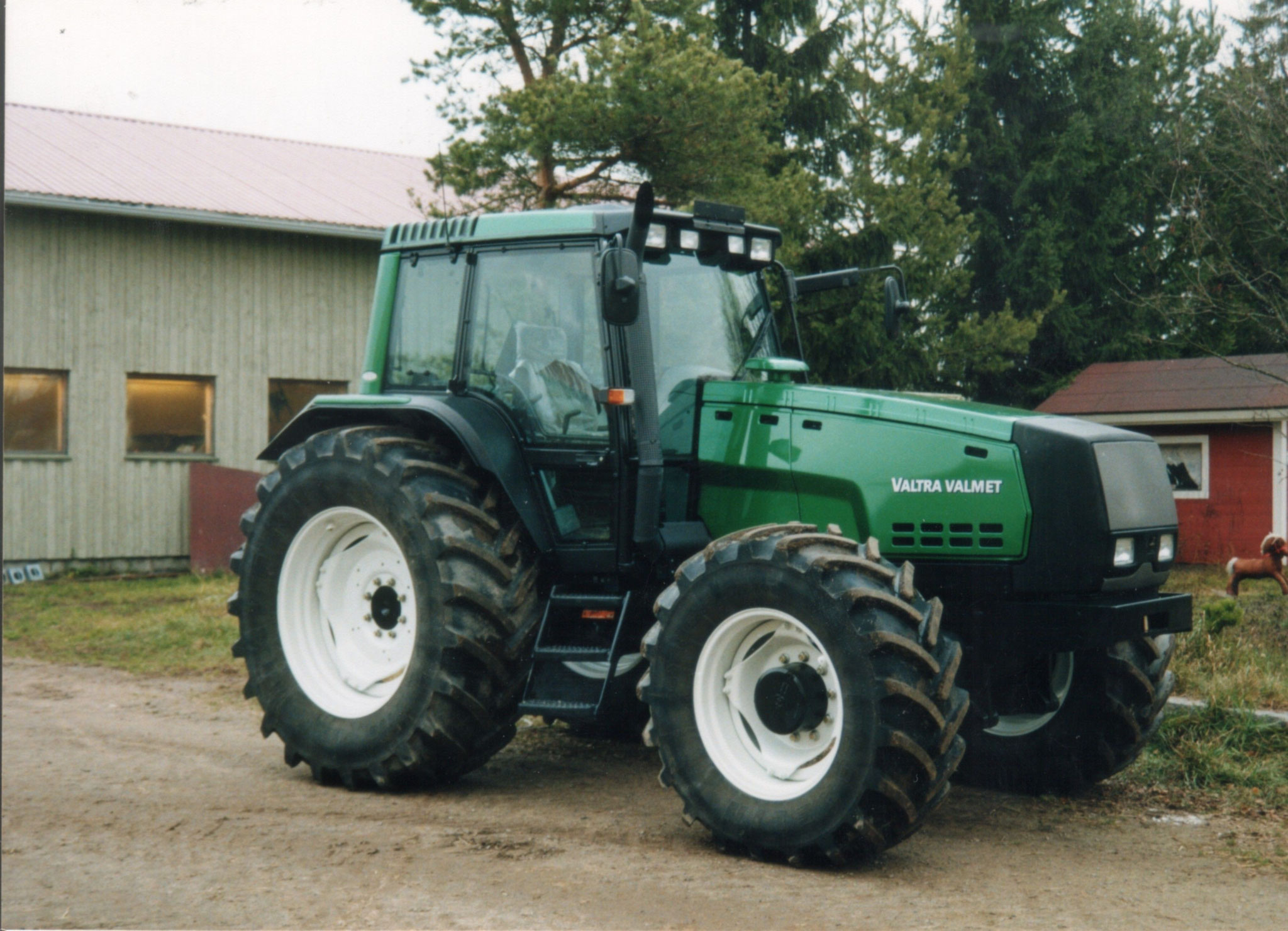

Valmet 8400
Valmet 8400 — Mezzo Series · 138 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
138 hp
Weight
4871 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Fuel tank165.0 LReference
Engine103.0 kWReference
SisuDiesel 620DSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power103.0 kWReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque520.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed three-speed power shiftReference
TransmissionDelta PowershiftReference
Typethree-speed power shiftReference
Gears36 forward and reverseReference
PTO & Hydraulics
Pump flow70.0 lpmReference
Rear lift5601 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase254 cmReference
Weight4871 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length474 cmReference
Height277 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
