Tractor · 1979Unverified

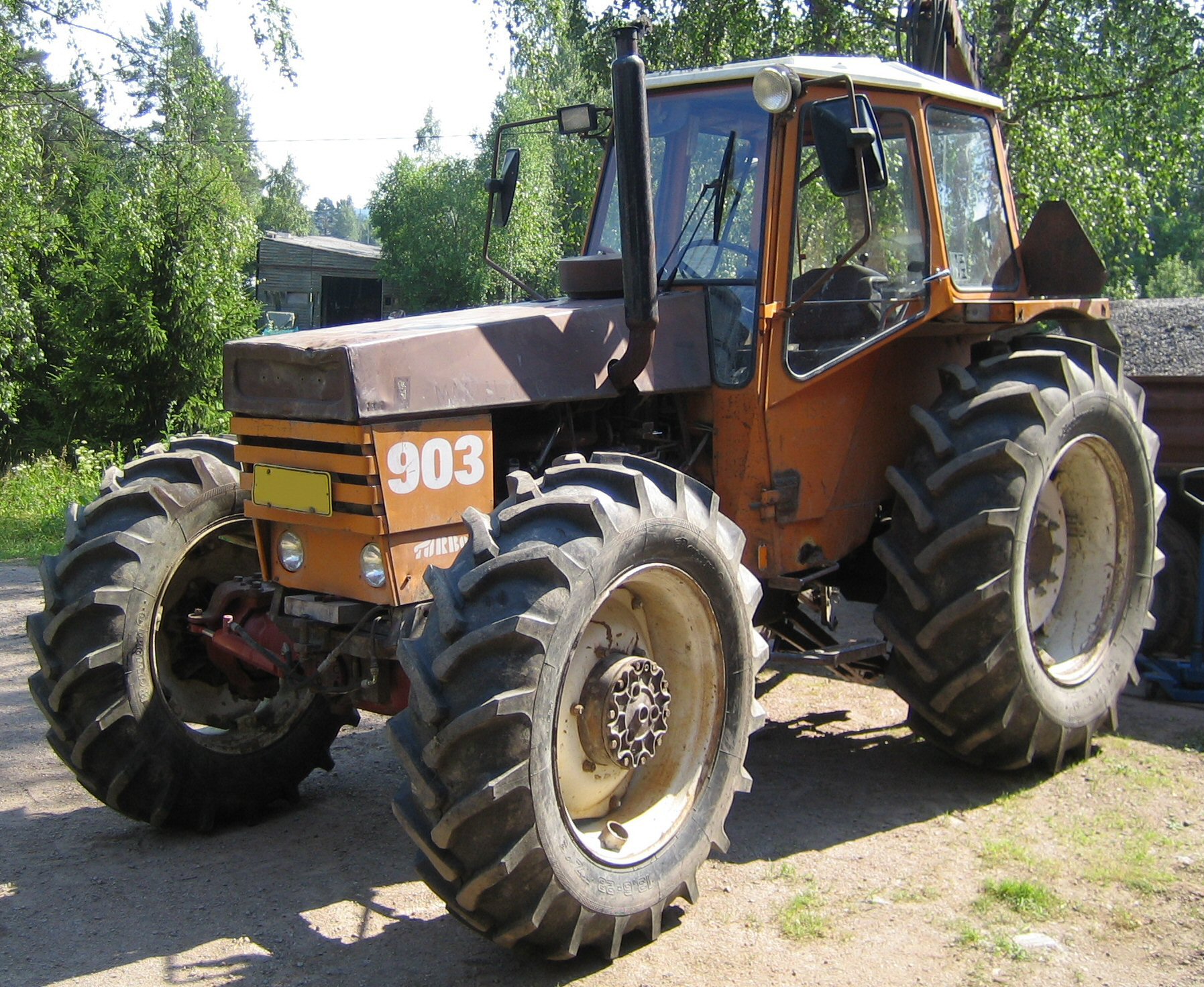

Valmet 903
Valmet 903 — 02 Series · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
7981 to 8907 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Disc brakesReference
Cab standard with heater.Reference
Engine
Valmet 4.4L 4-cyl dieselReference
Engine71.0 kWReference
Valmet 411 CSReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power71.0 kWReference
Rated RPM2200Reference
Torque335.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity16.0 LReference
Transmission
16-speedReference
TransmissionHi-TracReference
Gears16 forward and 4 reverseReference
Clutch310mm discReference
PTO & Hydraulics
PTO (claimed)68.0 kWReference
Hydraulic system23.1 LReference
Capacity23.1 LReference
Pressure210.0 barReference
Pump flow34.8 lpmReference
Rear lift2899 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1556Reference
Capacities
Fuel90.1 LReference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase244 cmReference
Weight7981 to 8907 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 13.6-28. Rear: 18.4-34Reference
2WD Length390 cmReference
4WD Length417 cmReference
2WD Width197 cmReference
4WD Width211 cmReference
2WD Weight3620 kgReference
4WD Weight4040 kgReference
2WD Ground clearance48 cmReference
4WD Ground clearance46 cmReference
Valmet 903 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH130Reference
Attachment overview
Valmet VL 1600 loaderReference
Valmet J 60 loaderReference
Valmet J 71 loaderReference
Valmet 903 Height
2WD Cab249 cmReference
4WD Cab262 cmReference
2WD Exhaust264 cmReference
4WD Exhaust270 cmReference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
