Tractor · 1984Unverified

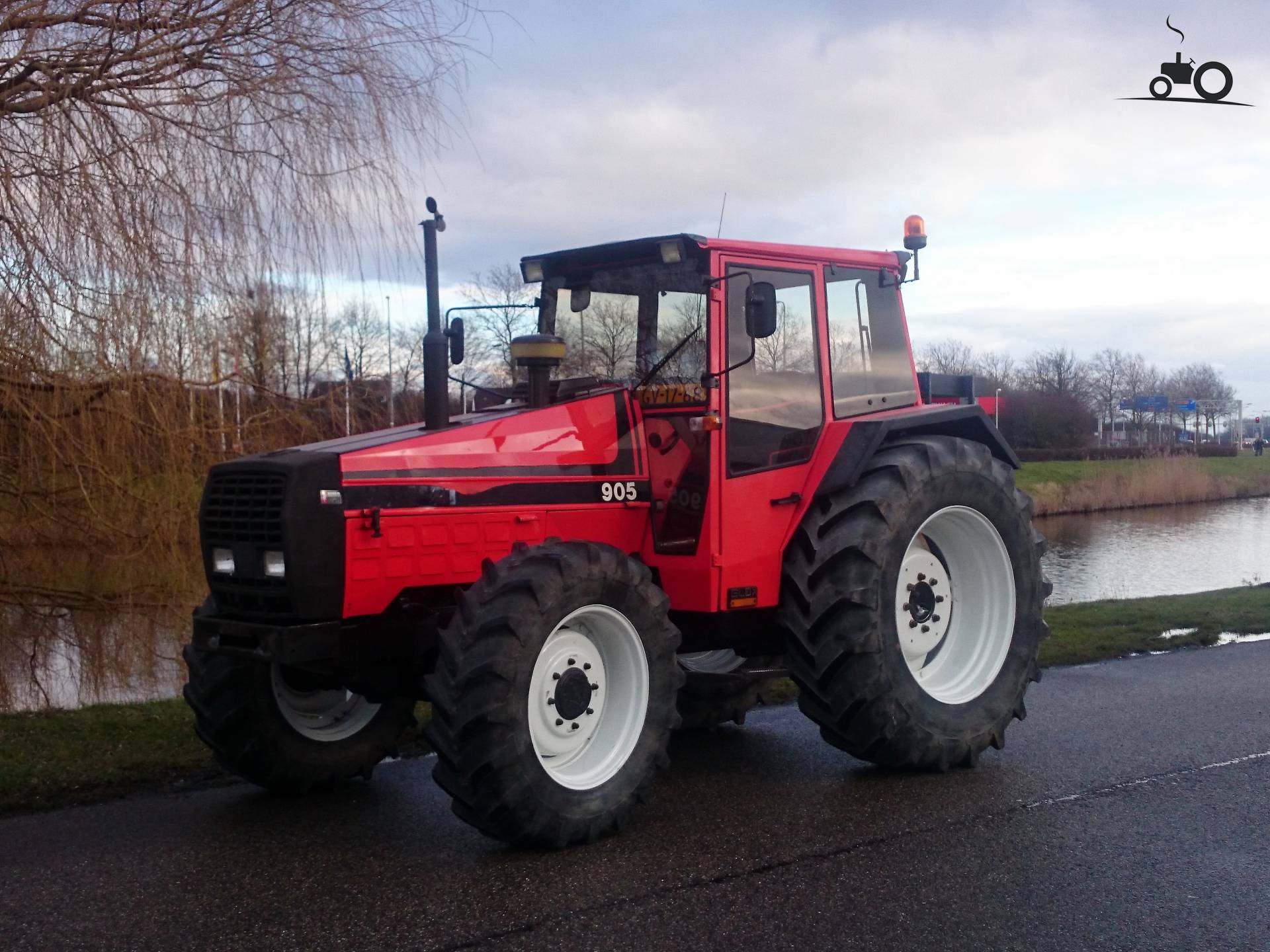

Valmet 905
Valmet 905 — 05 Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4429 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Optional air-conditioning.Reference
Engine
Valmet 6.6L 6-cyl dieselReference
Fuel tank180.0 LReference
Engine78.3 kWReference
Valmet D66D9Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Pre-heatingintake air heaterReference
Compression17:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch330mm dry discReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
A push-button two-speed powershift added to the basic transmission.Reference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow48.1 lpmReference
Rear lift5710 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase256 cmReference
Weight4429 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Length510 cmReference
Width214 cmReference
Height270 cmReference
Ground clearance47 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 16.9R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
