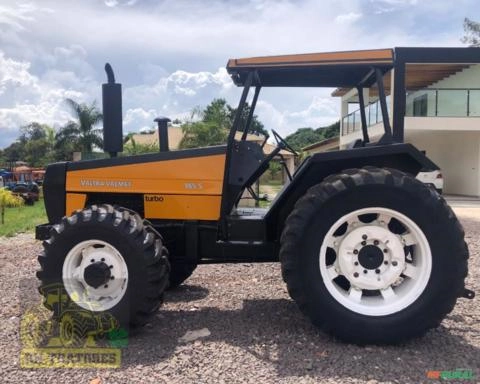

Valmet 985 4x4
Valmet 985 4x4 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
3959 kg
Hover a source tag to verify
Overview
ManufacturerValmetReference
Row-Crop tractorReference
Built in BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab available with air-conditioning.Reference
Engine
MWM 3.9L 4-cyl dieselReference
MWM TD229Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Air cleanerdryReference
Rated RPM2300Reference
Torque371.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity13.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges, plus reverse, with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)70.1 kWReference
Hydraulic system65.9 LReference
Typeopen centerReference
Capacity65.9 LReference
Pressure176.5 barReference
Valves2Reference
Pump flow51.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2590 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1860Reference
Capacities
Fuel179.8 LReference
Dimensions
Wheelbase249 cmReference
Weight3959 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Length454 cmReference
Width231 cmReference
Height (ROPS)287 cmReference
Clearance (drawbar)42 cmReference
Front tread152 to 203 cmReference
Rear tread152 to 213 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH135Reference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
