Tractor · Unverified

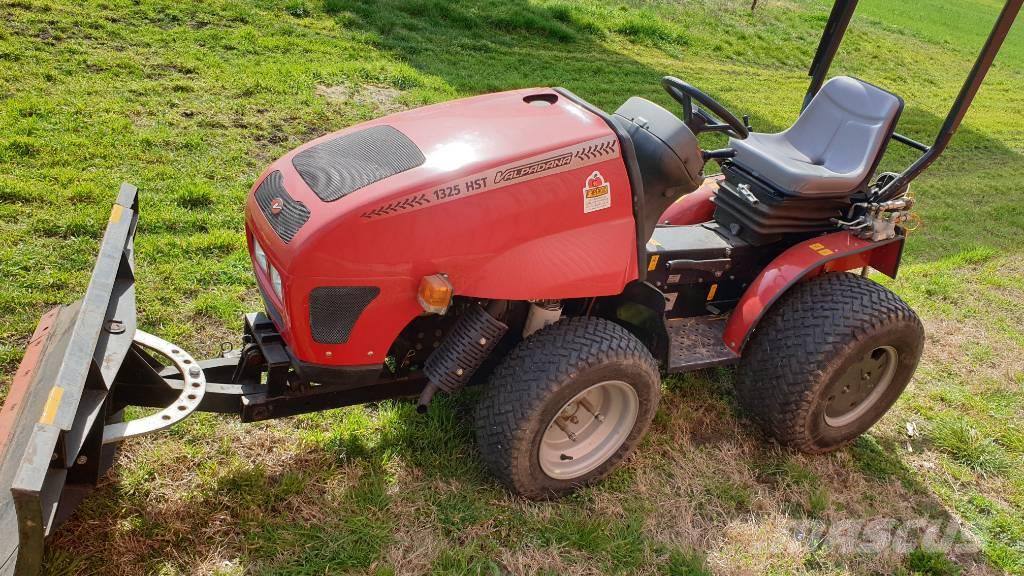

Valpadana 1325
Valpadana 1325 · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
565 kg
Hover a source tag to verify
Overview
ManufacturerValpadanaReference
Built in San Martino, ItalyReference
Four-wheel driveReference
SteeringpowerReference
Disc brakesReference
Engine
0.8L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine15.3 kWReference
403C-07Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke67 x 72 mmReference
Power15.3 kWReference
Air cleanerdryReference
Rated RPM3600Reference
Torque50.0 NmReference
Torque RPM2400Reference
PTO & Hydraulics
Pressure120.0 barReference
Valves1 standardReference
Valves3 optionalReference
Total flow12.1 lpmReference
Rear TypeIReference
Rear lift529 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase107 cmReference
Weight565 kgReference
Front tire6.5/80-12Reference
Rear tire7.00-12Reference
Ag front6.5/80-12Reference
Ag rear7.00-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear26x12.00-12Reference
Length255 cmReference
Width67 cmReference
Height118 cmReference
Ground clearance19 cmReference
Transmission
TransmissionHydrostaticReference
Gearsinfinite 2-range forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
