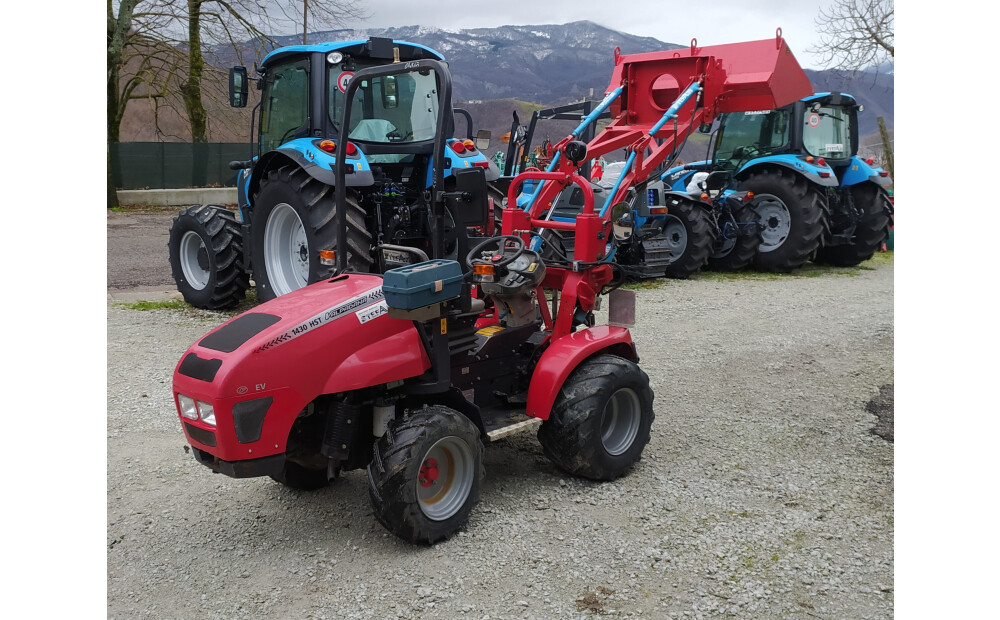

The Valpadana 1430 is a compact tractor with a rated engine power of 26 hp. It features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's listed weight is 800 kg, and it is suitable for tasks involving approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
800 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
26 hp
Recorded weight
800 kg
Transmissions
Hydrostatic
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerValpadanaReference
Built in San Martino, ItalyReference
Four-wheel driveReference
SteeringpowerReference
Drum brakesReference
foldable ROPSReference
Variants
HSTstandard versionReference
HST-REVReversible with rotating operator platformReference
Engine
1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine19.7 kWReference
403C-11Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power19.7 kWReference
Air cleanerdryReference
Rated RPM3000Reference
Torque64.0 NmReference
Torque RPM2100Reference
PTO & Hydraulics
Pressure120.0 barReference
Valves2 frontReference
Valves2 rearReference
Total flow20.1 lpmReference
Rear TypeIReference
Rear lift600 kgReference
Front HitchoptionalReference
Front lift300 kgReference
Rear PTO Type540/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase114 cmReference
Weight800 kgReference
Front tire6.5/80-12Reference
Rear tire7.00-12Reference
Ag front6.5/80-12Reference
Ag rear7.00-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear26x12.00-12Reference
Length263 cmReference
Width96 cmReference
Height118 cmReference
Ground clearance19 cmReference
Transmission
TransmissionHydrostaticReference
Gearsinfinite 2-range forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
