Tractor · Unverified

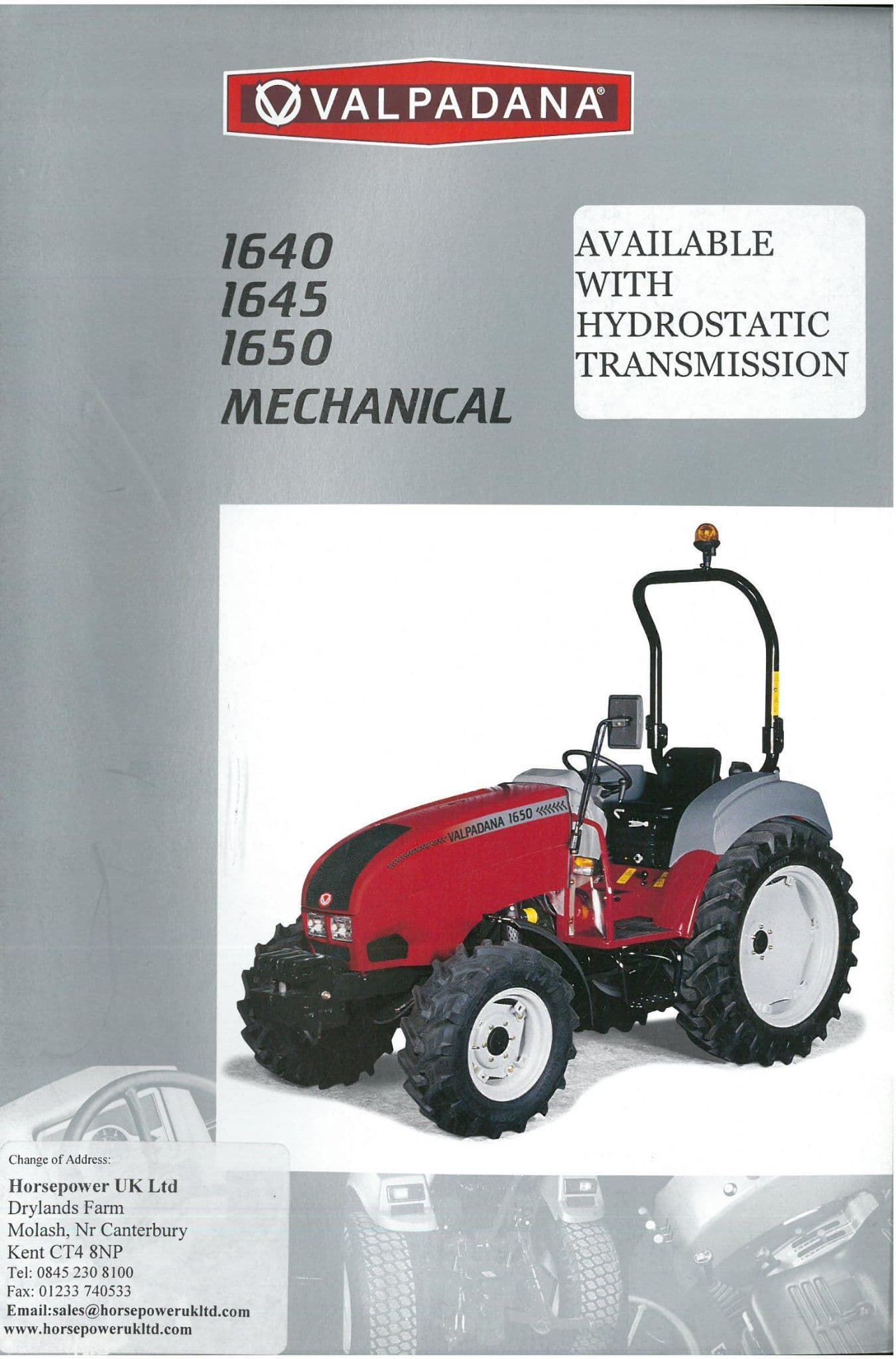

Valpadana 1640

Name: Valpadana 1640
Brand: Valpadana

Valpadana 1640 · 33 hp. Reference specifications; pending source verification.

The Valpadana 1640 is a tractor model with a rated power output of 33 hp, positioning it as one of the more compact options in its class. It is equipped with a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The listed weight of the tractor is 1569 kg. It is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

1569 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

33 hp

Recorded weight

1569 kg

Transmissions

12-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerValpadanaReference

Built in San Martino, ItalyReference

Four-wheel driveReference

Wet disc brakesReference

cab with heat optionalReference

Engine

1.6L 3-cyl dieselReference

Fuel tank50.0 LReference

Engine28.0 kWReference

3TNE88-ELANReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

Power28.0 kWReference

Air cleanerdryReference

Rated RPM2800Reference

Torque102.8 NmReference

Torque RPM1800Reference

Transmission

12-speedReference

16-speedReference

TransmissionshuttleReference

Gears12 forward and reverseReference

Transmissionshuttle/creeperReference

Gears16 forward and reverseReference

TransmissionhydrostaticReference

Gearsinfinite 3-range forward and reverseReference

PTO & Hydraulics

PTO (claimed)24.6 kWReference

Valves3 rearReference

Valves1 front optionalReference

Pump flow28.0 lpmReference

Total flow47.7 lpmReference

Steering flow19.7 lpmReference

Rear TypeIReference

Rear lift1200 kgReference

Front HitchI optionalReference

Front lift399 kgReference

Rear PTO Type540/750/groundReference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase181 cmReference

Weight1569 kgReference

Front tire200/70-16Reference

Rear tire320/70-20Reference

Ag front200/70-16Reference

Ag rear320/70-20Reference

Length341 cmReference

Width132 cmReference

Height230 cmReference

Ground clearance34 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
