Tractor · Unverified

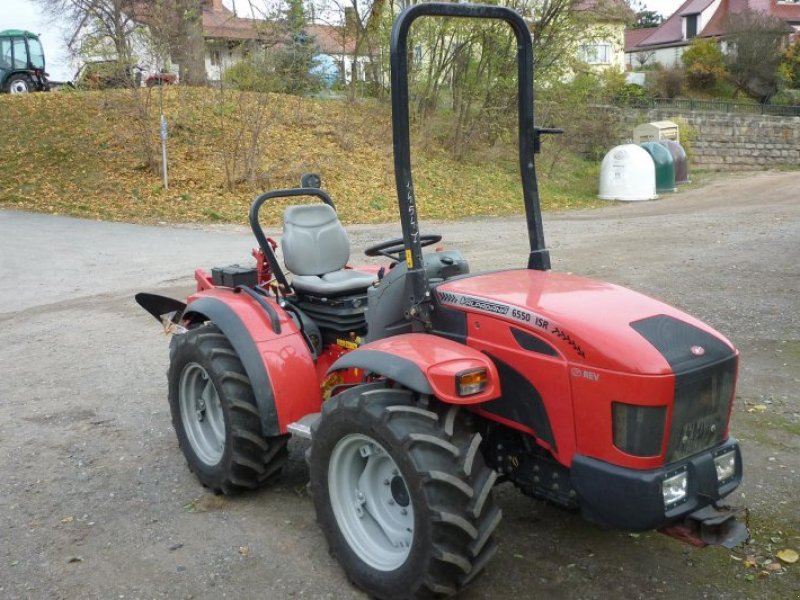

Valpadana 6550
Valpadana 6550 · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
1769 kg
Hover a source tag to verify
Overview
ManufacturerValpadanaReference
Built in San Martino, ItalyReference
Four-wheel driveReference
Wet disc brakesReference
Variants
ARMarticulated centerReference
ISMequal-size tires, lowReference
ISR-REVreversible platformReference
VRMoversize rear tiresReference
Engine
2.2L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine34.3 kWReference
4TNV88-KVAReference
dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement2.2 LReference
Power34.3 kWReference
Rated RPM2800Reference
Torque144.0 NmReference
Torque RPM1600Reference
Transmission
16-speedReference
Transmissionshuttle/creeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Valves3 optionalReference
Pump flow28.0 lpmReference
Total flow46.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift1700 kgReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase139 cmReference
Wheelbase151 cmReference
Weight1769 kgReference
Front tire250/80-16Reference
Rear tire320/70Reference
Ag front250/80-16Reference
Ag rear320/70 R20Reference
Ag front320/65 R18Reference
Ag rear320/65 R18Reference
Length323 cmReference
Length337 cmReference
Width126 cmReference
Width102 cmReference
Height129 cmReference
Ground clearance28 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
