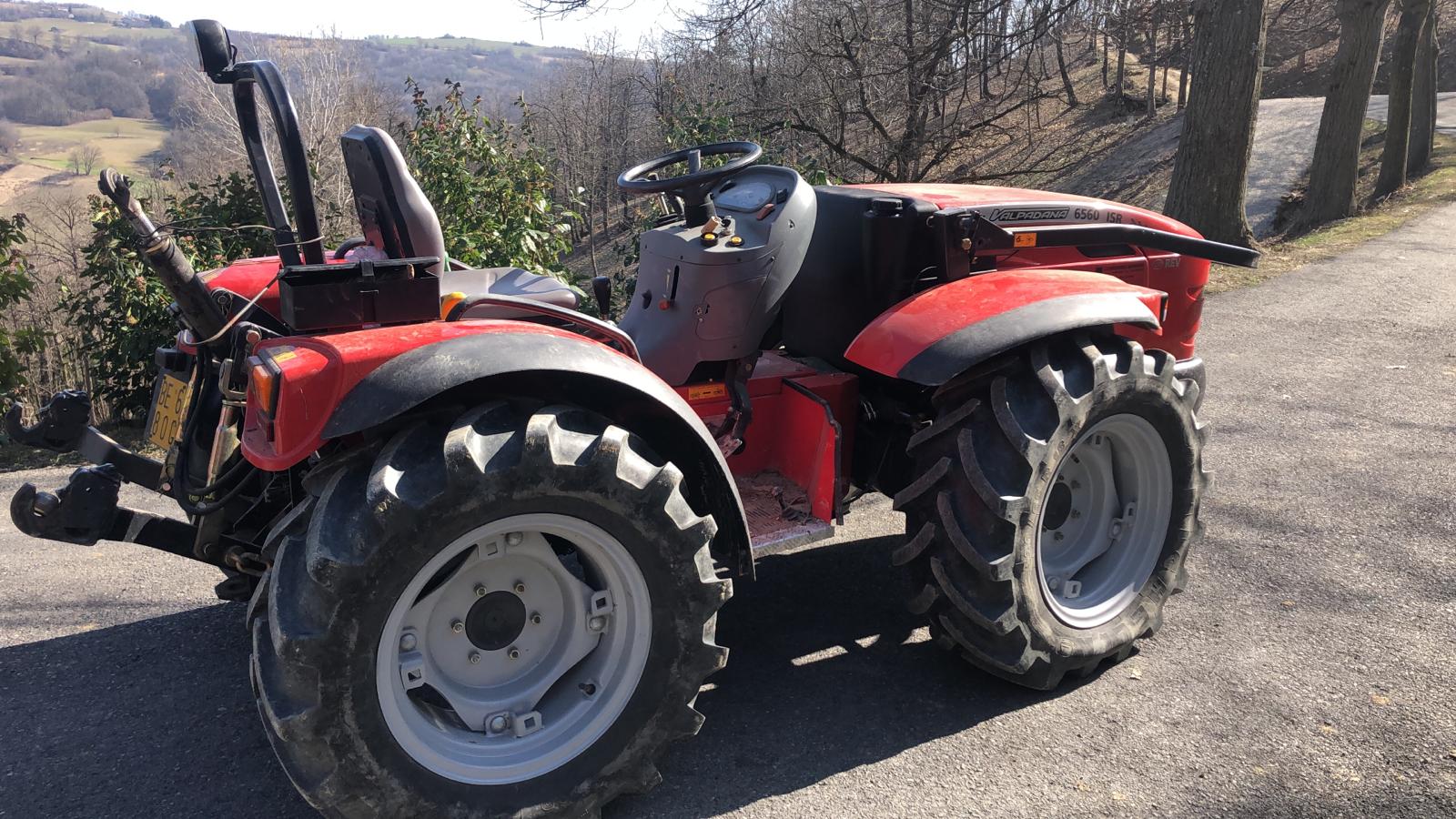

The Valpadana 6560 is a tractor rated at approximately 54 hp, which positions it at the lighter end of its class. It is powered by a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a 16-speed gearbox. The tractor has an operating weight of 1769 kg and is capable of handling operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
1769 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
54 hp
Recorded weight
1769 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerValpadanaReference
Built in San Martino, ItalyReference
Four-wheel driveReference
Wet disc brakesReference
Engine
2.0L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine40.4 kWReference
4TNV84T-KVAReference
turbo dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement2.0 LReference
Power40.4 kWReference
Rated RPM2800Reference
Torque164.1 NmReference
Torque RPM1600Reference
Transmission
16-speedReference
Transmissionshuttle/creeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Valves3 optionalReference
Pump flow28.0 lpmReference
Total flow46.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift1700 kgReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase139 cmReference
Wheelbase151 cmReference
Weight1769 kgReference
Front tire250/80-16Reference
Rear tire320/70Reference
Ag front250/80-16Reference
Ag rear320/70 R20Reference
Ag front320/65 R18Reference
Ag rear320/65 R18Reference
Length323 cmReference
Length337 cmReference
Width126 cmReference
Width102 cmReference
Height129 cmReference
Ground clearance28 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
