Tractor · 2004Unverified

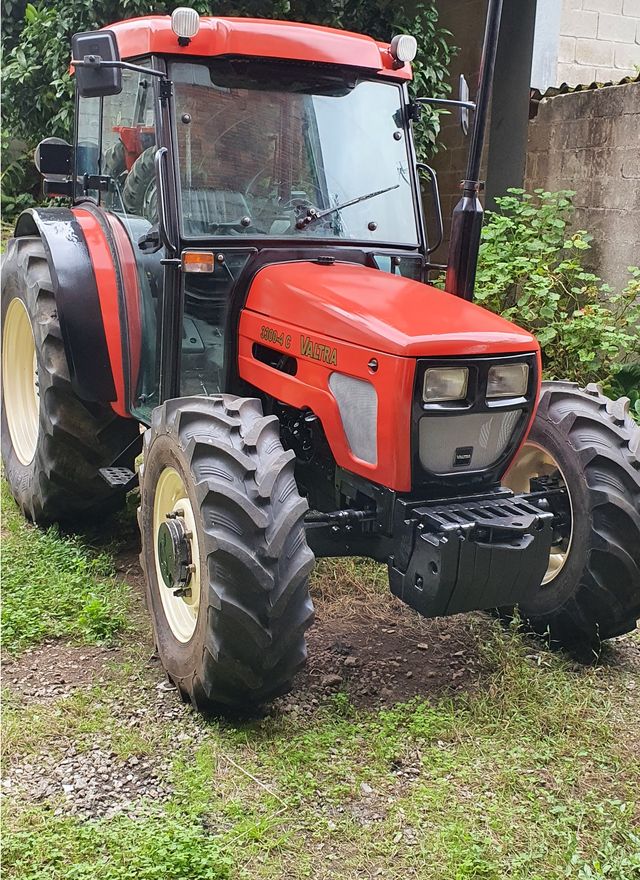

Valtra 3300
Valtra 3300 — Compact Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
4949 to 5964 pounds
Hover a source tag to verify
Overview
ManufacturerValtraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab optional with heat and A/CReference
Variants
3300Ccompact tractorReference
3300Fnarrow orchard tractorReference
3300Vultra-narrow vineyard tractorReference
Engine
Deutz 3.1L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine44.7 kWReference
Deutz F3L913Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke102 x 125 mmReference
Power44.7 kWReference
Rated RPM2400Reference
Torque194.0 NmReference
Torque RPM1550Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed partially synchronizedReference
Typepartially synchronizedReference
Gears24 forward and reverseReference
Four synchronized gears in three ranges with splitter.Reference
PTO & Hydraulics
Valves1 to 4Reference
Pump flow26.9 lpmReference
Steering flow20.1 lpmReference
Rear PTO Typeground/540/540EReference
Rear PTO Typeground/540/1000Reference
Dimensions
Wheelbase198 cmReference
Wheelbase209 cmReference
Weight4949 to 5964 poundsReference
Front tire6.50-16Reference
Rear tire14.9R28Reference
Ag front6.50-16 (2WD)Reference
Ag front11.2R20 (4WD)Reference
Ag rear14.9R28Reference
Ag front10.0/75-15.3 (orchard)Reference
Ag rear360/70-24 (orchard)Reference
Length375 cmReference
Width169 cmReference
Width132 cmReference
Width116 cmReference
Height (ROPS)257 cmReference
Height (cab)239 cmReference
Ground clearance36 cmReference
2WD ROPS2244 kgReference
2WD Cab2464 kgReference
4WD ROPS2464 kgReference
4WD Cab2705 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
