Tractor · 2004Unverified

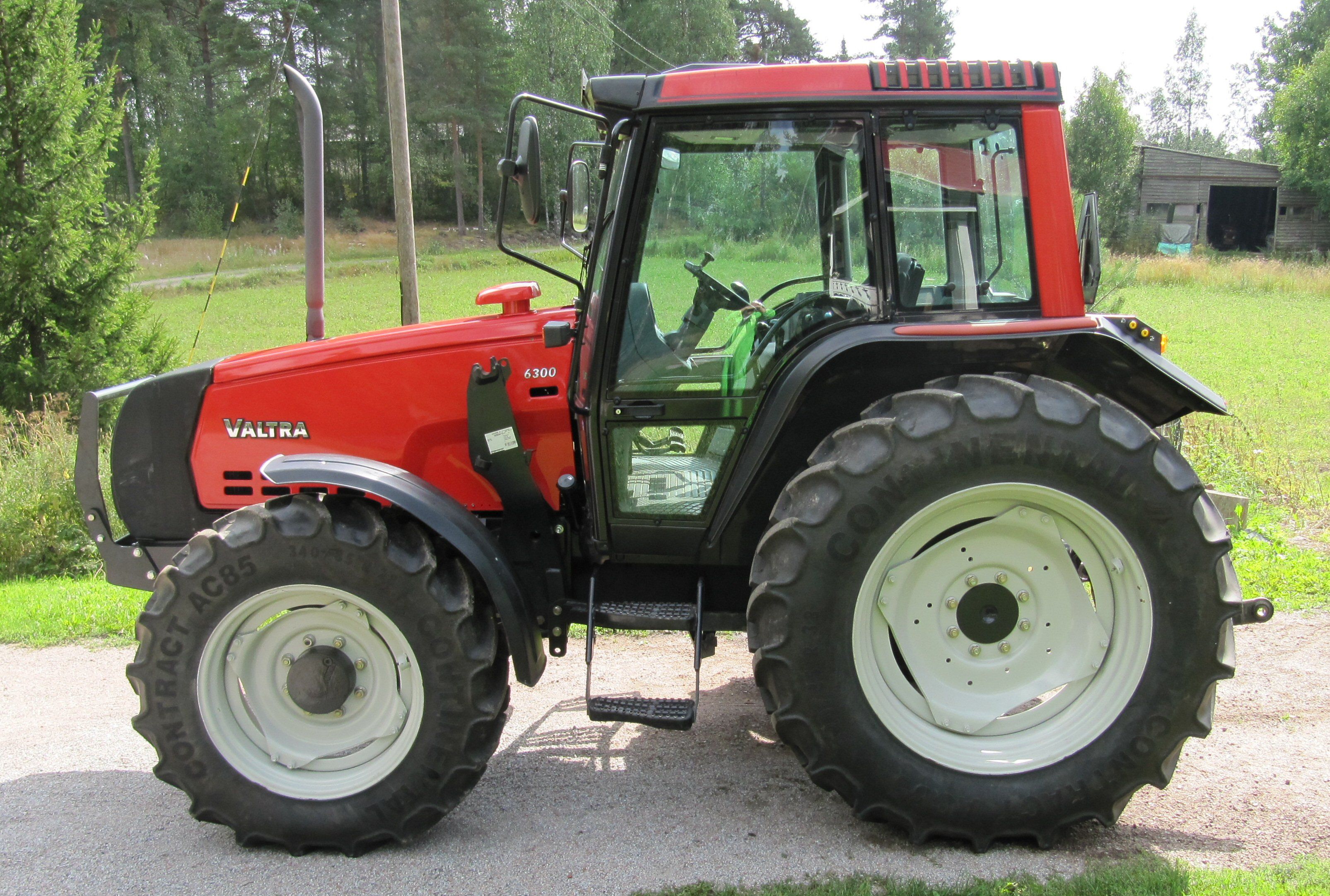

Valtra 3400
Valtra 3400 — Compact Utility tractor · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
5611 to 6096 pounds
Hover a source tag to verify
Overview
ManufacturerValtraReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab optional with heat and A/CReference
Variants
3400Ccompact tractorReference
3400Fnarrow orchard tractorReference
3400Vultra-narrow vineyard tractorReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine51.5 kWReference
Deutz F4L912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power51.5 kWReference
Rated RPM2300Reference
Torque230.0 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed partially synchronizedReference
Typepartially synchronizedReference
Gears24 forward and reverseReference
Four synchronized gears in three ranges with splitter.Reference
PTO & Hydraulics
Valves1 to 4Reference
Pump flow36.0 lpmReference
Steering flow26.9 lpmReference
Rear PTO Typeground/540/540EReference
Rear PTO Typeground/540/1000Reference
Dimensions
Wheelbase209 cmReference
Weight5611 to 6096 poundsReference
Front tire12.4R20Reference
Rear tire16.9R28Reference
Ag front12.4R20Reference
Ag rear16.9R28Reference
Ag front10.0/75-15.3 (orchard)Reference
Ag rear360/70-24 (orchard)Reference
Length384 cmReference
Width169 cmReference
Width132 cmReference
Width116 cmReference
Height (ROPS)257 cmReference
Height (cab)239 cmReference
ROPS Weight2545 kgReference
Cab Weight2765 kgReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
