Tractor · 2004Unverified
Valtra 3500
Valtra 3500 — Compact Utility tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
5038 to 6096 pounds
Hover a source tag to verify
Overview
ManufacturerValtraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab optional with heat and A/CReference
Variants
3500Ccompact tractorReference

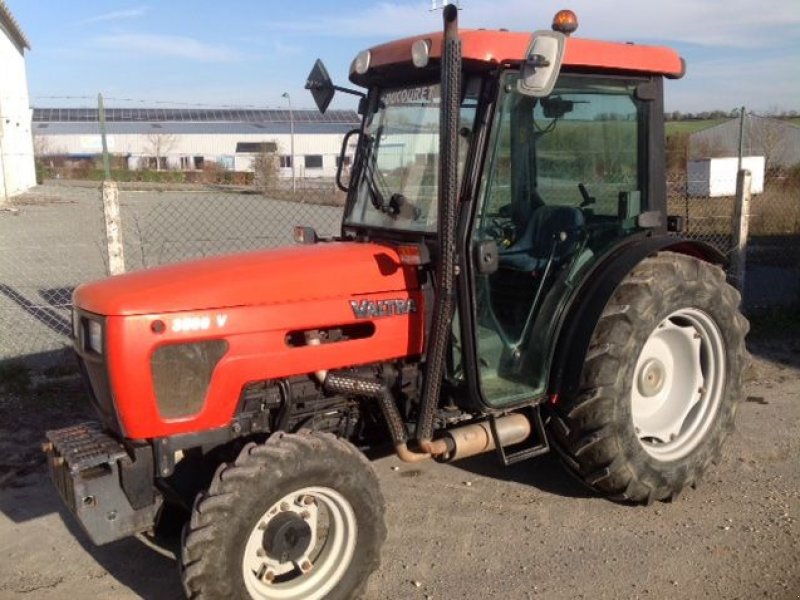

3500Fnarrow orchard tractorReference
3500Vultra-narrow vineyard tractorReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine56.7 kWReference
Deutz F4L913Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 125 mmReference
Power56.7 kWReference
Rated RPM2350Reference
Torque260.1 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed partially synchronizedReference
Typepartially synchronizedReference
Gears24 forward and reverseReference
Four synchronized gears in three ranges with splitter.Reference
PTO & Hydraulics
Valves1 to 4Reference
Pump flow36.0 lpmReference
Steering flow26.9 lpmReference
Rear PTO Typeground/540/540EReference
Rear PTO Typeground/540/1000Reference
Dimensions
Wheelbase211 cmReference
Wheelbase222 cmReference
Weight5038 to 6096 poundsReference
Front tire6.50-16Reference
Rear tire14.9R28Reference
Ag front6.50-16 (2WD)Reference
Ag front12.4R20 (4WD)Reference
Ag rear14.9R28Reference
Ag front10.0/75-15.3 (orchard)Reference
Ag rear360/70-24 (orchard)Reference
Length388 cmReference
Width169 cmReference
Width116 cmReference
Height (ROPS)257 cmReference
Height (cab)239 cmReference
Ground clearance39 cmReference
2WD ROPS2285 kgReference
2WD Cab2505 kgReference
4WD ROPS2545 kgReference
4WD Cab2765 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
