Tractor · 2003Unverified

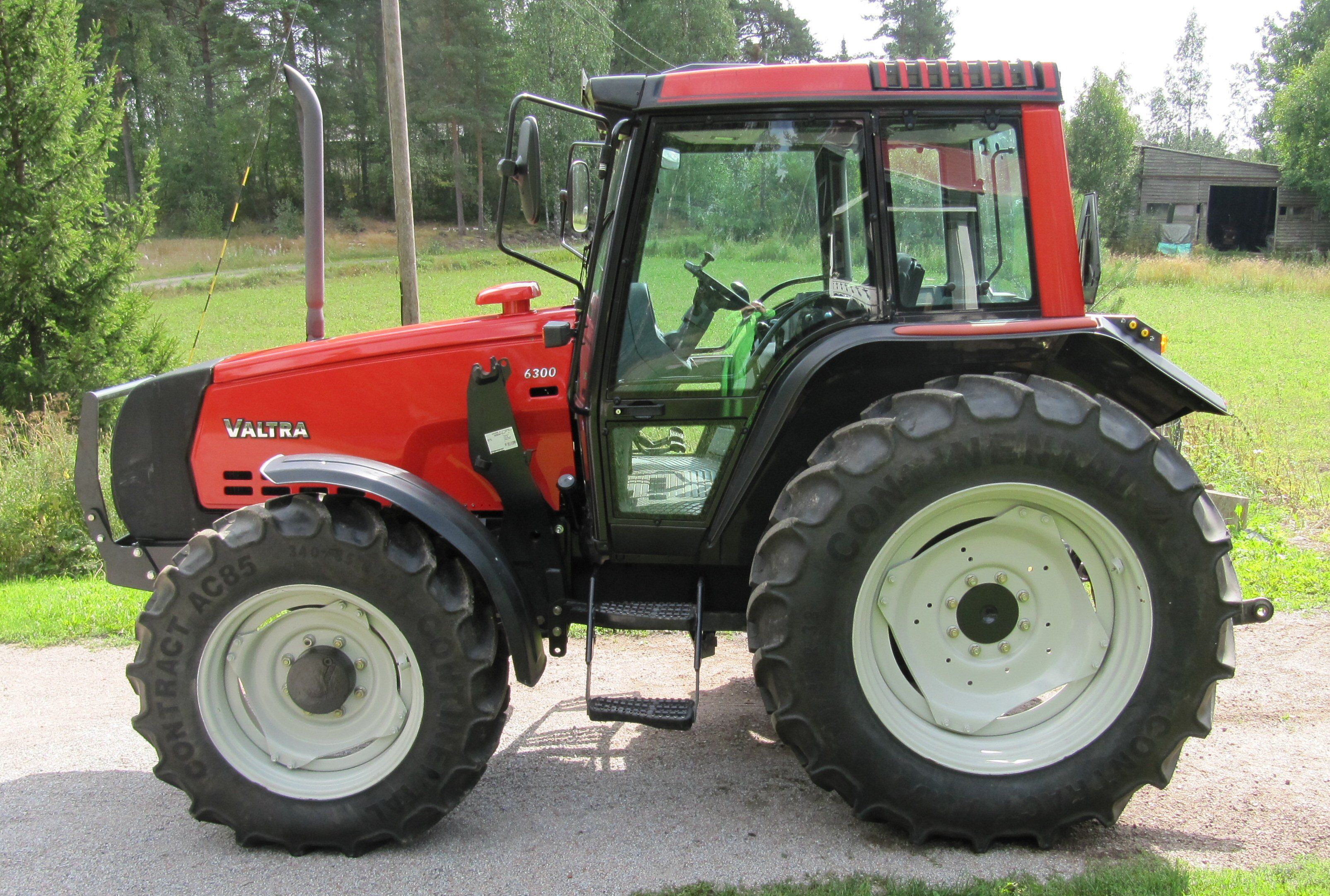

Valtra 6300
Valtra 6300 — Row-Crop tractor · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
4350 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standardReference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine74.0 kWReference
SisuDiesel 44DTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power74.0 kWReference
Rated RPM2200Reference
Torque405.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure190.0 barReference
Pump flow73.1 lpmReference
Rear TypeIII/IIReference
Rear lift (at ends)5600 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Engine RPM540@1874Reference
Engine RPM540E@1539Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase232 cmReference
Weight4350 kgReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
Length451 cmReference
Width228 cmReference
Height (cab)270 cmReference
Height (exhaust)274 cmReference
Clearance (front axle)42 cmReference
Clearance (rear axle)43 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Battery AH174Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
