Tractor · 2017Unverified

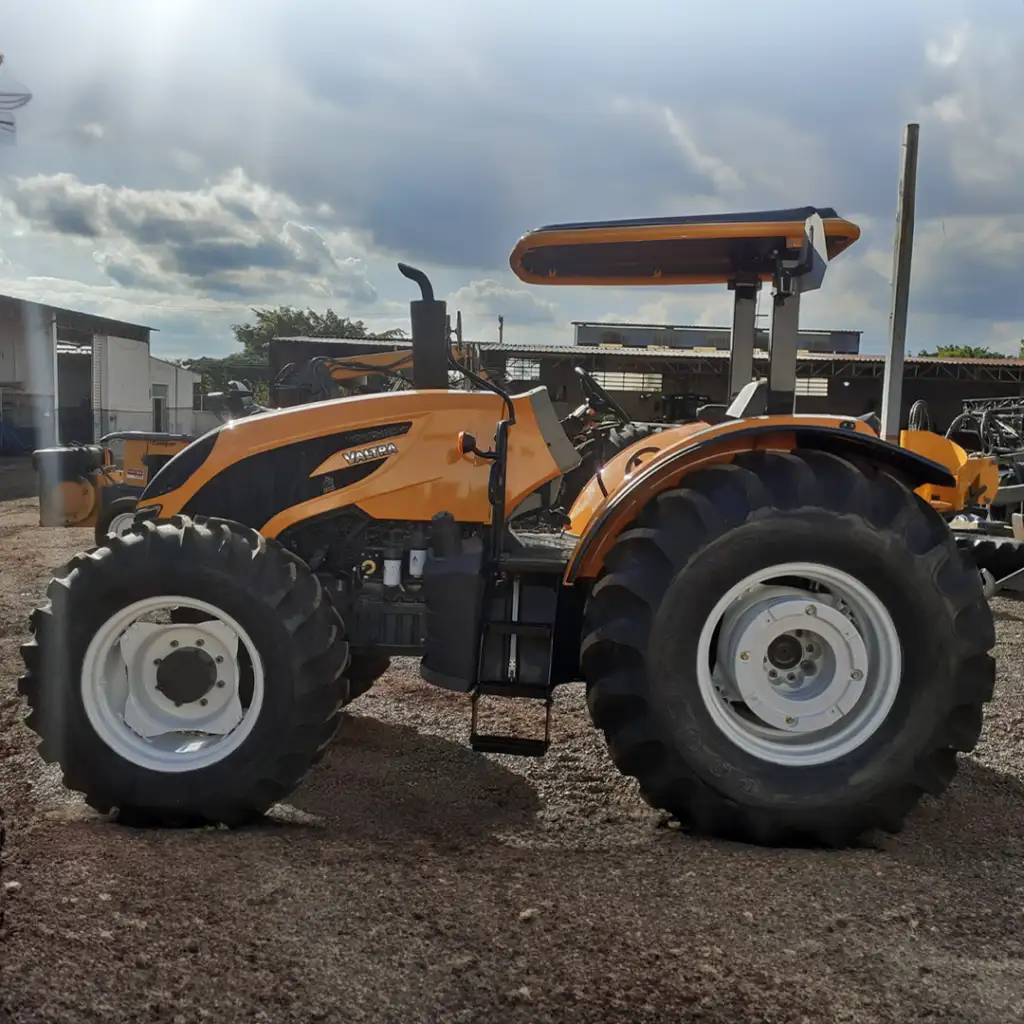

Valtra A134
Valtra A134 — A Series · 127 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
127 hp
Weight
4500 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Exhaust fluid (DEF)20.1 LReference
Engine94.7 kWReference
AGCO Power 44 AWFCReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power94.7 kWReference
Maximum Power96.9 kWReference
Torque539.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
24-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow98.0 lpmReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference
Dimensions
Wheelbase249 cmReference
Weight4500 kgReference
Length438 cmReference
Height (cab)271 cmReference
Clearance (front axle)43 cmReference
Operating4500 kgReference
Max front axle3499 kgReference
Max rear axle6400 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity8500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
