Tractor · 2021Unverified

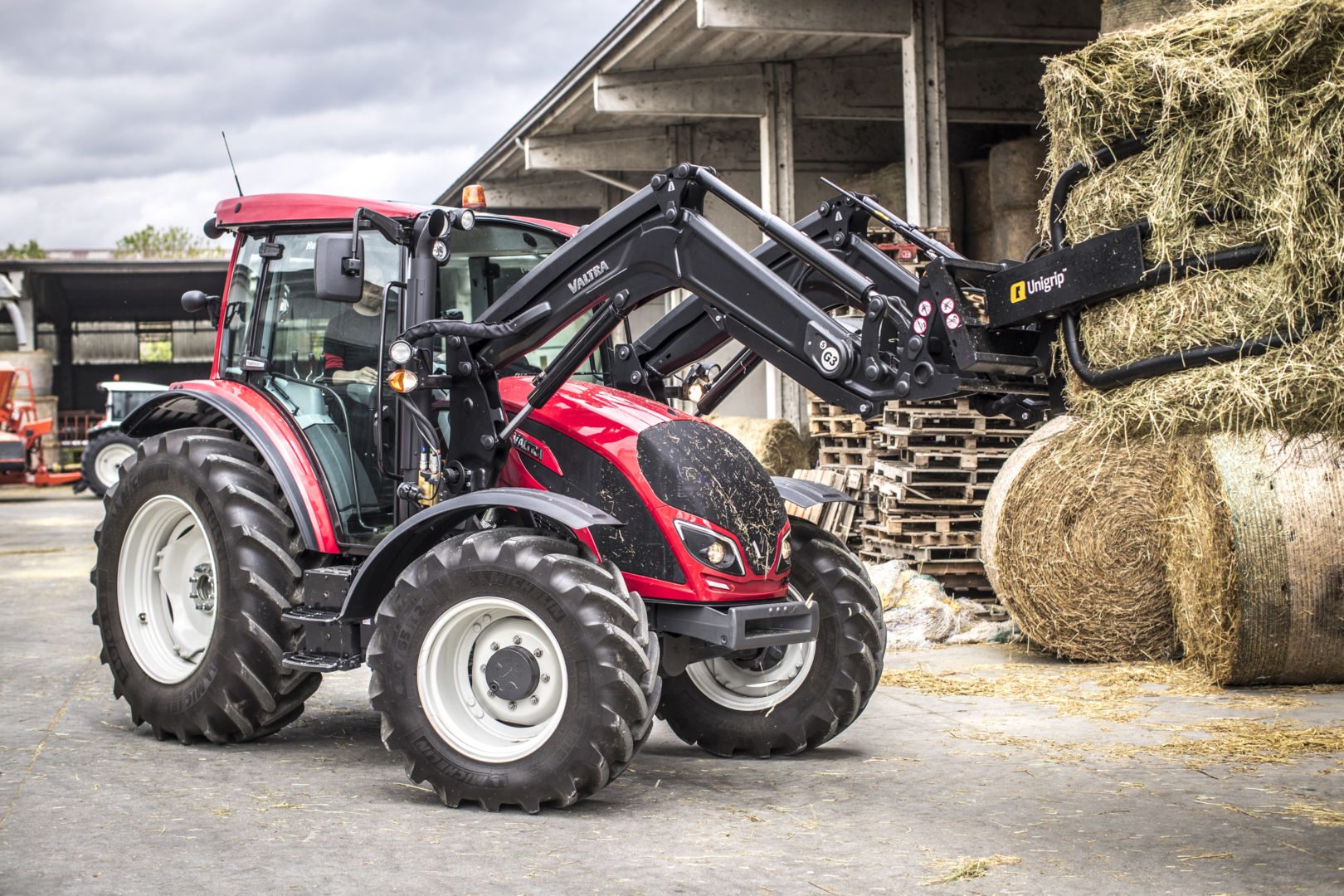

Valtra A135

Name: Valtra A135
Brand: Valtra

Valtra A135 — A Series · 135 hp. Reference specifications; pending source verification.

The Valtra A135 is a tractor with a rated power output of 135 hp, positioning it at the higher power end of its class. This model was introduced in 2021. It features a 4-cylinder turbocharged intercooled diesel engine, liquid-cooled, and is equipped with four-wheel drive and a powershift transmission. The tractor is suitable for operations covering a range of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

135 hp

Weight

8,500 kg (Maximum permissible weight)

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

135 hp

Transmissions

24-speed two-speed power shift

Production years

2021-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with available air-conditioning.Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

AGCO Power 44 AWFCReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsStage 5Reference

Maximum Power100.7 kWReference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,200 rpmReference

Emissions complianceStage VReference

Transmission

24-speed two-speed power shiftReference

TransmissionHiTech2Reference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Transmission TypePower ShuttleReference

forward and reverse options12x12Reference

forward speed range0-40 kmhReference

Wheel Drive4WDReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity4.4 LReference

Fuel tank175 LReference

Diesel exhaust fluid (DEF) tank13 LReference

Power

Max Power135 hpReference

PTO

Rear PTO PowerYesReference

Rear PTO RPM1,960Reference

Engine Speed on Rear PTO speed1,000Reference

Hydraulics

Pump Rated Output (total)98 l/minReference

Hydraulics TypeOpen CenterReference

Number of rear selective control valves (SCVs)2 or 3Reference

General

SCV controlJoystickReference

Dimensions & weight

Wheelbase2,500 mmReference

Overall Height2,824 mmReference

Overall Length4,389 mmReference

Overall Width2,361 mmReference

Ground Clearance434 mmReference

Turning radius4.5 m (without Brakes)Reference

Overall weight4,540 kgReference

Weight8,500 kg (Maximum permissible weight)Reference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
