Tractor · 2008Unverified

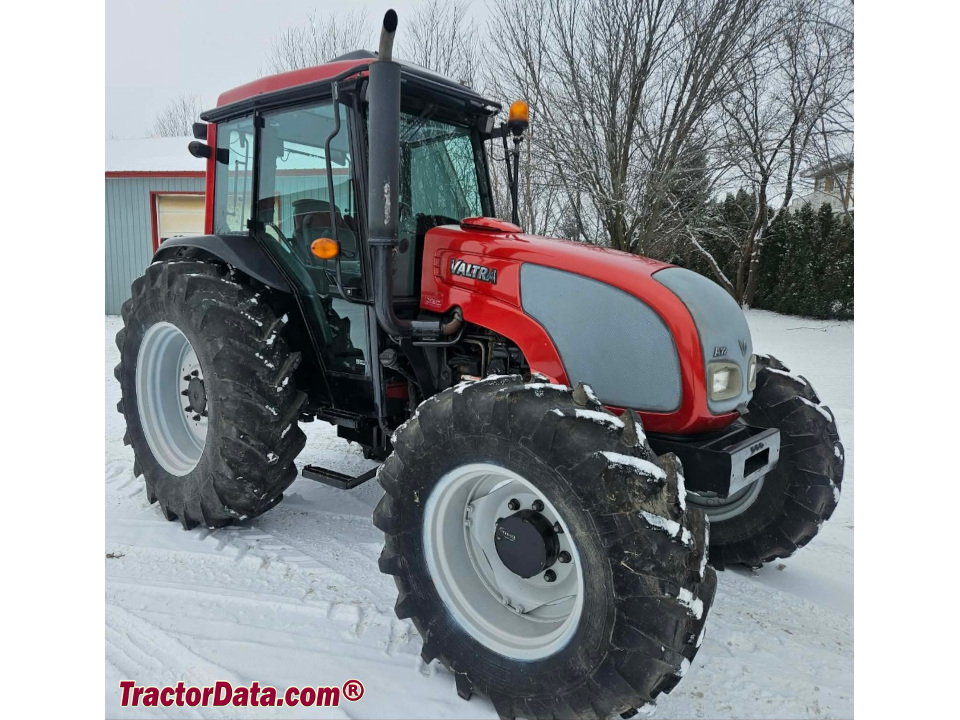

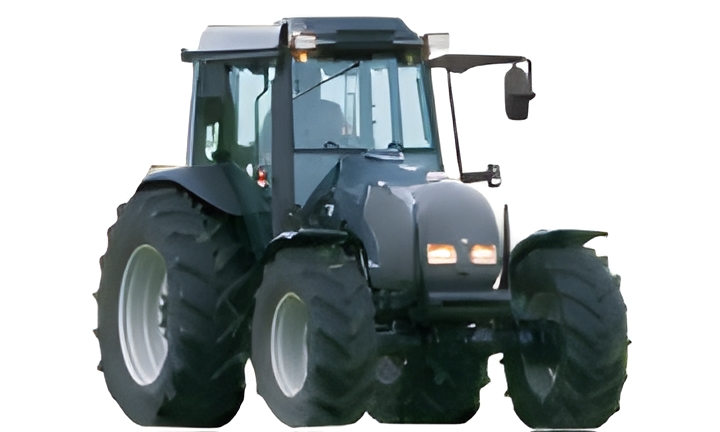

Valtra A72
Valtra A72 — A Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6614 to 7848 pounds
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Cab standard with heat. Air-conditioning available.Reference
Engine
SisuDiesel 3.3L 3-cyl dieselReference
Fuel tank79.1 LReference
Fuel tank102.2 LReference
Engine55.2 kWReference
SisuDiesel 33DTAReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier 3Reference
Power55.2 kWReference
Rated RPM2270Reference
Torque296.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears in three ranges with mechanical shuttle. Optional HiShift push-button clutch.Reference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow54.9 lpmReference
Rear lift2855 kgReference
Rear lift3364 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase238 cmReference
Weight6614 to 7848 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R30Reference
2WD Length395 cmReference
4WD Length405 cmReference
Width213 cmReference
Height (ROPS)259 cmReference
Height (cab)265 cmReference
2WD Ground clearance45 cmReference
4WD Ground clearance44 cmReference
2WD ROPS3000 kgReference
2WD Cab3329 kgReference
4WD ROPS3230 kgReference
4WD Cab3559 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Battery AH136Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
