Tractor · 2017Unverified

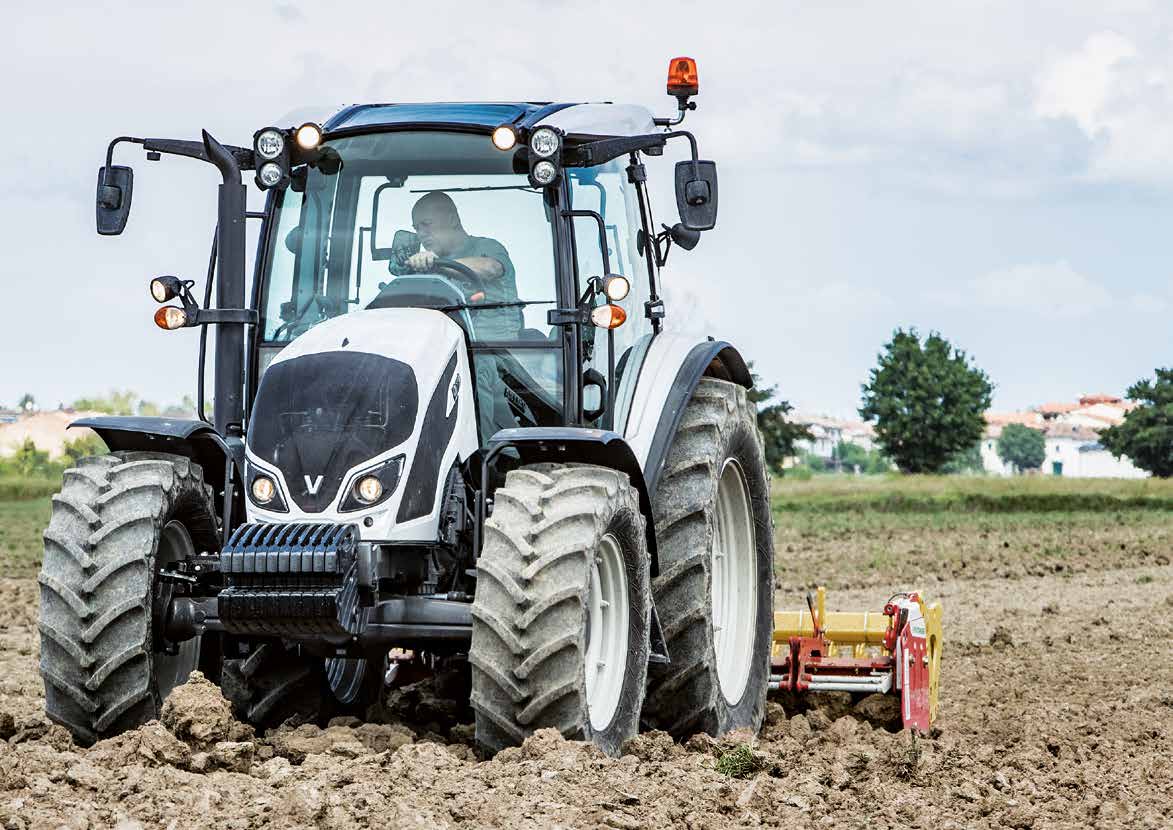

Valtra A74

Name: Valtra A74
Brand: Valtra

Valtra A74 — A Series · 72 hp. Reference specifications; pending source verification.

The Valtra A74 is a tractor model with a rated power of 72 hp, a mid-range figure for its class. It was manufactured from 2017 to 2020. Powering the A74 is a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The tractor has an operating weight of 3499 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Max power

72 hp

Weight

3499 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

72 hp

Recorded weight

3499 kg

Transmissions

12-speed power shuttle

Production years

2017-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with available air-conditioning.Reference

Engine

AGCO Power 3.3L 3-cyl dieselReference

Fuel tank149.9 LReference

Engine53.7 kWReference

AGCO Power 33 AWICReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

Power53.7 kWReference

Maximum Power55.9 kWReference

Torque311.9 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Engine torque at rated speed104.3 kgReference

Bore and stroke4.25x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed power shuttleReference

24-speed creeperReference

Typepower shuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears24 forward and reverseReference

Transmission TypePower ShuttleReference

forward and reverse optionsPowershuttle; 12 F & 12 R | Creeper; 24 F & 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Pump flow65.1 lpmReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540EReference

Engine RPM540@1920Reference

Engine RPM540E@1560Reference

Dimensions

Wheelbase225 cmReference

Weight3499 kgReference

Length407 cmReference

Height (cab)266 cmReference

Clearance (front axle)42 cmReference

Operating3499 kgReference

Max front axle3000 kgReference

Max rear axle5000 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Max capacity6200 kgReference

Capacity201.4 ciReference

Power

Max Power72 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@1,920rpm | 540E@1,560rpmReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

General

SCV controlJoystickReference

Dimensions & weight

Front axle clearance42.4 cmReference

Overall weight3,499.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
