Tractor · 2002Unverified

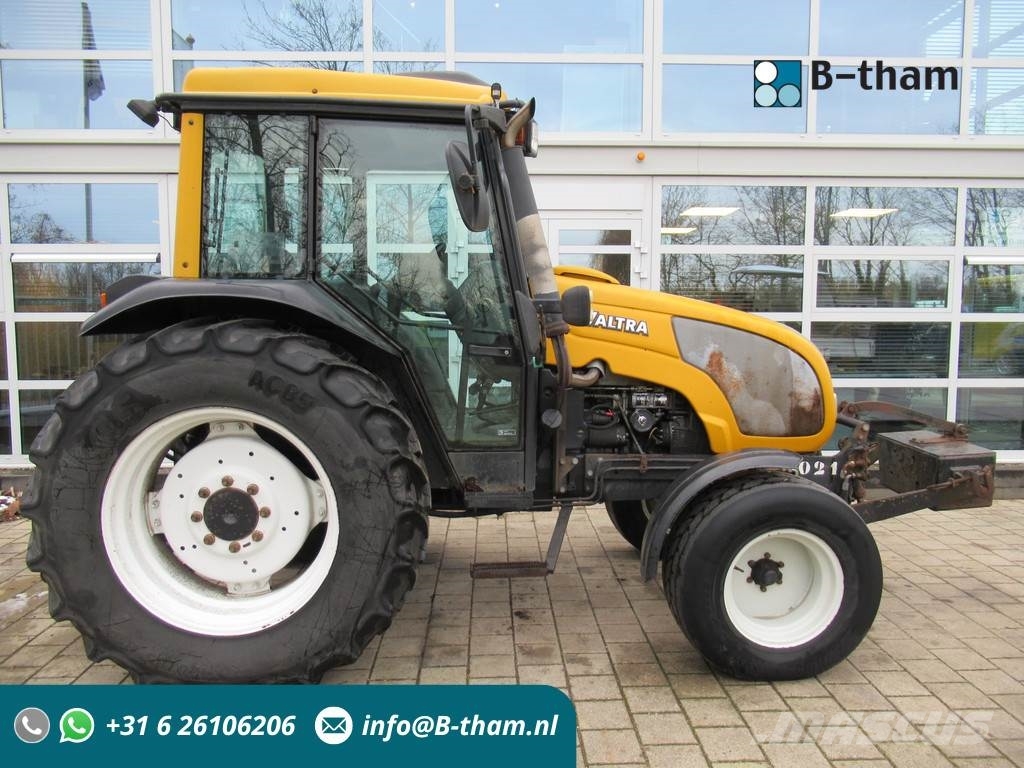

Valtra A75
Valtra A75 — Model year 2002-20042004-2008 · 74 hp. Reference specifications; pending source verification.
The Valtra A75 is a tractor with a rated output of 74 hp, positioning it within its class in terms of power. Produced from 2002 to 2008, the A75 features a 3-cylinder turbocharged liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight of the tractor ranges from 7011.9 to 7585 pounds, and it is suitable for tasks covering an area of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Max power
75 hp
Weight
7011.9 to 7585 pounds
Catalogue coverage
Variants represented
2
Richest spec table
62 rows
Recorded power
74 hp
Recorded weight
3180 kg
Transmissions
12-speed
Production years
2002-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerValtraReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
3.3L 3-cylReference
Fuel tank79.1 LReference
Engine55.2 kWReference
320 DSREReference
turbochargedReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power55.2 kWReference
Rated RPM2270Reference
Torque296.0 NmReference
Torque RPM1400Reference
Fuel TypeDieselReference
No of Cylinders3Reference
Rated engine speed2,200 rpmReference
Emissions complianceStage VReference
Transmission
12-speedReference
Gears12 forward and reverseReference
Transmission TypePower ShuttleReference
forward and reverse options24x24Reference
forward speed range0-40 kmhReference
Wheel Drive4WDReference
PTO & Hydraulics
Total flow37.1 lpmReference
Rear lift2800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase226 cmReference
Weight7011.9 to 7585 poundsReference
Front tire10.00-16Reference
Rear tire16.9R30Reference
Ag front10.00-16Reference
Ag rear16.9R30Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length386 cmReference
Height265 cmReference
Weight3180 kgReference
Weight3440 kgReference
Capacities
Capacity3.3 LReference
Diesel exhaust fluid (DEF) tank13 LReference
Power
Max Power75 hpReference
PTO
Rear PTO PowerYesReference
Rear PTO RPM1,000 rpmReference
Engine Speed on Rear PTO speed1,000Reference
Hydraulics
Pump Rated Output (total)65 l/minReference
Hydraulics TypeOpen CenterReference
Remote Valves3Reference
Number of rear selective control valves (SCVs)2 or 3Reference
General
SCV controlJoystickReference
Dimensions & weight
Overall Height2,714Reference
Overall Length4,078 mmReference
Overall Width2,207 mmReference
Ground Clearance390 mmReference
Turning radius3.72 m (without Brakes)Reference
Overall weight3,700 kgReference
Operator station
Cab AvailabilityTRUEReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
