Tractor · 2017Unverified

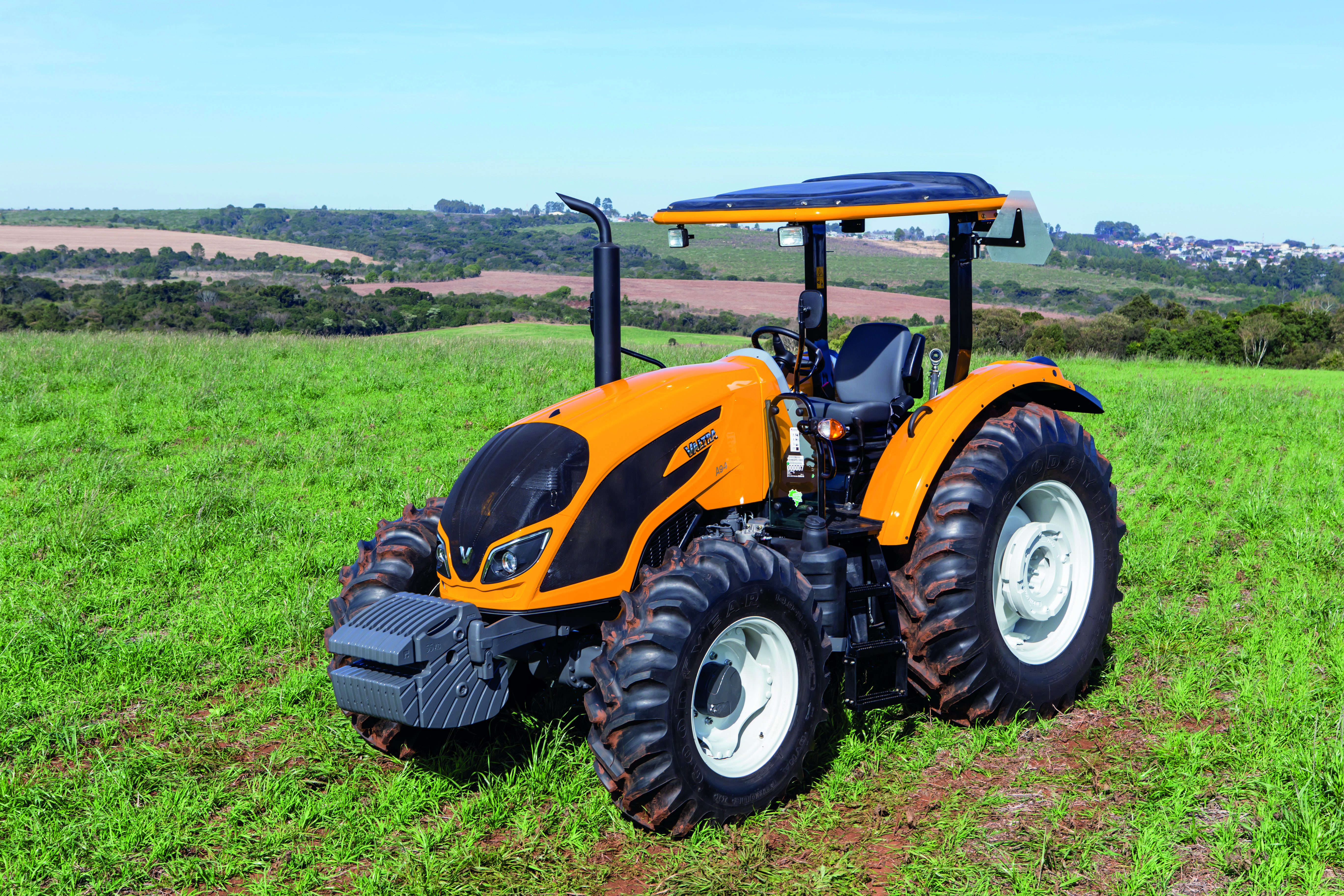

Valtra A94

Valtra A94 — A Series · 92 hp. Reference specifications; pending source verification.

The Valtra A94 is a tractor model rated at approximately 92 hp, a mid-range figure for its class. It was produced from 2017 to 2020. The A94 features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine and four-wheel drive with a 12-speed gearbox. Its operating weight is given as 3499 kg and it is suited to operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
92 hp
Max power
92 hp
Weight
3499 kg

Catalogue coverage

Variants represented
2
Richest spec table
67 rows
Recorded power
92 hp
Recorded weight
3499 kg
Transmissions
12-speed power shuttle
Production years
2017-2020
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference

Engine

AGCO Power 3.3L 3-cyl dieselReference
Fuel tank149.9 LReference
Exhaust fluid (DEF)20.1 LReference
Engine68.6 kWReference
AGCO Power 33 AWFCReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power68.6 kWReference
Maximum Power70.8 kWReference
Torque355.3 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Fuel TypeDieselReference
No of Cylinders3 cylinderReference
Engine torque at rated speed118.8 kgReference
Bore and stroke4.25x4.72 inchesReference
Cooling systemliquid-cooledReference

Transmission

12-speed power shuttleReference
24-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears24 forward and reverseReference
Transmission TypePower ShuttleReference
forward and reverse optionsPowershuttle; 12 F & 12 R | Creeper; 24 F & 24 RReference
Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference
Pump flow65.1 lpmReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference

Dimensions

Wheelbase225 cmReference
Weight3499 kgReference
Length407 cmReference
Height (cab)266 cmReference
Clearance (front axle)42 cmReference
Operating3499 kgReference
Max front axle3000 kgReference
Max rear axle5000 kgReference

Electrical

GroundnegativeReference
Battery volts12Reference

Capacities

Max capacity6200 kgReference
Capacity201.4 ciReference
Diesel exhaust fluid (DEF) tank20.1 LReference

Power

Max Power92 hpReference

PTO

Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Engine Speed on Rear PTO speed540@1,920rpm | 540E@1,560rpmReference

Steering & brakes

Brakeswet discReference
Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

General

SCV controljoystickReference

Dimensions & weight

Front axle clearance42.4 cmReference
Overall weight3,499.9 kgReference

Operator station

Cab AvailabilityavailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
