Tractor · 2004Unverified

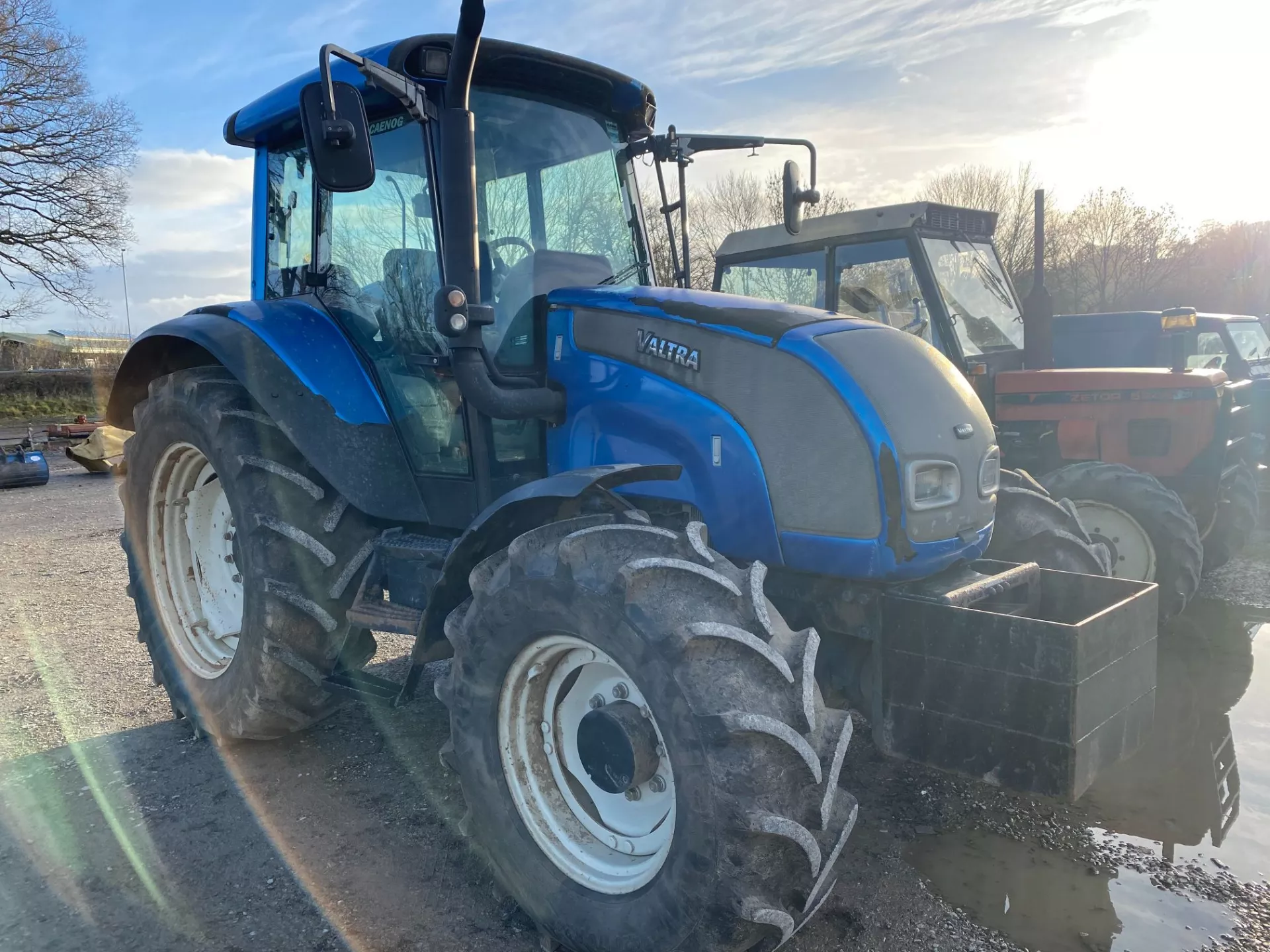

Valtra C120
Valtra C120 — C Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4848 kg
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomaticReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning.Reference
Variants
C120eEco-PowerReference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine89.5 kWReference
SisuDiesel 44EWAReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque500.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Starter power3.1 kWReference
Oil change500 hReference
Transmission
36-speed power shiftReference
Typepower shiftReference
Gears36 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
Typeload sensingReference
Pressure196.0 barReference
Valves2 to 4Reference
Total flow90.8 lpmReference
Rear Type3Reference
Rear lift (at ends)7198 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Rear PTO Type1000/540EReference
Rear PTO Type1000Reference
Engine RPM540@1874Reference
Engine RPM540E@1539Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase241 cmReference
Weight4848 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length442 cmReference
Width221 cmReference
Height (cab)284 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Battery AH174Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
