Tractor · 2020Unverified

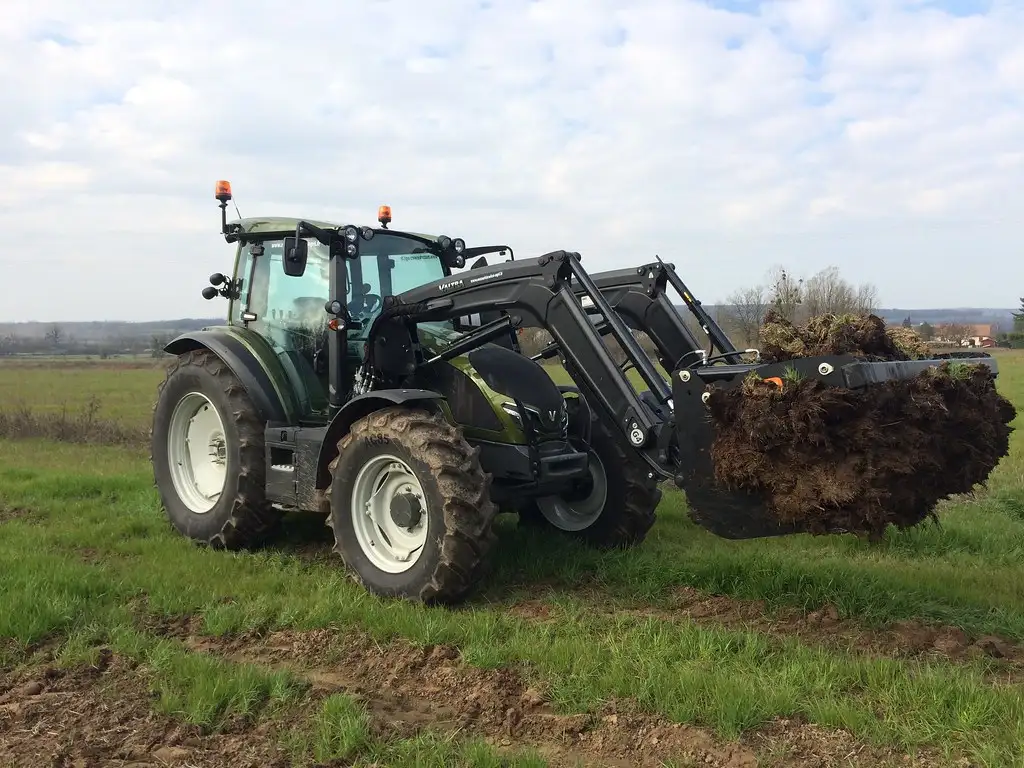

Valtra G115
Valtra G115 — G Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5140 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Valtra Guide ((Optional))Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank199.8 LReference
Fuel tank160.1 LReference
Exhaust fluid (DEF)21.2 LReference
Engine85.8 kWReference
AGCO Power 44 MBTN-D5Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsStage 5Reference
Power85.8 kWReference
Maximum Power89.5 kWReference
Rated RPM2200Reference
Idle RPM850-2200Reference
Starter typeelectricReference
Oil change600 hReference
Transmission
24-speed six-speed power shiftReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears in four ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Typeload sensingReference
Rear valves2 to 4Reference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Rear lift5098 kgReference
Front lift3059 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1920Reference
Engine RPM540E@1560Reference
Engine RPM1000@1964Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase255 cmReference
Weight5140 kgReference
Front tire340/85R24Reference
Rear tire420/85R34Reference
Standard tires (ag)Front: 340/85R24. Rear: 420/85R34Reference
Optional tires (ag)Front: 480/65R28. Rear: 600/65R38Reference
Length445 cmReference
Width237 cmReference
Height (cab)280 cmReference
Max weight9500 kgReference
Clearance (rear axle)45 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
