Tractor · 2020Unverified

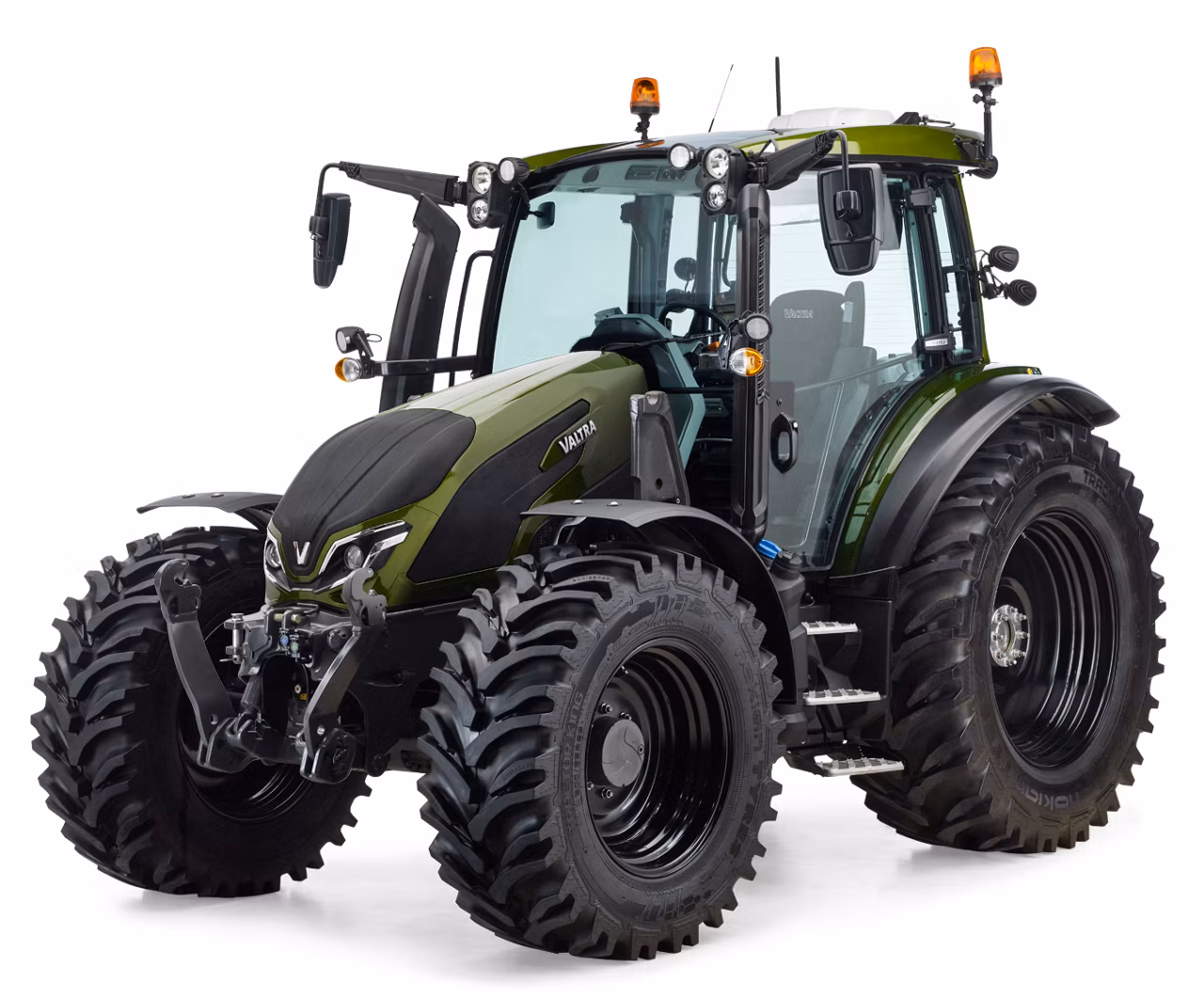

Valtra G135

Name: Valtra G135
Brand: Valtra

Valtra G135 — G Series · 135 hp. Reference specifications; pending source verification.

The Valtra G135 is a tractor with a rated power output of 135 hp, positioning it at the more powerful end of its class. Manufactured in 2020, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. It has an operating weight of 5140 kg and is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

145 hp (2,000 rpm)

Weight

5140 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

135 hp

Recorded weight

5140 kg

Transmissions

24-speed six-speed power shift

Production years

2020-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. Valtra Guide ((Optional))Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank199.8 LReference

Fuel tank160.1 LReference

Exhaust fluid (DEF)21.2 LReference

Engine100.7 kWReference

AGCO Power 44 MBTN-D5Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsStage 5Reference

Power100.7 kWReference

Maximum Power108.1 kWReference

Rated RPM2200Reference

Idle RPM850-2200Reference

Starter typeelectricReference

Oil change600 hReference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,200 rpmReference

Emissions complianceStage VReference

Engine torque at rated speed550 NmReference

Interval for engine oil change600 hReference

Transmission

24-speed six-speed power shiftReference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears in four ranges.Reference

Transmission TypePowershiftReference

forward and reverse options24x24Reference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeload sensingReference

Rear valves2 to 4Reference

Pump flow99.9 lpmReference

Pump flow110.1 lpmReference

Rear lift5098 kgReference

Front lift3059 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1920Reference

Engine RPM540E@1560Reference

Engine RPM1000@1964Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1920Reference

Dimensions

Wheelbase255 cmReference

Weight5140 kgReference

Front tire340/85R24Reference

Rear tire420/85R34Reference

Standard tires (ag)Front: 340/85R24. Rear: 420/85R34Reference

Optional tires (ag)Front: 480/65R28. Rear: 600/65R38Reference

Length445 cmReference

Width237 cmReference

Height (cab)280 cmReference

Max weight9500 kgReference

Clearance (rear axle)45 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Capacity4.4 lReference

Diesel exhaust fluid (DEF) tank21 LReference

Power

Max Power145 hp (2,000 rpm)Reference

Rated Power135 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Engine Speed on Rear PTO speed1,964 rpmReference

Engine Speed on Front PTO speed1,920 rpmReference

Hydraulics

Pump Rated Output (total)110 l/minReference

Hydraulics TypeOpen center/Load SensingReference

Remote Valves8Reference

Rear Hitch maximum lift capacity60 kNReference

General

SCV controlJoystick: AvailableReference

Dimensions & weight

Overall Height2,805 mmReference

Overall Length4,452 mmReference

Overall Width2,380 mmReference

Ground Clearance443 mmReference

Turning radius4.36 m (without Brakes)Reference

Overall weight5,140 kgReference

Operator station

Cab AvailabilityTRUEReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
