Tractor · 2003Unverified

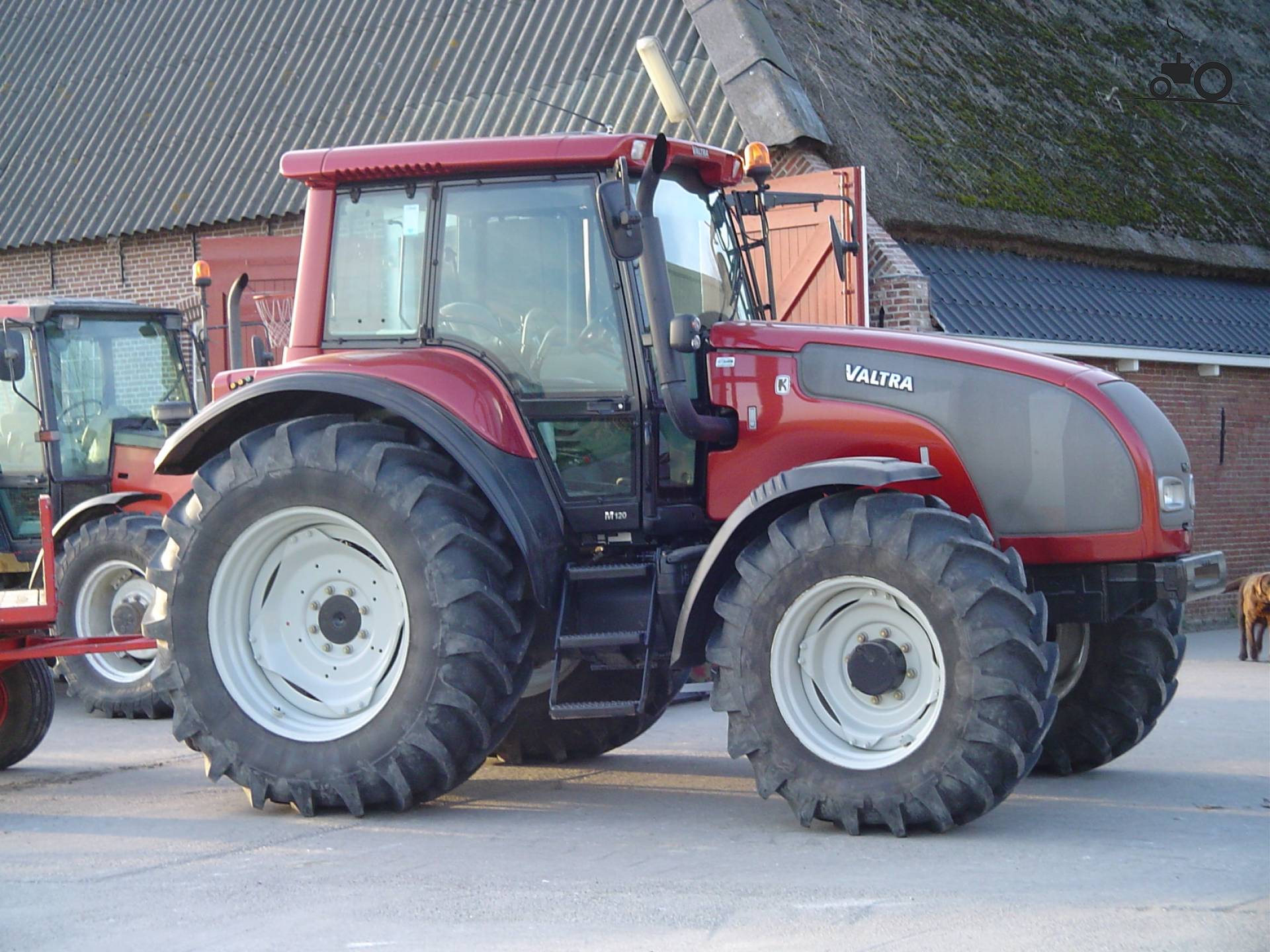

Valtra M120
Valtra M120 — M Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5131 kg
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine89.5 kWReference
SisuDiesel 44EWAReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque500.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed partial power shiftReference
TransmissionHiTechReference
Typepartial power shiftReference
Gears36 forward and reverseReference
Clutchwet discReference
Twelve gears with three-speed power shift.Reference
PTO & Hydraulics
Typeload sensingReference
Pressure196.0 barReference
Total flow90.8 lpmReference
Rear TypeIII/IIReference
Rear lift7201 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase256 cmReference
Weight5131 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length489 cmReference
Width233 cmReference
Height296 cmReference
Clearance (front axle)53 cmReference
Clearance (rear axle)53 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH160Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
