Tractor · 2003Unverified

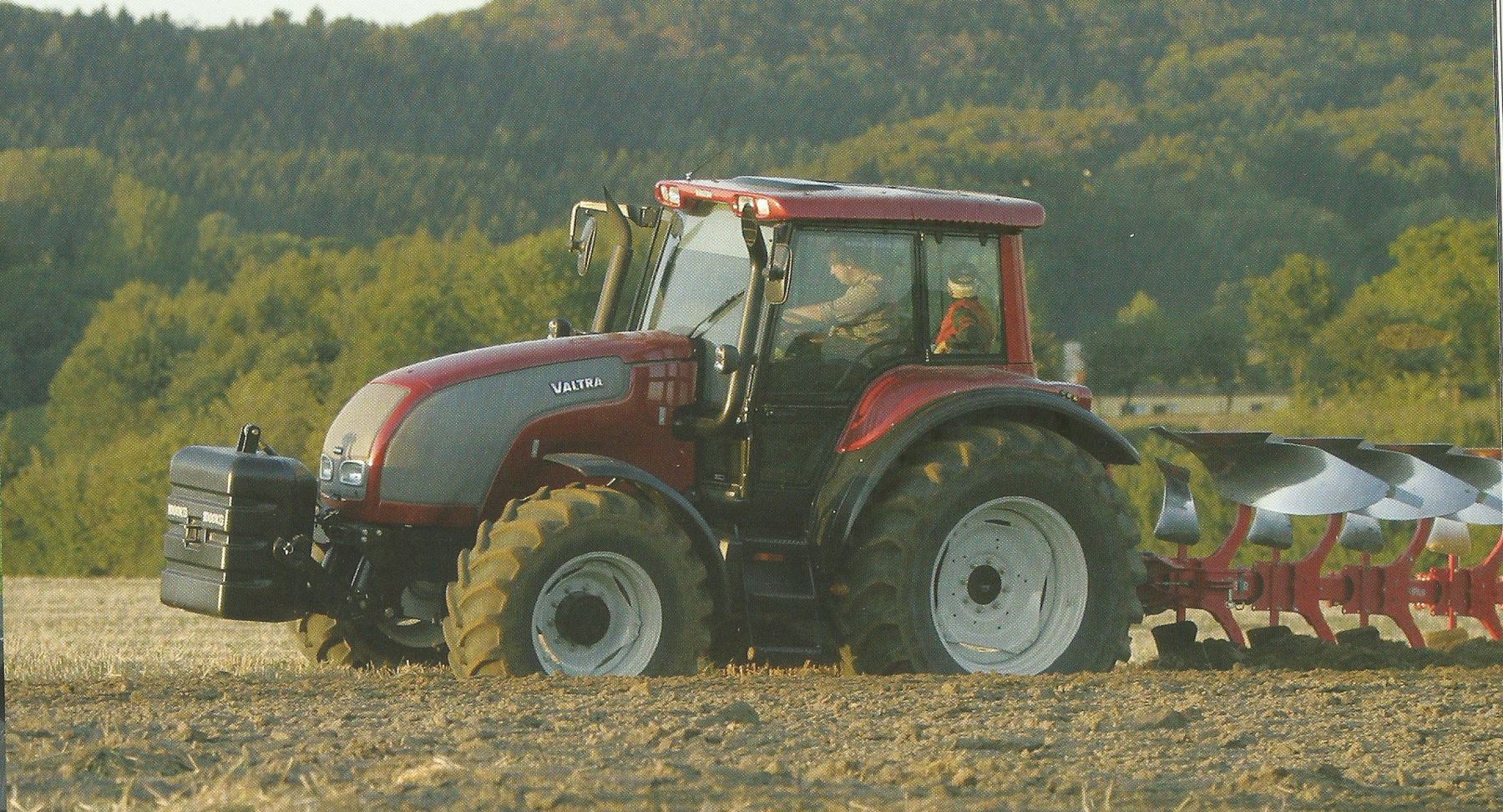

Valtra M120e

Name: Valtra M120e
Brand: Valtra

Valtra M120e — M Series · 120 hp. Reference specifications; pending source verification.

The Valtra M120e is a 120 hp tractor model positioned at the high-power end of its class. It was manufactured between 2003 and 2006. The tractor features a 4-cylinder turbocharged intercooled diesel engine, coupled with four-wheel drive and a powershift transmission. Its operating weight is listed at 5131 kg, making it suitable for operations covering 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Weight

5131 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

120 hp

Recorded weight

5131 kg

Transmissions

36-speed partial power shift

Production years

2003-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtraReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

SisuDiesel 4.4L 4-cyl dieselReference

Fuel tank160.1 LReference

Engine89.5 kWReference

SisuDiesel 44EWAReference

intercooled turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power89.5 kWReference

Rated RPM1800Reference

Torque580.1 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Transmission

36-speed partial power shiftReference

TransmissionHiTechReference

Typepartial power shiftReference

Gears36 forward and reverseReference

Clutchwet discReference

Twelve gears with three-speed power shift.Reference

PTO & Hydraulics

Typeload sensingReference

Pressure196.0 barReference

Total flow82.1 lpmReference

Rear TypeIII/IIReference

Rear lift7201 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1648Reference

Engine RPM1000@1750Reference

Dimensions

Wheelbase256 cmReference

Weight5131 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length489 cmReference

Width233 cmReference

Height296 cmReference

Clearance (front axle)53 cmReference

Clearance (rear axle)53 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Battery AH160Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
