Tractor · 2003Unverified

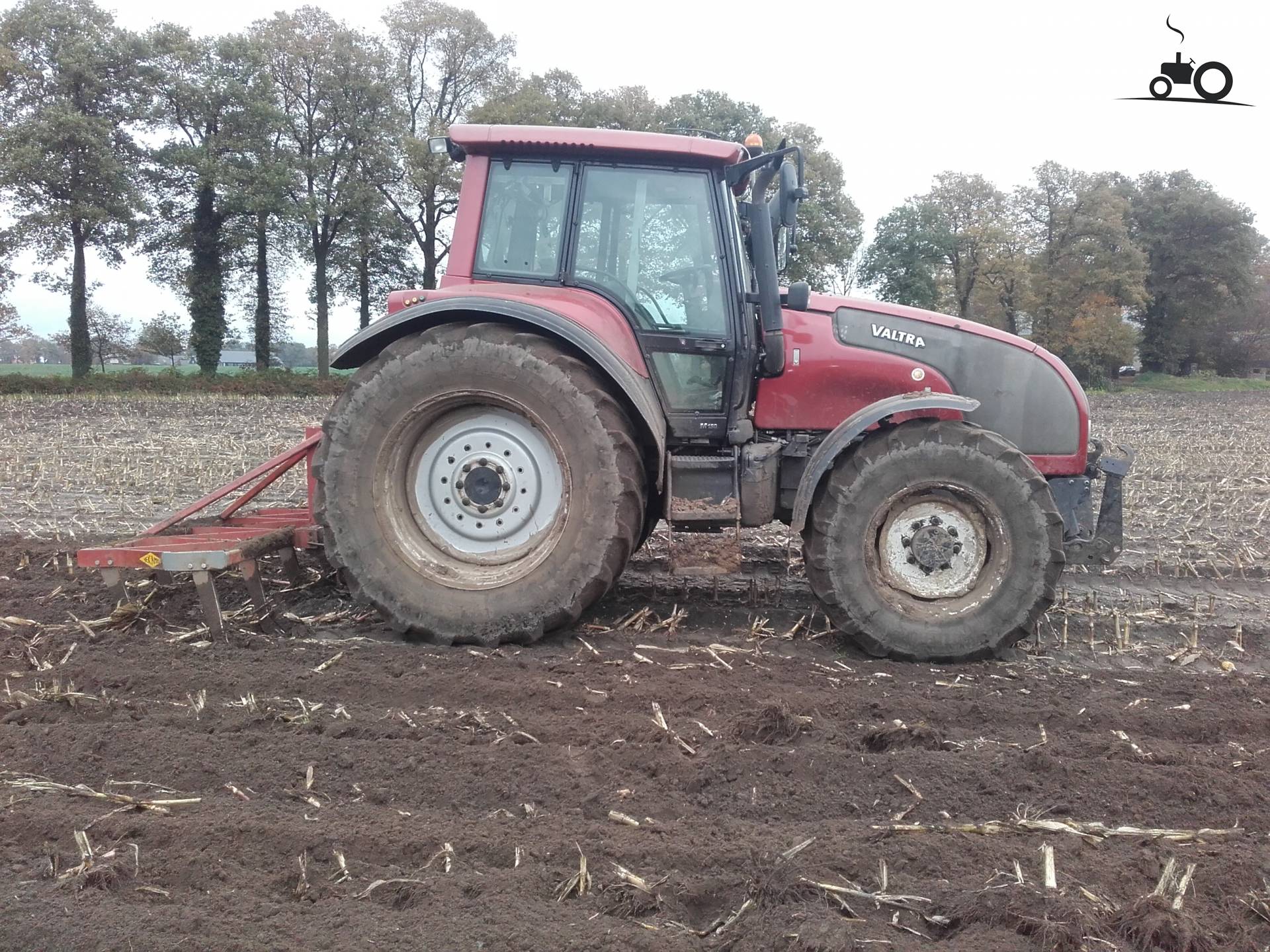

Valtra M150
Valtra M150 — M Series · 150 hp. Reference specifications; pending source verification.
The Valtra M150 is a tractor model with a rated output of 150 hp, positioning it among the higher-powered machines in its class. It was manufactured from 2003 to 2006. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. Its listed weight is 5450 kg, and it is generally suited to applications of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
5450 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
150 hp
Recorded weight
5450 kg
Transmissions
36-speed partial power shift
Production years
2003-2006
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
SisuDiesel 4.4L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine111.9 kWReference
SisuDiesel 44EWAReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power111.9 kWReference
Rated RPM2200Reference
Torque580.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed partial power shiftReference
TransmissionHiTechReference
Typepartial power shiftReference
Gears36 forward and reverseReference
Clutchwet discReference
Twelve gears with three-speed power shift.Reference
PTO & Hydraulics
Typeload sensingReference
Pressure196.0 barReference
Total flow90.8 lpmReference
Rear TypeIII/IIReference
Rear lift7201 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase256 cmReference
Weight5450 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length489 cmReference
Width233 cmReference
Height297 cmReference
Clearance (front axle)53 cmReference
Clearance (rear axle)53 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH160Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
