Tractor · 2015Unverified

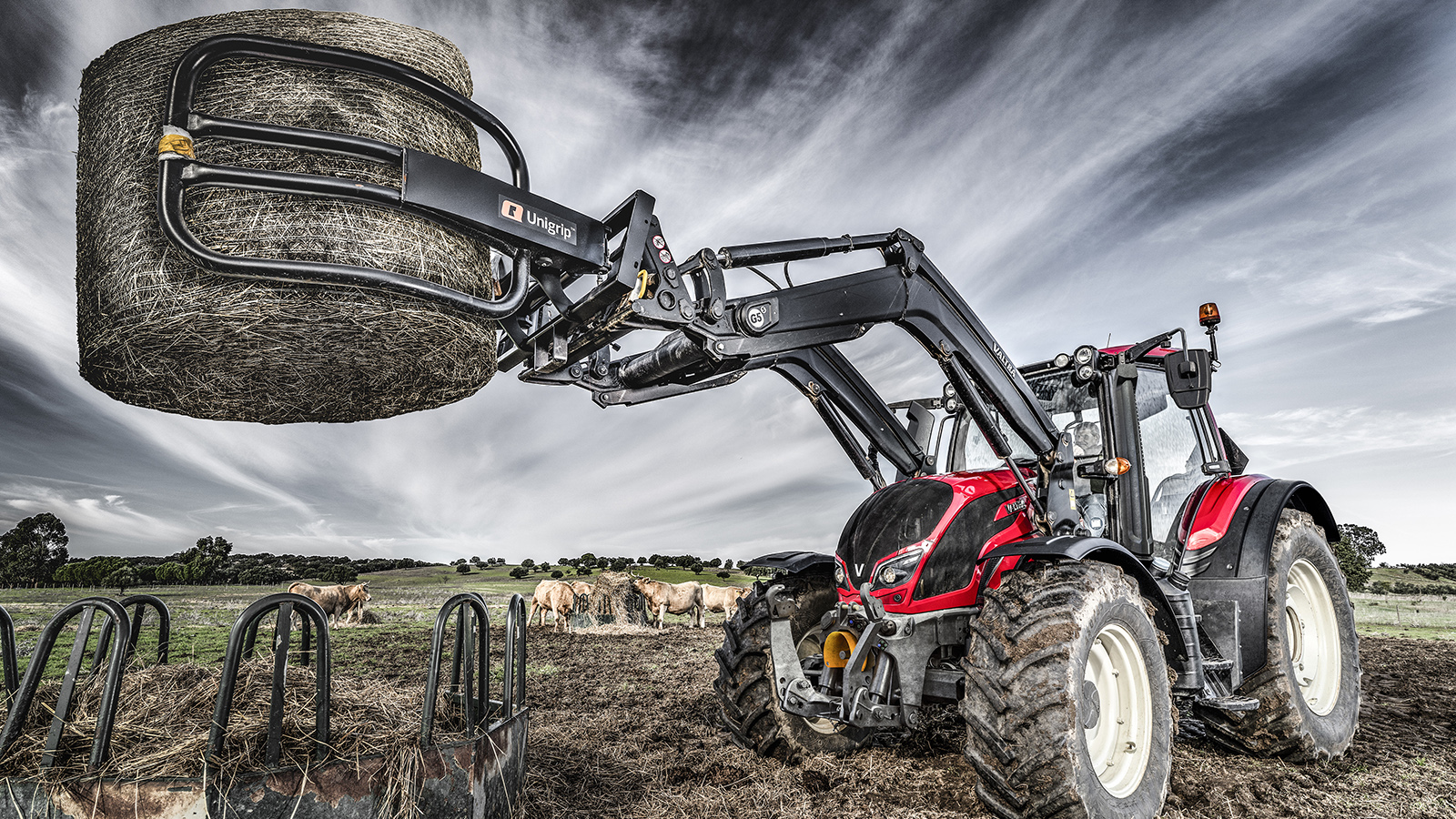

Valtra N124
Valtra N124 — N Series · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
6300 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank235.0 LReference
Fuel tank314.9 LReference
Fuel tank160.1 LReference
Exhaust fluid (DEF)45.0 LReference
Engine92.0 kWReference
AGCO Power 44 AWFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsStage 4Reference
Power92.0 kWReference
Maximum Power99.0 kWReference
Rated RPM2100Reference
Torque550.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed five-speed power shiftReference
TransmissionHi TechReference
Typefive-speed power shiftReference
Gears30 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Typeclosed centerReference
Rear valves2 to 5Reference
Pump flow73.1 lpmReference
Pump flow90.1 lpmReference
Pump flow115.1 lpmReference
Pump flow160.1 lpmReference
Pump flow199.8 lpmReference
Rear lift6423 kgReference
Rear lift7953 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase266 cmReference
Weight6300 kgReference
Length465 cmReference
Height (cab)295 cmReference
Operating weight6300 kgReference
Max weight10000 kgReference
Ground clearance55 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
