Tractor · 2015Unverified

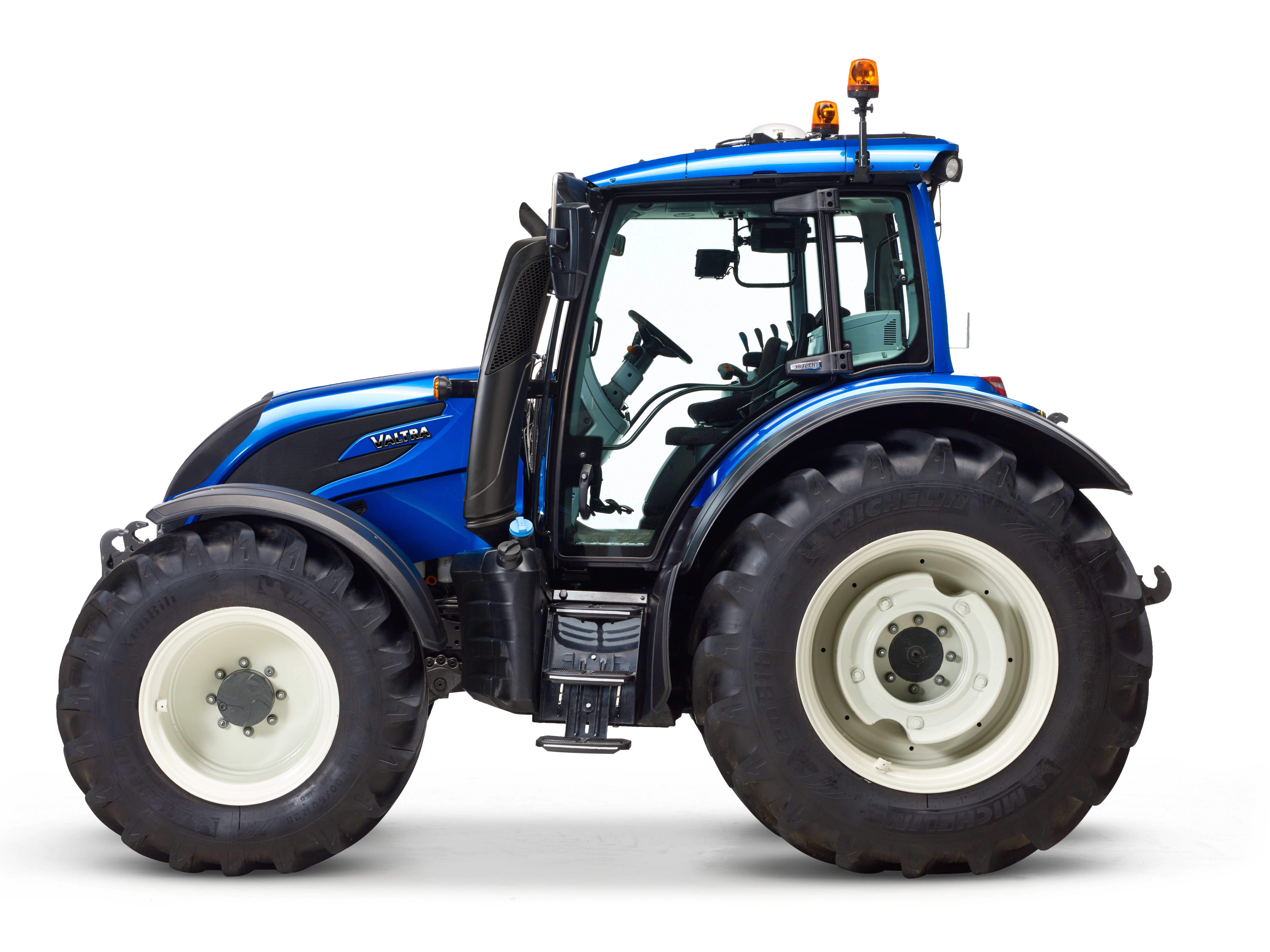

Valtra N174

Name: Valtra N174
Brand: Valtra

Valtra N174 — N Series · 162 hp. Reference specifications; pending source verification.

The Valtra N174 is a tractor with a rated power output of 162 hp, positioning it among the higher-powered machines in its class. Manufactured from 2015 to 2020, the N174 is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The listed weight of the N174 is 6300 kg, and it is designed for use on areas ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

162 hp

Max power

198.5 hp

Weight

6300 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

162 hp

Recorded weight

6300 kg

Transmissions

30-speed five-speed power shift

Production years

2015-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank235.0 LReference

Fuel tank314.9 LReference

Fuel tank160.1 LReference

Exhaust fluid (DEF)45.0 LReference

Engine121.0 kWReference

AGCO Power 49 AWFReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage 4Reference

Power121.0 kWReference

Maximum Power148.0 kWReference

Rated RPM2100Reference

Torque680.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage 4Reference

Engine torque at rated speed227.5 kgReference

Bore and stroke4.25x5.28 inchesReference

Cooling systemliquid-cooledReference

Transmission

30-speed five-speed power shiftReference

continuously-variable transmissionReference

TransmissionHi TechReference

Typefive-speed power shiftReference

Gears30 forward and reverseReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed centerReference

Rear valves2 to 5Reference

Pump flow73.1 lpmReference

Pump flow90.1 lpmReference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Pump flow199.8 lpmReference

Rear lift7953 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase266 cmReference

Weight6300 kgReference

Length465 cmReference

Height (cab)295 cmReference

Operating weight6300 kgReference

Max weight11000 kgReference

Ground clearance55 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelValtra (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Capacities

Capacity299.8 ciReference

Diesel exhaust fluid (DEF) tank45 LReference

Power

Max Power198.5 hpReference

Rated Power162.3 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesWet DiscReference

Steering typePowerReference

Hydraulics

Hydraulics TypeOpen Center | Closed CenterReference

Remote Valves2 to 5 ValvesReference

Rear Hitch maximum lift capacity7,953.3 kgReference

Dimensions & weight

Height Over Cab295.9 cmReference

Overall Length465.6 cmReference

Overall weight6,299.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
