Tractor · 2021Unverified

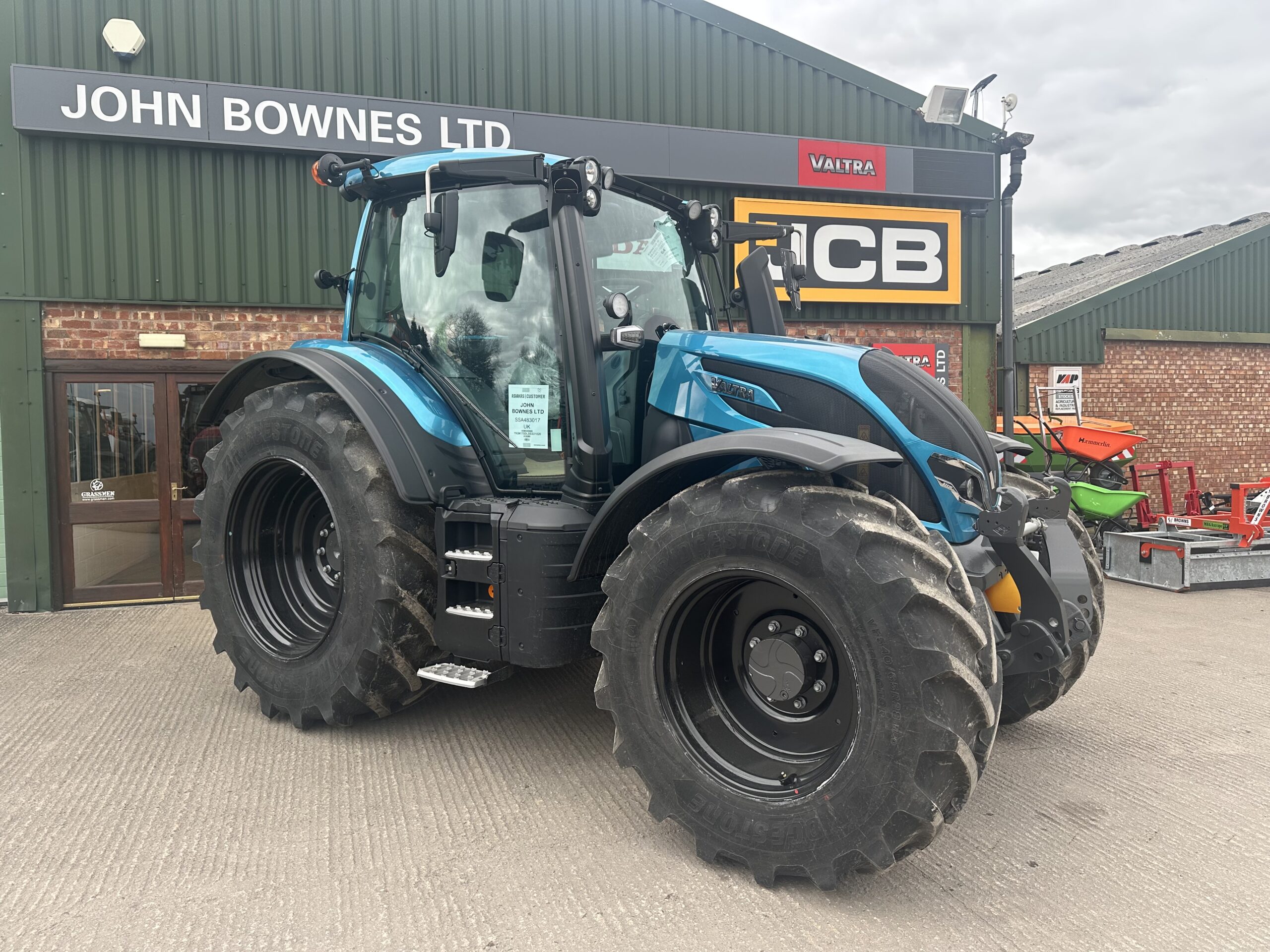

Valtra N175

Name: Valtra N175
Brand: Valtra

Valtra N175 — N Series · 162 hp. Reference specifications; pending source verification.

The Valtra N175 is a tractor with a rated power of 162 hp, positioning it at the powerful end of its class. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a powershift transmission and four-wheel drive. The tractor has an operating weight of 6500 kg, and is suitable for operations spanning approximately 600–1,500 acres. It was manufactured in 2021.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

162 hp

Max power

201 hp (2,000 rpm)

Weight

6500 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

162 hp

Recorded weight

6500 kg

Transmissions

20-speed five-speed power shift

Production years

2021-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank235.0 LReference

Fuel tank314.9 LReference

Fuel tank160.1 LReference

Exhaust fluid (DEF)45.0 LReference

Engine121.0 kWReference

AGCO Power 49 LFTN-05Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage 5Reference

Power121.0 kWReference

Maximum Power148.0 kWReference

Rated RPM2200Reference

Torque680.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil change600 hReference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,200 rpmReference

Emissions complianceStage VReference

Engine torque at rated speed680 NMReference

Interval for engine oil change600 hReference

Transmission

20-speed five-speed power shiftReference

continuously-variable transmissionReference

TransmissionHi TechReference

Typefive-speed power shiftReference

Gears20 forward and reverseReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

forward and reverse options20x20Reference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed centerReference

Rear valves2 to 5Reference

Pump flow73.1 lpmReference

Pump flow90.1 lpmReference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Pump flow199.8 lpmReference

Rear lift7749 kgReference

Front lift3059 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1890Reference

Engine RPM540E@1522Reference

Engine RPM1000@1897Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase266 cmReference

Weight6500 kgReference

Front tire480/65R28Reference

Rear tire600/65R38Reference

Standard tires (ag)Front: 480/65R28. Rear: 600/65R38Reference

Optional tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Length515 cmReference

Width255 cmReference

Height (cab)295 cmReference

Operating weight6500 kgReference

Max weight11000 kgReference

Ground clearance50 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Capacity4.9 lReference

Diesel exhaust fluid (DEF) tank45 LReference

Power

Max Power201 hp (2,000 rpm)Reference

Rated Power165 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed2,000 rpmReference

Engine Speed on Rear PTO speed1,897 rpmReference

Hydraulics

Pump Rated Output (total)73 l/minReference

Hydraulics TypeOpen center/Load SensingReference

Remote Valves9Reference

Rear Hitch maximum lift capacity78 KNReference

General

SCV controlJoystick: AvailableReference

Dimensions & weight

Overall Height2,960 mmReference

Overall Length4,726 mmReference

Overall Width2,550 mmReference

Turning radius4.5 m (without Brakes)Reference

Overall weight6,500 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
