Tractor · 2022Unverified

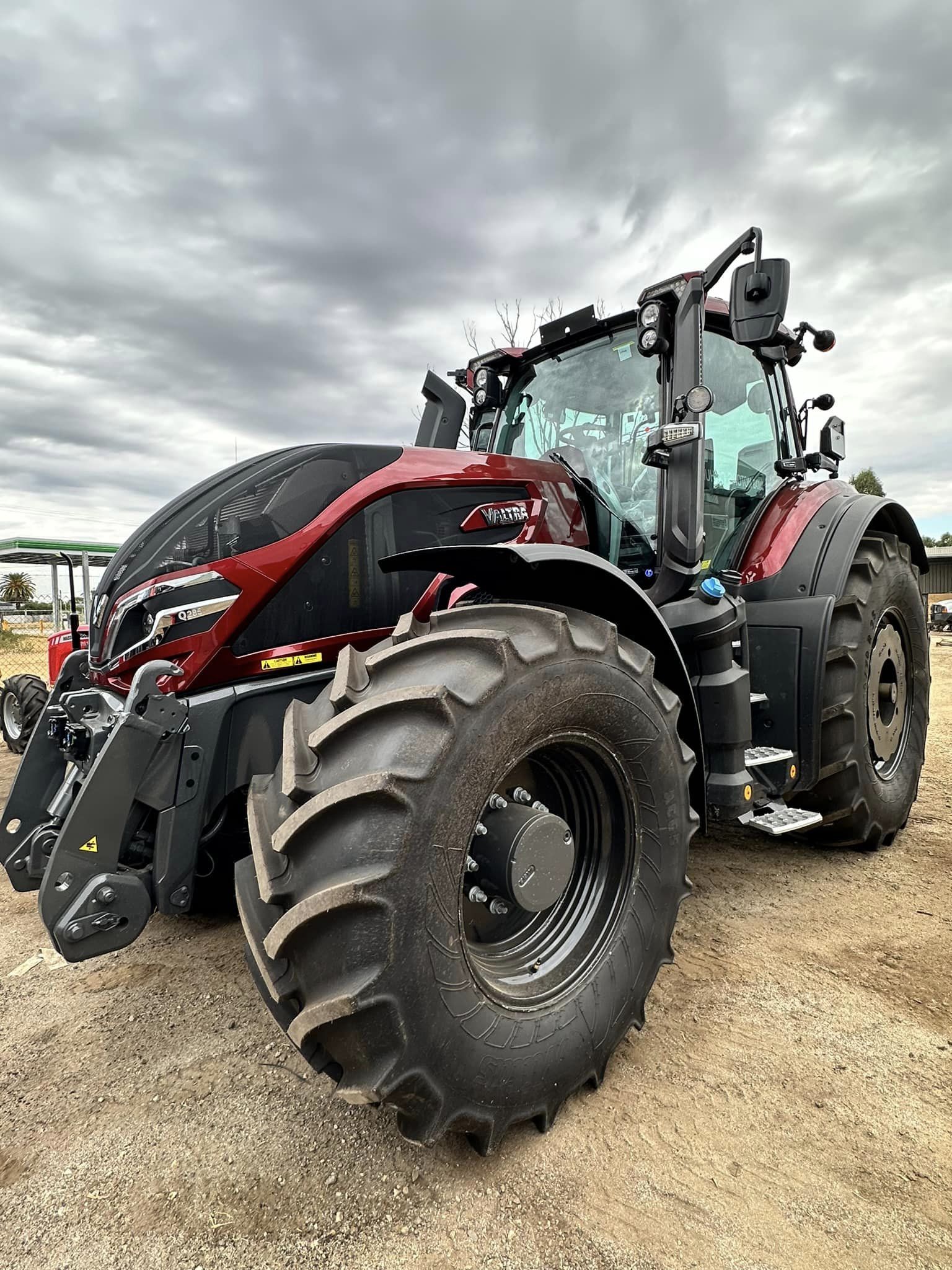

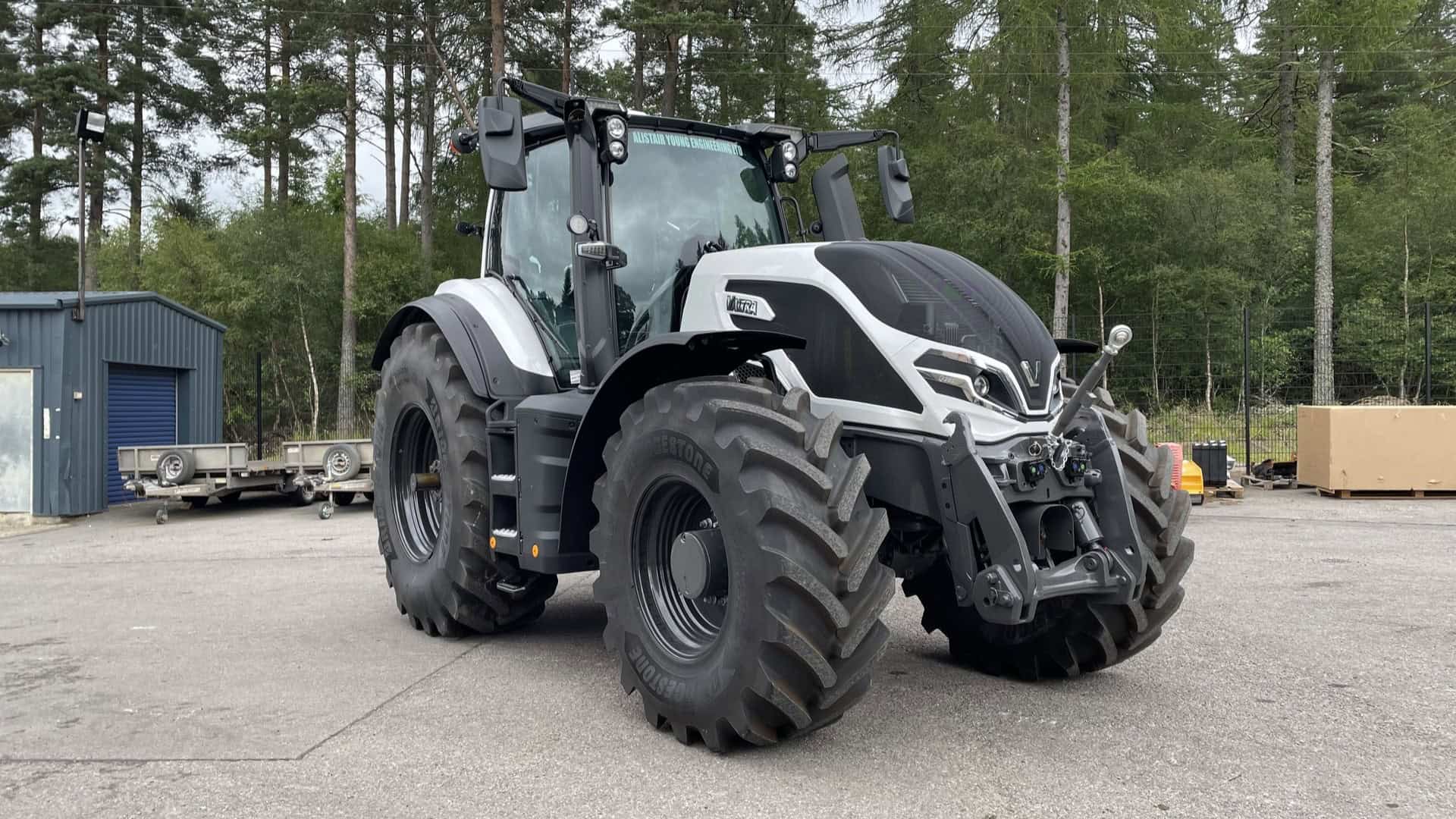

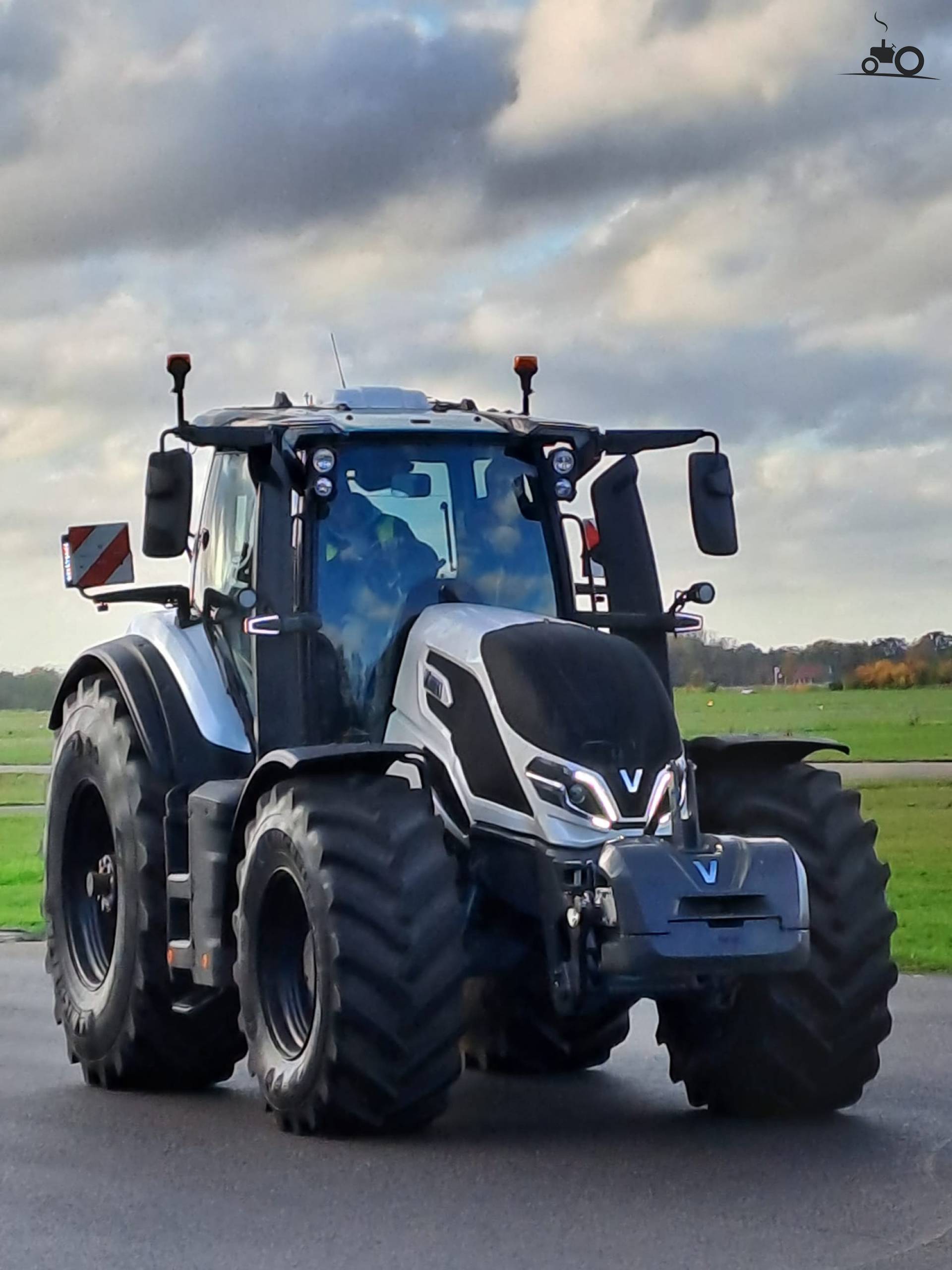

Valtra Q285
Valtra Q285 — Q Series · 282 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
282 hp
Weight
9200 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Fuel tank430.0 LReference
Exhaust fluid (DEF)45.0 LReference
Engine210.0 kWReference
AGCO Power 74 LFTN-D5Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsStage VReference
Power210.0 kWReference
Maximum Power305.0 kWReference
Rated RPM1950Reference
Idle RPM850-1950Reference
Torque1280.2 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil change600 hReference
Transmission
continuously-variable transmissionReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed-center load sensingReference
Rear valves4 or 5Reference
Front valves2 to 4Reference
Pump flow199.8 lpmReference
SCV flow120.0 lpmReference
SCV flow140.0 lpmReference
Rear lift9687 kgReference
Front lift4282 kgReference
Rear PTOindependentReference
Rear PTO Type540E/1000E/1000Reference
Engine RPM540E@1577Reference
Engine RPM1000@1882Reference
Engine RPM1000E@1605Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1900Reference
Dimensions
Wheelbase305 cmReference
Weight9200 kgReference
Front tire600/70R30Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 600/70R30. Rear: 710/70R42Reference
Length555 cmReference
Width255 cmReference
Height (cab)333 cmReference
Operating weight9200 kgReference
Max weight16000 kgReference
Clearance (rear axle)58 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
