Tractor · 2022Unverified

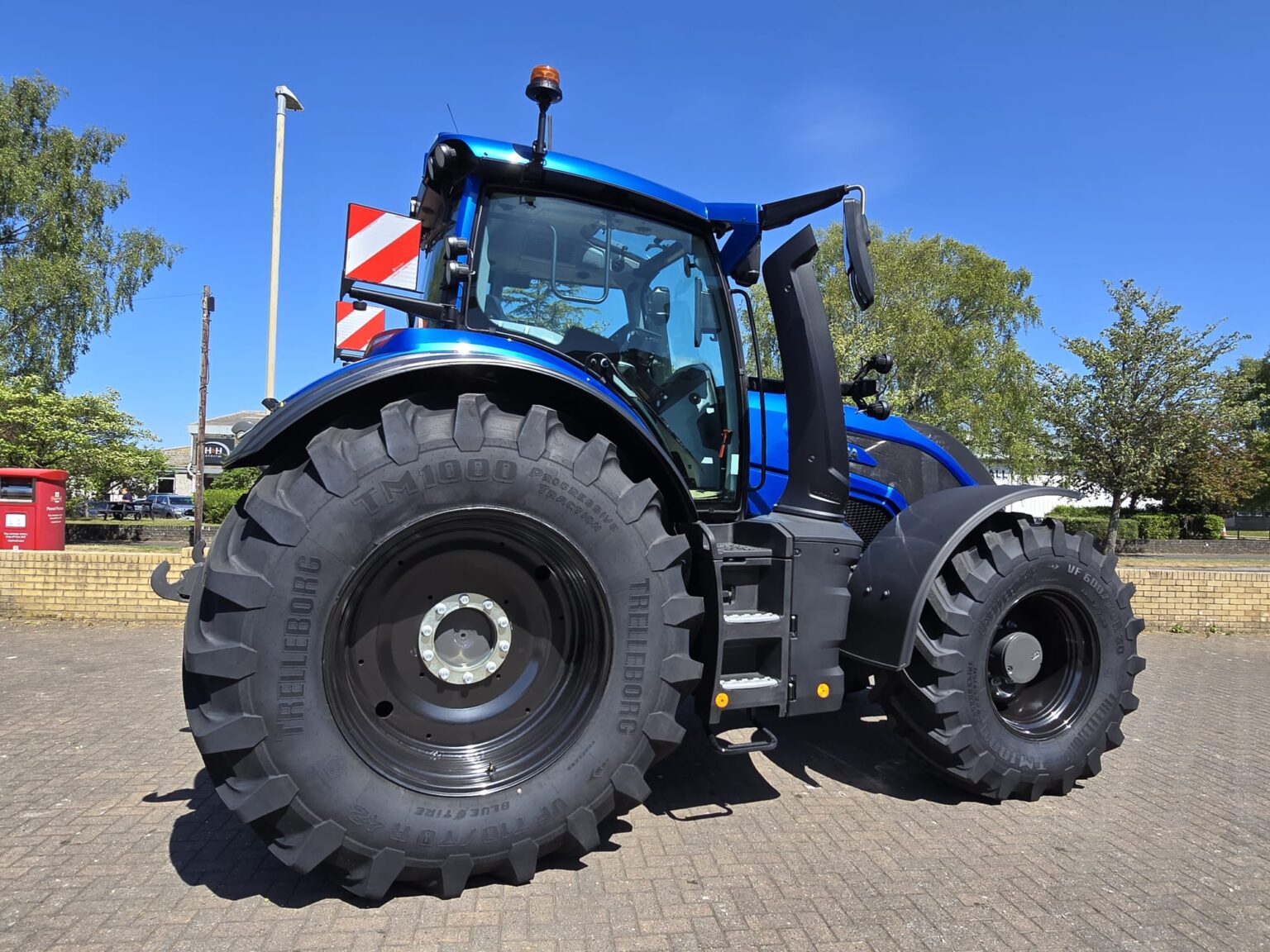

Valtra Q305

Name: Valtra Q305
Brand: Valtra

Valtra Q305 — Q Series · 300 hp. Reference specifications; pending source verification.

The Valtra Q305 is a 300 hp tractor, categorising it among the higher-powered machines in its class. It was manufactured in 2022 and is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, providing four-wheel drive. The tractor's weight is 9200 kg, and it is suited for large-scale operations covering approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

300 hp

Max power

305 hp (1,850 rpm)

Weight

9200 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

300 hp

Recorded weight

9200 kg

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Fuel tank430.0 LReference

Exhaust fluid (DEF)45.0 LReference

Engine224.0 kWReference

AGCO Power 74 LFTN-D5Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage VReference

Power224.0 kWReference

Maximum Power305.0 kWReference

Rated RPM1950Reference

Idle RPM850-1950Reference

Torque1280.2 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil change600 hReference

Fuel TypeDieselReference

No of Cylinders6Reference

Rated engine speed1,950 rpmReference

Emissions complianceStage VReference

Engine torque at rated speed1,280 NMReference

Interval for engine oil change600 hReference

Transmission

continuously-variable transmissionReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionsCVTReference

forward speed range0 - 53 km/hReference

reverse speed range0 - 38 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeclosed-center load sensingReference

Rear valves4 or 5Reference

Front valves2 to 4Reference

Pump flow199.8 lpmReference

SCV flow120.0 lpmReference

SCV flow140.0 lpmReference

Rear lift9687 kgReference

Front lift4282 kgReference

Rear PTOindependentReference

Rear PTO Type540E/1000E/1000Reference

Engine RPM540E@1577Reference

Engine RPM1000@1882Reference

Engine RPM1000E@1605Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1900Reference

Dimensions

Wheelbase305 cmReference

Weight9200 kgReference

Front tire600/70R30Reference

Rear tire710/70R42Reference

Standard tires (ag)Front: 600/70R30. Rear: 710/70R42Reference

Length555 cmReference

Width255 cmReference

Height (cab)333 cmReference

Operating weight9200 kgReference

Max weight16000 kgReference

Clearance (rear axle)58 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity7.4 lReference

Diesel exhaust fluid (DEF) tank45 LReference

Power

Max Power305 hp (1,850 rpm)Reference

Rated Power305 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Front PTO PowerTRUEReference

Engine Speed on Rear PTO speed1,882 rpmReference

Engine Speed on Front PTO speed1,900 rpmReference

General

Cruise controlAvailableReference

Hydraulics

Pump Rated Output (total)200 l/minReference

Hydraulics TypeClosed center Load SensingReference

Remote Valves9Reference

Rear Hitch maximum lift capacity100 KNReference

Dimensions & weight

Overall Height3,337 mmReference

Overall Length5,556 mmReference

Overall Width2,615 mmReference

Ground Clearance565 mmReference

Turning radius6.75 m (without Brakes)Reference

Overall weight9,200 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
