Tractor · 2008Unverified

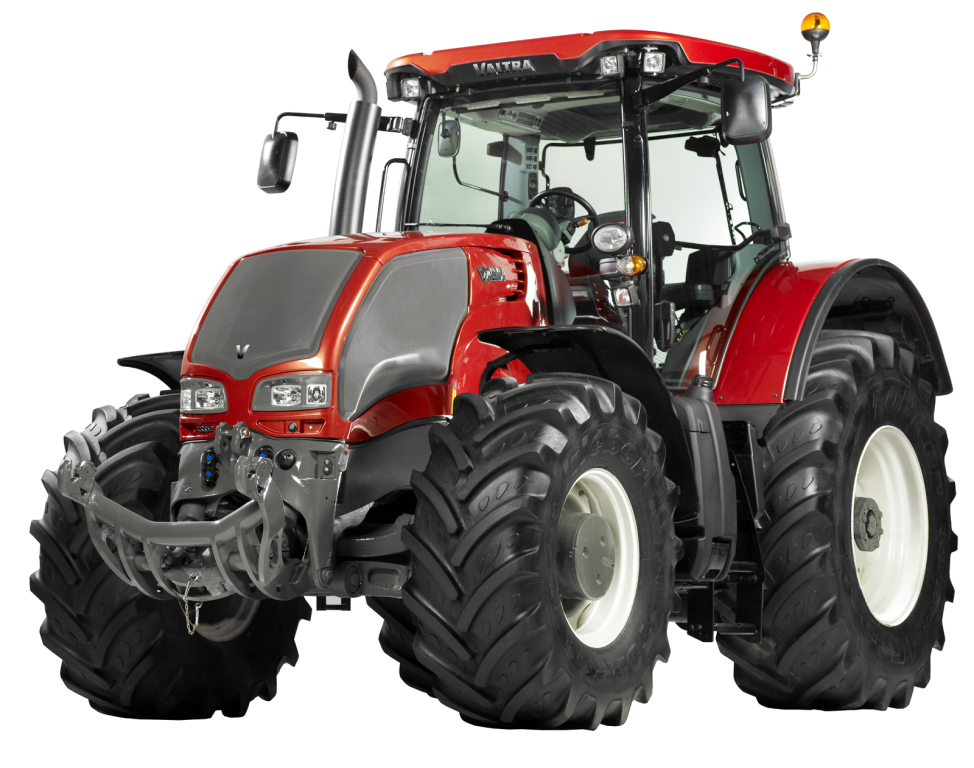

Valtra S232

Name: Valtra S232
Brand: Valtra

Valtra S232 — S Series · 237 hp. Reference specifications; pending source verification.

The Valtra S232 is a tractor with an engine rating of 237 horsepower, positioning it in the higher-powered segment of its class. Manufactured from 2008 to 2011, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. With four-wheel drive, the tractor weighs approximately 10300 kilograms and is suited for tasks involving around 600 to 1500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

237 hp

Max power

266 hp

Weight

10300 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

237 hp

Recorded weight

10300 kg

Production years

2008-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

SisuDiesel 8.4L 6-cyl dieselReference

Fuel tank590.1 LReference

Exhaust fluid (DEF)29.9 LReference

Engine176.7 kWReference

SisuDiesel 84 CTA 4VReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

Power176.7 kWReference

Maximum Power198.4 kWReference

Rated RPM2200Reference

Torque1185.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed396.4 kgReference

Bore and stroke4.37x5.71 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously-variable transmissionReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionscontinuously-variable transmission, infinite-F and infinite-RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Front valves0 to 2Reference

Pump flow199.8 lpmReference

Rear TypeIV/IIIReference

Rear lift11999 kgReference

Front lift5000 kgReference

Rear PTOindependentReference

Rear PTO Type540E/1000E/1000 (1.375)Reference

Engine RPM540E@1589Reference

Engine RPM1000E@1589Reference

Engine RPM1000@2031Reference

Dimensions

Wheelbase310 cmReference

Weight10300 kgReference

Front tire600/70R28Reference

Rear tire650/85R38Reference

Standard tires (ag)Front: 600/70R28. Rear: 650/85R38Reference

Length486 cmReference

Width255 cmReference

Height (cab)315 cmReference

Operating weight10300 kgReference

Ground clearance47 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelValtra (a part of AGCO)Reference

SCV controlJoystickReference

Capacities

Capacity512.6 ciReference

Diesel exhaust fluid (DEF) tank29.9 LReference

Power

Max Power266 hpReference

Rated Power237 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,031 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeclosed center load sensingReference

Remote Valves4 to 6 valvesReference

Rear Hitch category (SAE designation)Category IV/IIIReference

Rear Hitch maximum lift capacity11,999.8 kgReference

Dimensions & weight

Height Over Cab315.7 cmReference

Overall Length486.9 cmReference

Overall Width255 cmReference

Overall weight10,300.2 kgReference

Wheels & tyres

Rear Wheel Type650/85R38Reference

Front Wheel Type600/70R28Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
