Tractor · 2014Unverified

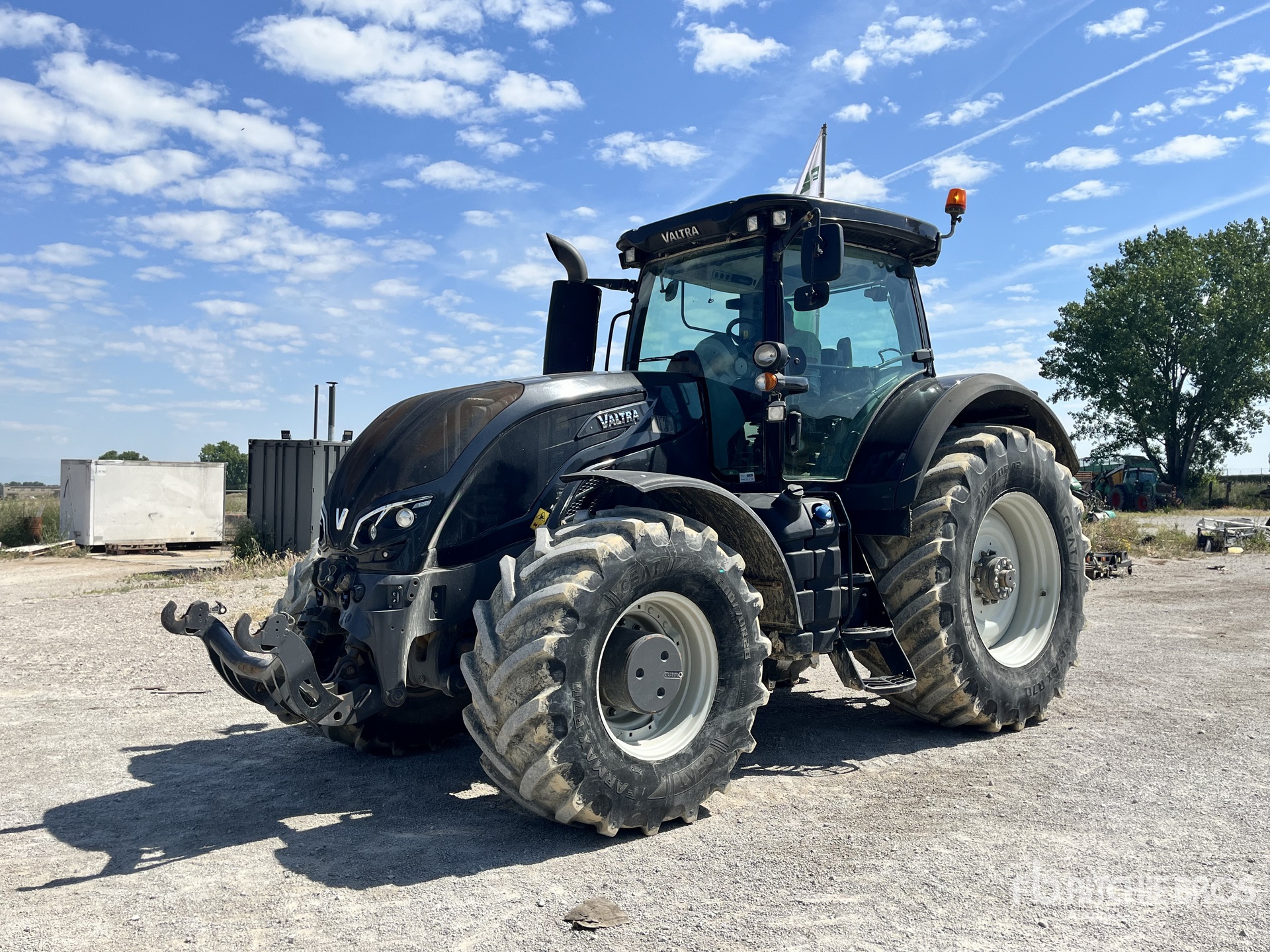

Valtra S274
Valtra S274 — Model year 2014-20182019-2025 · 266 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
266 hp
Weight
10300 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 8.4L 6-cyl dieselReference
Fuel tank629.8 LReference
Exhaust fluid (DEF)60.2 LReference
Engine198.4 kWReference
AGCO Power 84 AWFReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsStage 4Reference
Power198.4 kWReference
Maximum Power213.3 kWReference
Torque1220.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Rear valves4 to 6Reference
Front valves0 to 2Reference
Pump flow205.1 lpmReference
Rear TypeIV/IIIReference
Rear lift11999 kgReference
Front lift5000 kgReference
Rear PTOindependentReference
Rear PTO Type540E/1000Reference
Rear PTO Type1000E/1000Reference
Engine RPM540E@1600Reference
Engine RPM1000E@1600Reference
Engine RPM1000@2030Reference
Dimensions
Wheelbase310 cmReference
Weight10300 kgReference
Front tire600/70R28Reference
Rear tire650/85R38Reference
Standard tires (ag)Front: 600/70R28. Rear: 650/85R38Reference
Length486 cmReference
Width255 cmReference
Height (cab)338 cmReference
Operating weight10300 kgReference
Ground clearance47 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
