Tractor · 2011Unverified

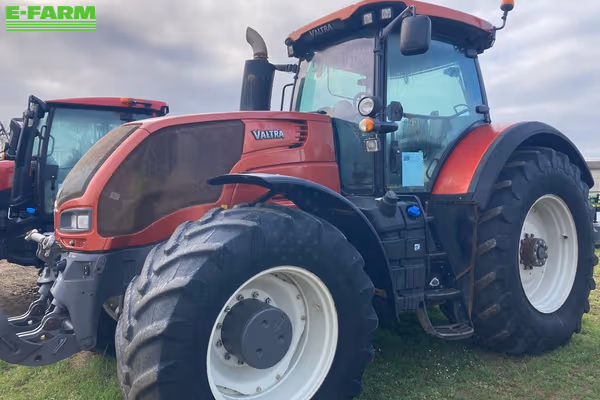

Valtra S293

Name: Valtra S293
Brand: Valtra

Valtra S293 — S Series · 316 hp. Reference specifications; pending source verification.

The Valtra S293 is a tractor, rated at 316 hp, categorising it as a high-powered machine in its class. It was manufactured between 2011 and 2013. The tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through four-wheel drive. Its listed weight is 10300 kg, making it suitable for working on areas of around 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

316 hp

Max power

316 hp

Weight

10300 kg

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

316 hp

Recorded weight

10300 kg

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

SisuDiesel 8.4L 6-cyl dieselReference

Fuel tank609.8 LReference

Exhaust fluid (DEF)60.2 LReference

Engine235.6 kWReference

SisuDiesel 84 AWI-4VReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsStage 3BReference

Power235.6 kWReference

Torque1455.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Emissions complianceStage 3BReference

Engine torque at rated speed486.7 kgReference

Bore and stroke4.37x5.71 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously-variable transmissionReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionscontinuously-variable transmission, infinite-F and infinite-RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Front valves0 to 2Reference

Pump flow199.8 lpmReference

Rear TypeIV/IIIReference

Rear lift11999 kgReference

Front lift5000 kgReference

Rear PTOindependentReference

Rear PTO Type1000/1000E (1.375)Reference

Engine RPM1000E@1600Reference

Engine RPM1000@2031Reference

Dimensions

Wheelbase310 cmReference

Weight10300 kgReference

Front tire620/65R34Reference

Rear tire710/75R42Reference

Standard tires (ag)Front: 620/65R34. Rear: 710/75R42Reference

Length486 cmReference

Width255 cmReference

Height (cab)338 cmReference

Operating weight10300 kgReference

Ground clearance47 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelValtra (a part of AGCO)Reference

Capacities

Capacity512.6 ciReference

Diesel exhaust fluid (DEF) tank60.2 LReference

Power

Max Power316 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,031 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeclosed center load sensingReference

Remote Valves4 to 6 valvesReference

Rear Hitch category (SAE designation)Category IV/IIIReference

Rear Hitch maximum lift capacity11,999.8 kgReference

Dimensions & weight

Height Over Cab338.3 cmReference

Overall Length486.9 cmReference

Overall Width255 cmReference

Overall weight10,300.2 kgReference

Wheels & tyres

Rear Wheel Type710/75R42Reference

Front Wheel Type620/65R34Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
