Tractor · 2014Unverified

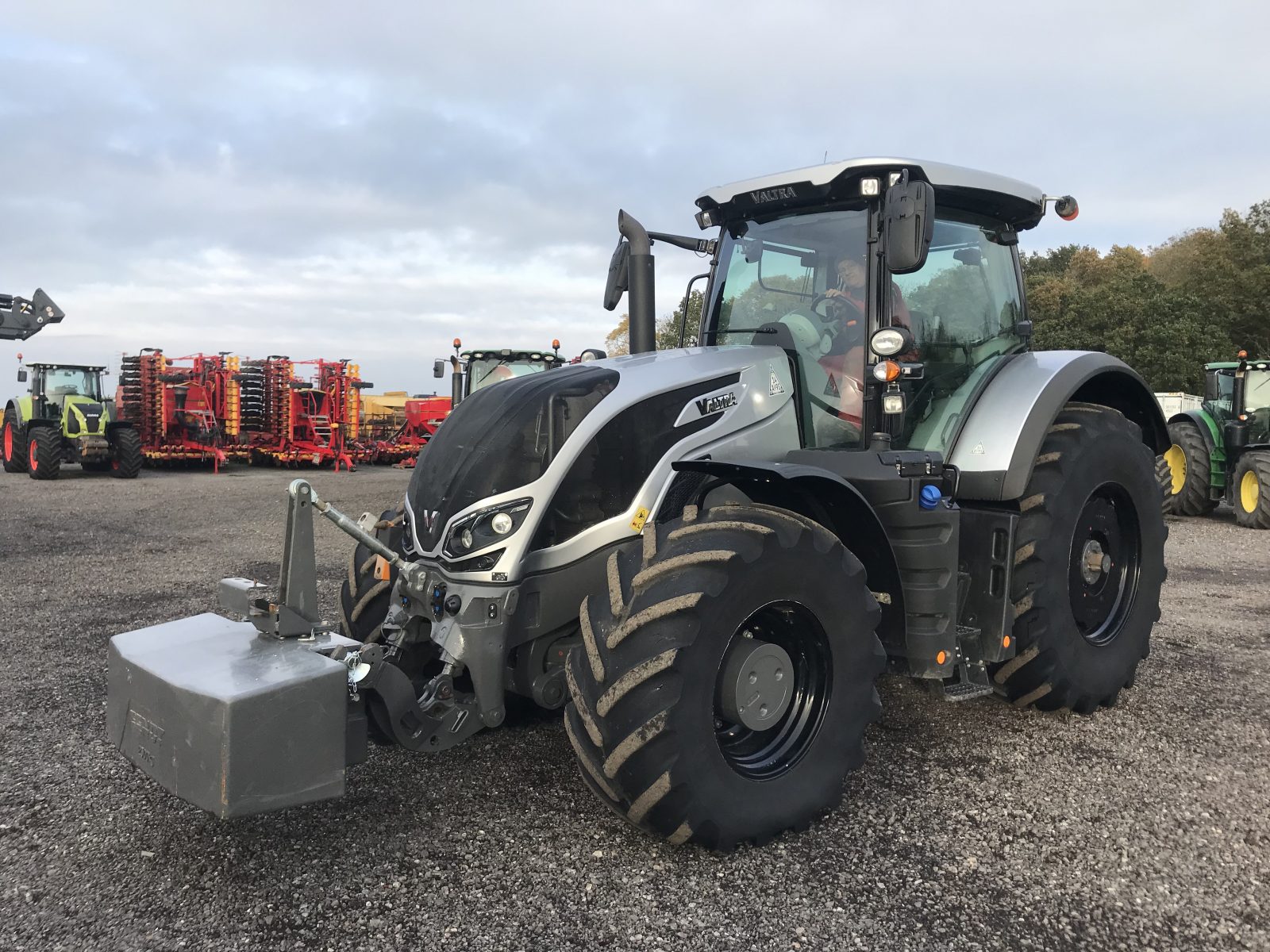

Valtra S324

Name: Valtra S324
Brand: Valtra

Valtra S324 — Model year 2014-20182019-2025 · 316 hp. Reference specifications; pending source verification.

The Valtra S324 is a tractor with a rated power of 316 hp, positioning it at the higher power end of its class. Production of this model spanned the period from 2014 to 2025. It is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive. The tractor has an operating weight of 10300 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

316 hp

Weight

10300 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

316 hp

Recorded weight

10300 kg

Production years

2014-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 8.4L 6-cyl dieselReference

Fuel tank629.8 LReference

Exhaust fluid (DEF)60.2 LReference

Engine235.6 kWReference

AGCO Power 84 AWFReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsStage 4Reference

Power235.6 kWReference

Maximum Power257.3 kWReference

Torque1389.9 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-variable transmissionReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valves4 to 6Reference

Front valves0 to 2Reference

Pump flow205.1 lpmReference

Rear TypeIV/IIIReference

Rear lift11999 kgReference

Front lift5000 kgReference

Rear PTOindependentReference

Rear PTO Type540E/1000Reference

Rear PTO Type1000E/1000Reference

Engine RPM540E@1600Reference

Engine RPM1000E@1600Reference

Engine RPM1000@2030Reference

Dimensions

Wheelbase310 cmReference

Weight10300 kgReference

Front tire620/65R34Reference

Rear tire710/75R42Reference

Standard tires (ag)Front: 620/65R34. Rear: 710/75R42Reference

Length486 cmReference

Width255 cmReference

Height (cab)338 cmReference

Operating weight10300 kgReference

Ground clearance47 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
