Tractor · 2002Unverified

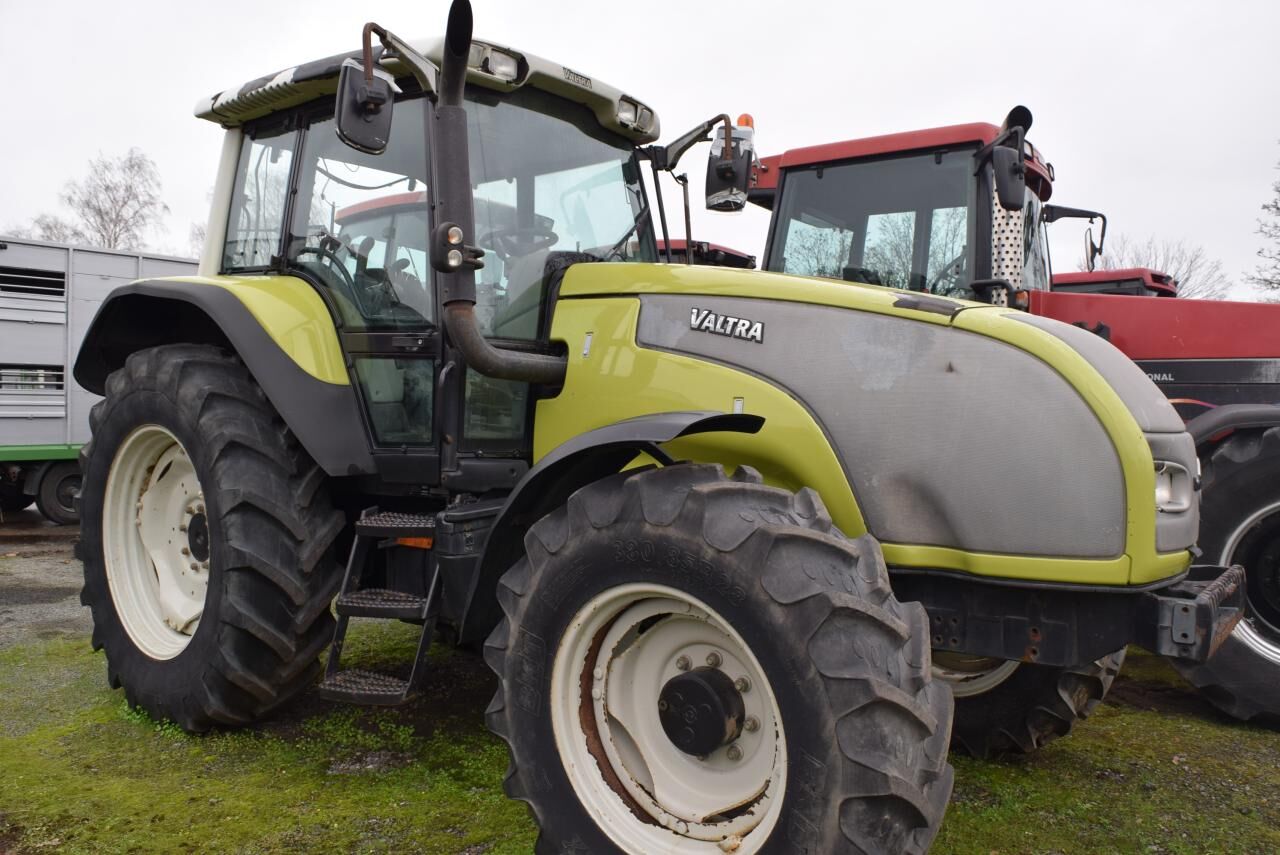

Valtra T120

Name: Valtra T120
Brand: Valtra

Valtra T120 — Model year 2002-20042004-2007 · 120 hp. Reference specifications; pending source verification.

The Valtra T120 is a high-powered tractor, rated at 120 horsepower, making it one of the more powerful models in its class. Manufactured from 2002 to 2007, this tractor is equipped with a 6-cylinder, turbocharged diesel engine, liquid-cooled, driving through a four-wheel drive system with a powershift transmission. Its listed weight is 5530 kg, with a capacity for use on areas of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Weight

5530 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

120 hp

Recorded weight

5530 kg

Transmissions

36-speed 3-speed power shift

Production years

2002-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtraReference

Row-Crop tractorReference

Built in Suolahti, FinlandReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Sisu Diesel 6.6L 6-cyl dieselReference

Fuel tank165.0 LReference

Engine (gross)89.5 kWReference

Sisu Diesel 620 DSREReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Power (gross)89.5 kWReference

Cooling systemviscous fanReference

Rated RPM2200Reference

Torque502.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Starter power3.6 kWReference

Transmission

36-speed 3-speed power shiftReference

Type3-speed power shiftReference

Gears36 forward and reverseReference

Clutchwet discReference

Three speed power shift with power shuttle.Reference

PTO & Hydraulics

Typeload sensingReference

Pressure196.0 barReference

Valves2 to 4Reference

Total flow90.1 lpmReference

Rear TypeIIIReference

Rear lift (at ends)7700 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type540E/1000Reference

Engine RPM540@1874Reference

Engine RPM540E@ 1539Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase274 cmReference

Weight5530 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length514 cmReference

Width233 cmReference

Height (cab)295 cmReference

Height (exhaust)290 cmReference

Clearance (front axle)55 cmReference

Clearance (rear axle)53 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
